product name

1694842 Murray 107.249070, 2-Bin Bagger

Model: 1694842

Save
Part Not Listed?Part Not Listed?

product name

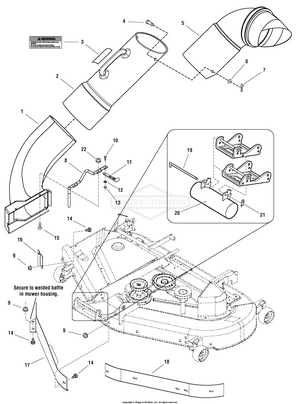

Chute & Baffles Group

...
...
1
ADAPTER, Lower Chute BS-1726359SM

...
2
CHUTE, Grass Catcher Middle BS-1726360SM

...
3
DECAL, Warning Operating Mower Without Chute BS-1732819SM

...
4
PIN, Round Head Drilled, 1/2 x 1 BS-1672365SM

...
5
CHUTE, Grass Catcher Upper Elbow BS-1726361SM

...
6
WASHER, 0.516IDX1OD BS-703853

...
7
PIN, 3/32 X 1.6 BS-703300

...
8
ROD, Chute Mounting BS-1726577SM

...
9
NUT, Hex Flange Whiz-Lock, 5/16-18 BS-703330

...
10
SCREW, Phillips, Pan Head, #10-24 x 1 BS-1960393SM

...
11
STRAP, Black Rubber, 4-13/16 Long BS-2171600SM

...
12
WASHER, 3/16 BS-1960096SM

...
13
NUT, NYLOCK, 10-24 BS-703412

...
14
BOLT, 5/16-18 X 3/4" BS-5025011X6SM

...
15
CAPSCREW, 5/16-18 BS-703408

...
16
PLATE, Chute Rod BS-1726578ASM

...
17
BAFFLE, Blowout RH, 44" BS-1728130ASM

...
17
BAFFLE, Blowout RH, 50" BS-1726364ASM

...
18
BAFFLE, Blowout LH, 44" BS-1716879ASM

...
18
BAFFLE, Blowout LH, 50" BS-1716870ASM

...
19
ROD, Weight Retainer, 3/8 x 9-21/64 BS-1704792SM

...
20
WEIGHT ASSEMBLY, Front Counter BS-1656629ASM

...
21
PIN, 5/16 X 0.375 BS-703852

...
22

Hopper, Bag & Hitch Group

...
...
1
SCREW-HEX WZ LOCK FLN BS-1960667SM

...
2
BOLT, 5/16-18X.625 G5 BS-703447

...
3
STRAP, Black Rubber BS-1665872SM

...
4
PLATE, Hopper Elbow Seal BS-1726812ASM

...
5
HOPPER TOP ASSEMBLY, (Includes Ref. Nos. 6 thru 19) BS-1726362SM

...
6
RIVET, Pop BS-1673320SM

...
7
WINDOW, Clear PVC BS-1679819SM

...
8
WASHER, 3/16 BS-1910531SM

...
9
TOP, Hopper Black Plastic BS-1726363SM

...
10
SEAL, Corner, Black Rubber BS-1679568SM

...
11
HINGE, Hopper Top BS-1726544ASM

...
12
CAPSCREW-HEX WSHR HD BS-1935450SM

...
13
SEAL, Center, Black Rubber BS-1679569SM


...
15
STIFFENER, Front Hopper BS-1726548ASM

...
16
STIFFENER, Rear, 24-13/16 Long BS-1679908ASM

...
17
LATCH, Hopper BS-1726545ASM

...
18
SCREEN, 1/4 Mesh, 20 x 28 BS-1716561SM

...
19
RETAINER, Screen, Nylon Push In Type BS-1679599SM

...
20
WASHER, 3/16 x 3/4 BS-1960096SM

...
21
DECAL, Warning Objects Thrown by Mower BS-1732819SM

...
22

...
23
PIPE & SHAFT ASSEMBLY, Support Grass Catcher BS-1726480ASM

...
24
NUT, Pipe 5/16-18 BS-1726616SM

...
25

...
26
BRACE, Tube Center BS-1726479ASM

...
27
WASHER, 5/16 BS-703302

...
28

...
29
PIN, Round Head Drilled, 1/2 x 1 BS-1672365SM

...
30
SCREW, Hex Flat Head, 5/16-18 x 2 BS-2860718SM

...
31
WASHER, 0.516IDX1OD BS-703853

...
32
PIN, 3/32 X 1.6 BS-703300

...
33
BAG & RIM ASSEMBLY, Grass Catcher BS-1726367SM

...
34
EDGING, 13-1/8 Long, PVC Tube White BS-1700864SM

...
35
HITCH ASSEMBLY, Grass Catcher BS-1726475ASM

...
36
CAPSCREW, Hex, 3/8-16 x 1-3/8 (Used on Models without Rear Weights) BS-1921968SM

...
36
CAPSCREW, 3/8-16X2 (Used on Models with Rear Weights) BS-703589

...
37
WASHER BS-704128

...
38
NUT-HEX FLANGE 1/2-1 BS-1930644SM

...
39
NUT, 3/8-16 HEX NYLOCK BS-5025394SM

...
40
CAPSCREW, Hex Head, 1/2-13 x 1-1/4 G5 BS-1921176SM

...
41
WASHER-0.375(0.41IDX1 (Used on Models without Rear Weights) BS-1960071SM

...
42
WASHER-0.312(0.33IDX1 BS-1960044SM
...
...
...
