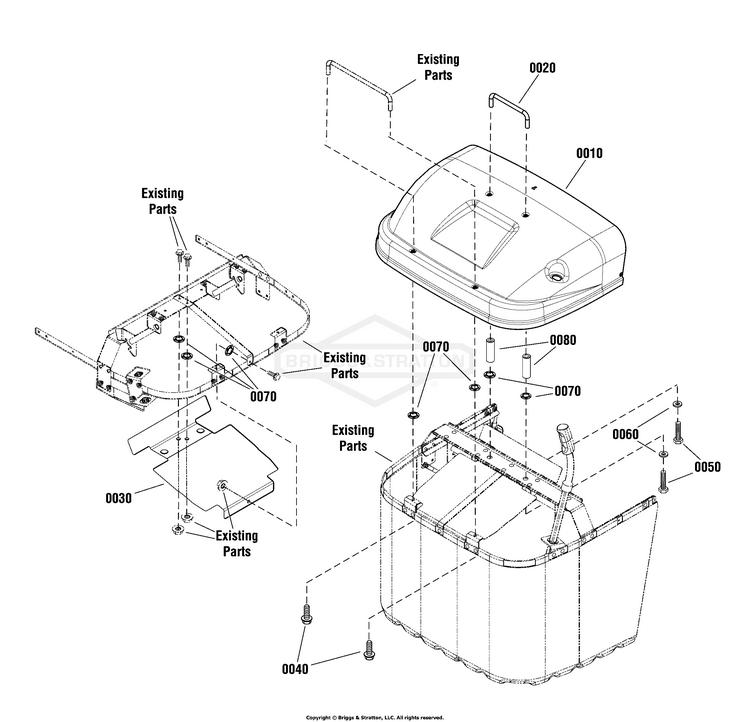

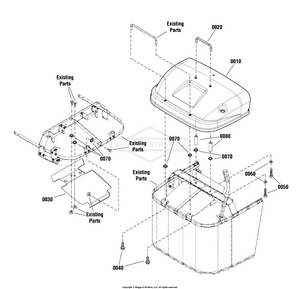

1687825 Murray - Collector Cover, Rear Discharge Lawn Tractor

Model: 1687825

Save Part Not Listed?
product name

Cover, Rear Discharge Lawn Tractor

...
...
0010
COVER,Collector BS-1758510YP
...
0020
HANDLE, Front BS-1758751BMYP
...
0030
SHIELD, Collector BS-1758826BMYP
...
0040
SCREW, 1/4-20X0.625 BS-703054
...
0050
CAPSCREW, 1/4-20 X 3 1/4 BS-708155
...
0060
WASHER, 1/4 BS-703229
...
0070
BOLT, PUSHNUT 1/4 BS-703826
...
0080
SPACER BS-5102707YP
