1687629 Murray - Headlight Kit

Model: 1687629

Save
 Part Not Listed?Part Not Listed?
product name

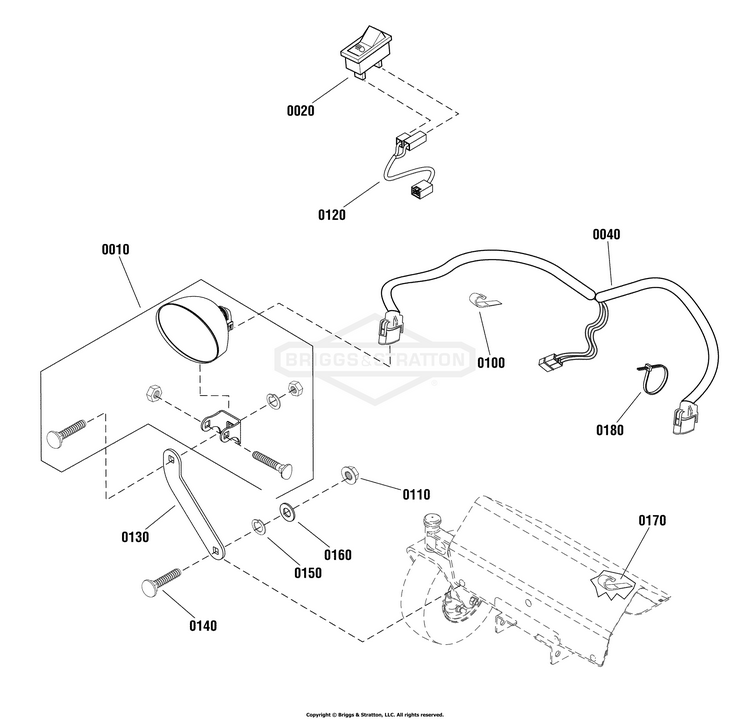

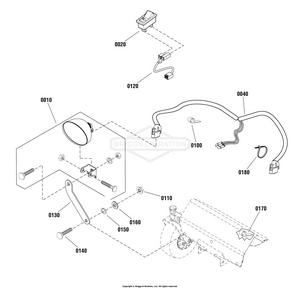

Headlight Kit - Front Mount

...
...
0010
HEADLIGHT ASSEMBLY BS-1726801SM
...
0020
SWITCH, Headlight BS-1716951SM
...
0040
LIGHT KIT, Harness BS-7104566YP
...
0100
CLIP, Wire 7/16 BS-7012652YP
...
0110
NUT, 5/16-18, GR5 BS-703409
...
0120
JUMPER KIT, Light BS-7104556YP
...
0130
BRACKET, Light BS-7301202BZYP
...
0140
BOLT, 5/16-18X1 BS-704217
...
0150
LCKWSHR,7/16,SPLIT RE BS-704007
...
0160
WASHER, FLAT, .406 BS-703590
...
0170
CLIP, Open 3/8 BS-7035638YP
...
0180
TIE, Self Locking BS-1701011SM

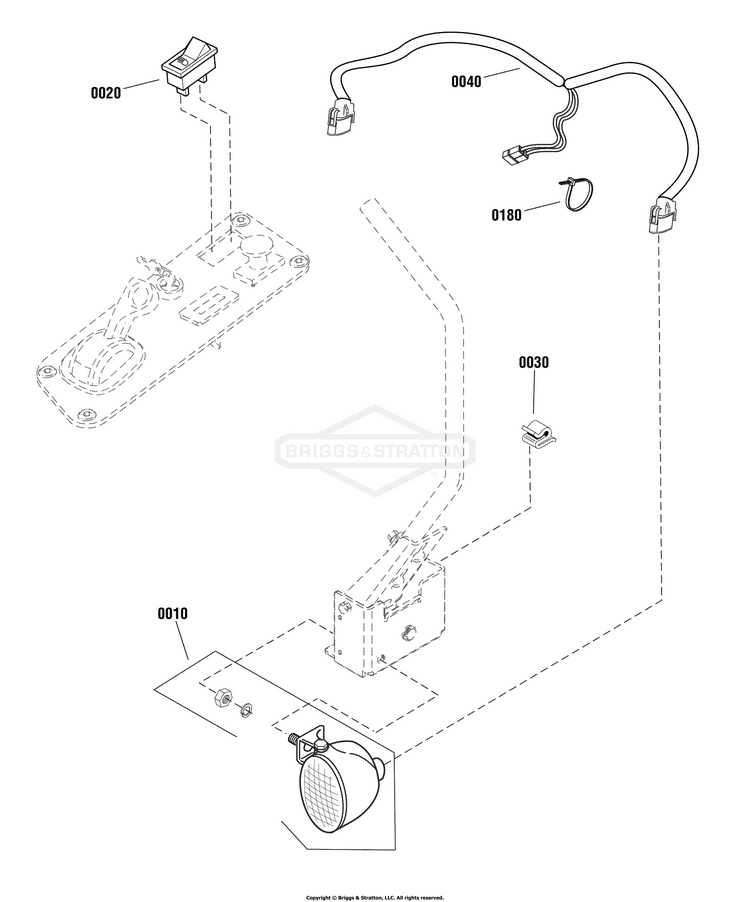

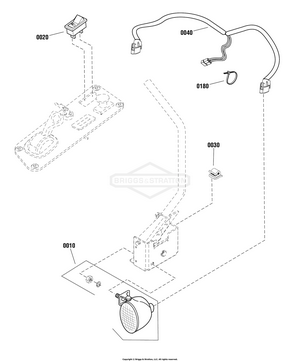

Headlight Kit - Handle Mount

...
...
0010
HEADLIGHT ASSEMBLY BS-1726801SM
...
0020
SWITCH, Headlight BS-1716951SM
...
0030
CLIP- WIRE DIA .390 BS-2172434SM
...
0040
HARNESS, Light Kit BS-7104566YP
...
0180
TIE, Self Locking BS-1701011SM
...
...
...
