1669-0 Briggs and Stratton Portable Generator 5,000 Watt

Model: 1669-0

Save Part Not Listed?
product name

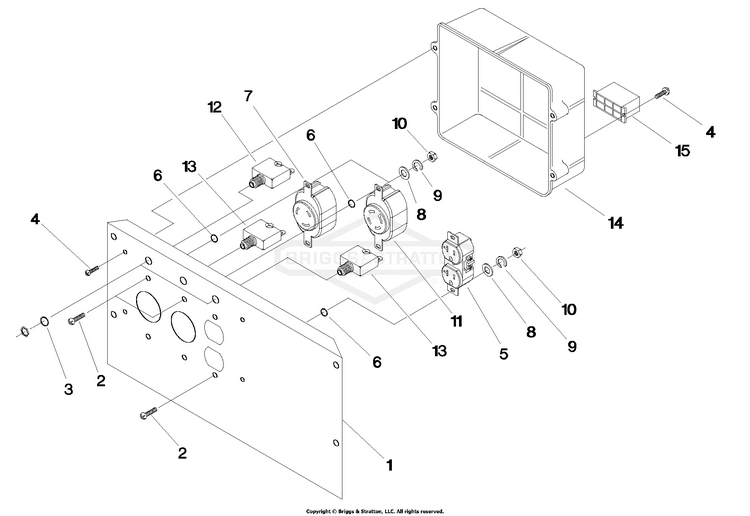

Control Panel

...
...
1
PANEL, Control BS-B81897GS
...
2
SCREW BS-75475GS
...
3
WASHER, Lock BS-82881GS
...
4
SCREW BS-82308GS
...
5
OUTLET, 120V, 20A Duplex BS-68759GS
...
6
WASHER, Lock BS-23365GS
...
7
OUTLET-120V TL30A BS-705932
...
8
WASHER BS-38150GS
...
9
WASHER BS-847333
...
10
NUT BS-51715GS
...
11
RECEPTACLE, 120/240V, 20A Twistlock BS-68867GS
...
12
BREAKER-CIRCUIT 30A BS-706178
...
13
BREAKER-CIRCUIT 20A BS-209872GS
...
14
PANEL, Control, Back, Plastic BS-81919GS
...
15
CONNECTOR, 6-Pin Female BS-22694GS

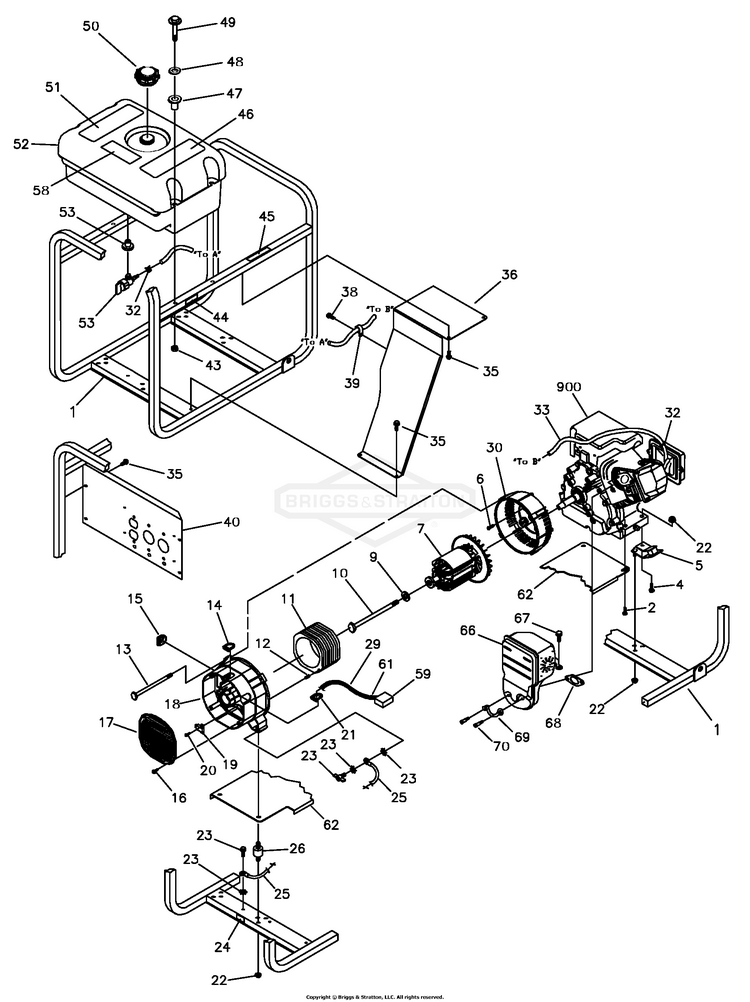

Main Unit

...
...
1
CRADLE BS-M188972GS
...
2
SCREW-HEX WSHR HD TAP BS-2828635SM
...
4
SCREW BS-76222GS
...
5
MOUNT,Vibration BS-70642GS
...
6
SCREW BS-86307GS
...
7
ASSY, Rotor BS-91844JGS
...
9
WASHER BS-96796GS
...
10
SCREW BS-47480GS
...
11
ASSY, Stator BS-91859AGS
...
12
PIN, Roll BS-81917GS
...
13
SCREW BS-86308CGS
...
14
GROMMET BS-84242GS
...
15
GROMMET, Bushing BS-67022GS
...
16
SCREW BS-74908GS
...
17
COVER, Bearing Carrier BS-B4871GS
...
18
CARRIER, Rear Bearing BS-SRV66825DGS
...
19
ASSY, Brush & Bridge Rectifier BS-91825GS
...
20
HHCS, M5-0.8 X 16 BS-49815GS
...
21
GROMMET, Bushing BS-189127GS
...
22
NUT BS-67989GS
...
23
KIT, Grounding Hardware BS-193959GS
...
24
DECAL, Ground BS-B4986GS
...
25
WIRE, Ground BS-195373GS
...
26
MOUNT-VIBRATION BS-194153GS
...
29
SLEEVING, Flexo BS-84409GS
...
30
HOUSING, Engine Adapter BS-66365GGS
...
32
CLAMP, Hose BS-691038
...
33
HOSE, Fuel BS-30340GS
...
35
SCREW BS-B2153GS
...
36
HEAT SHIELD, Muffler BS-J189055GS
...
38
SCREW BS-56893GS
...
39
CLAMP,Vinyl Coated BS-55934GGS
...
40
PANEL, Control BS-189449GS
...
43
NUT, Lock BS-77395GS
...
44
DECAL, Fuel Shut-Off BS-73054GS
...
45
DECAL, Caution Hot Muffler BS-77816GS
...
46
DECAL, Start Instruction BS-189235GS
...
47
GROMMET, Mounting Tank BS-188973GS
...
48
WASHER BS-189155GS
...
49
SCREW BS-189286GS
...
50
CAP, Fuel BS-90878GS
...
51
DECAL, Danger BS-194799GS
...
52
ASSY,Tank, Fuel BS-193961GS
...
53
KIT, Fuel Valve BS-192980GS
...
58
DECAL, Gas Tank Fill BS-188333GS
...
59
HOUSING, Fasten - On Tab, 6 Pin BS-22695GS
...
61
TIE WRAP BS-28739AGS
...
62
PLATE, Stiffener BS-M190018GS
...
66
MUFFLER BS-794949
...
67
SCREW BS-695312
...
68
GASKET, Exhaust BS-695398
...
69
TAB, Locking BS-695400
...
70
SCREW, Shoulder BS-695399
...
900
ENGINE BS-~NSP
...
KIT, Decals, 01669 Not Illustrated BS-193960GS
...
OIL BOTTLE Not Illustrated BS-BB3061GS
...
MANUAL, Generator Not Illustrated BS-189986GS
...
MANUAL, Engine Not Illustrated BS-275092

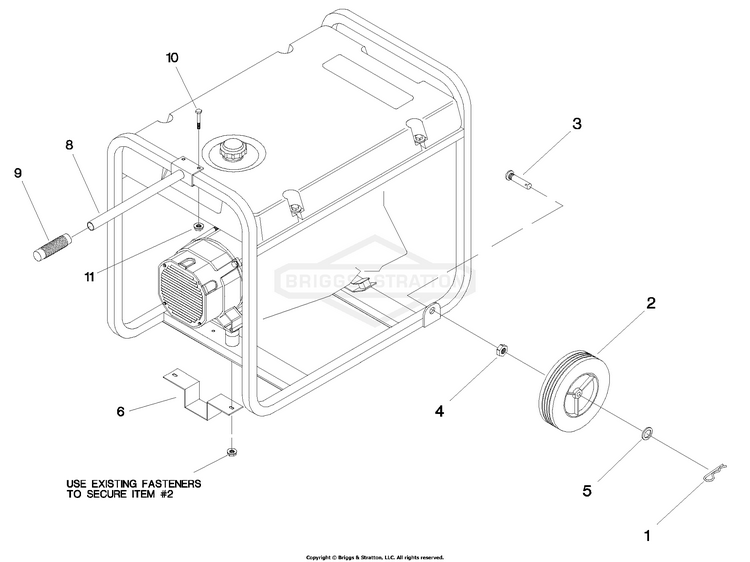

Wheel Kit

...
...
1
PIN, 3/32 X 1.6 BS-703300
...
2
WHEEL BS-197061GS
...
3
STUD,Axle BS-93728GS
...
4
JAM NUT, Lock BS-94222QGS
...
5
WASHER BS-49808GS
...
6
LEG, Mounting BS-94034GS
...
8
HANDLE, Lifting (Includes Item 9) BS-B84910GS
...
9
GRIP, Handle BS-75928GS
...
10
SCREW BS-39287GS
...
11
NUT, Lock BS-52858GS

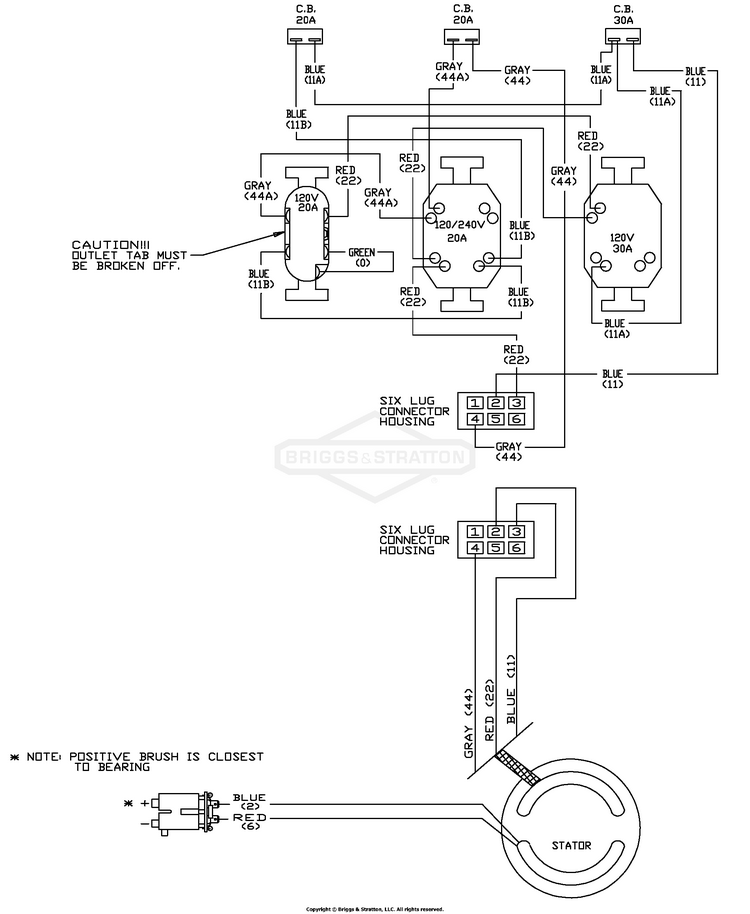

Wiring Diagram

...

No Parts Available for this Schematic

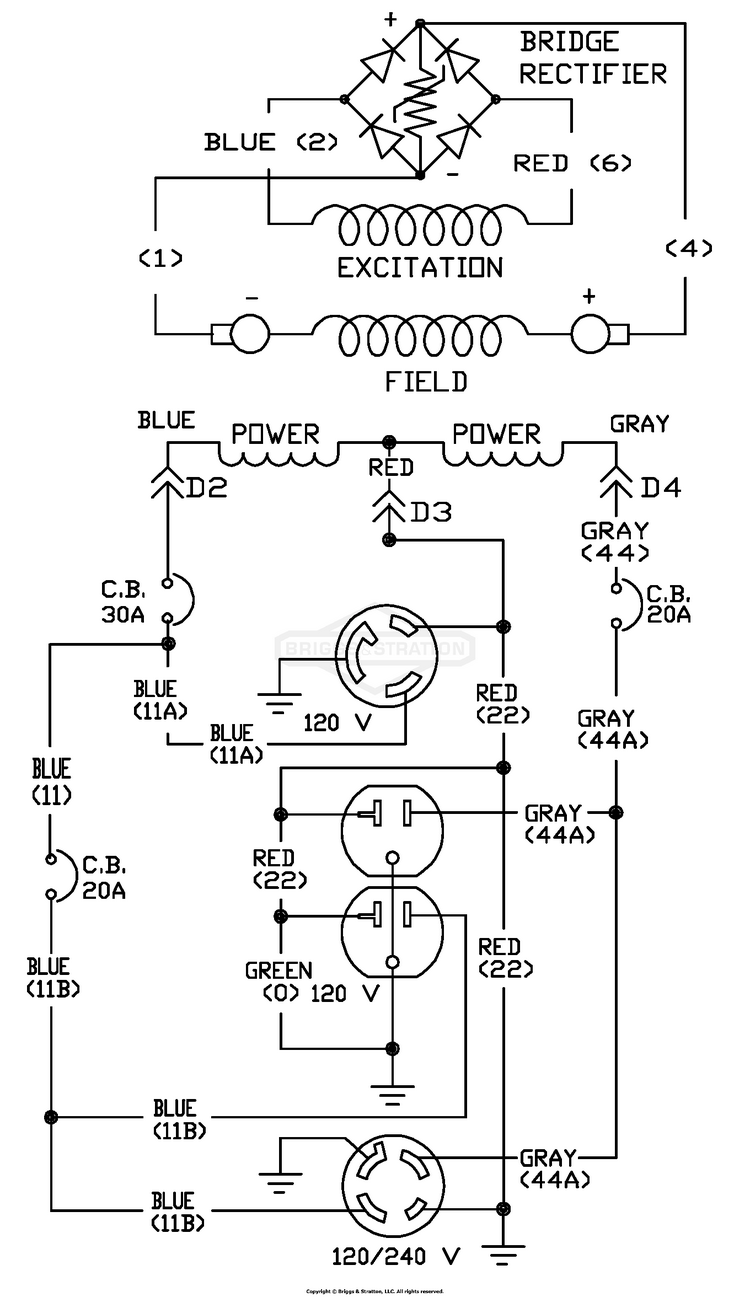

Wiring Schematic

...

No Parts Available for this Schematic
