1657-2 Briggs and Stratton Portable Generator 7,000 EXL

Model: 1657-2

Save Part Not Listed?
product name

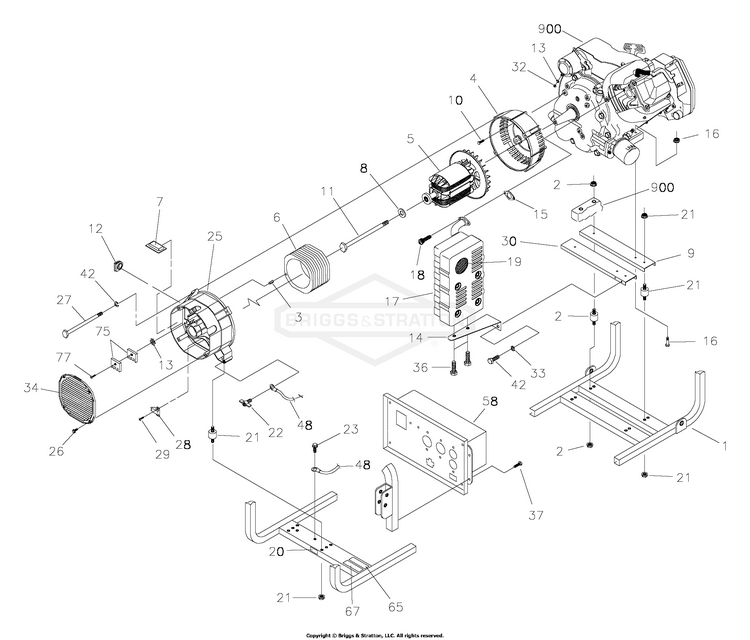

Alternator

...
...
1
CRADLE BS-M197022GS
...
2
KIT, Vibration Mount BS-194219GS
...
3
PIN, Roll 4mm x 10 BS-81917GS
...
4
HOUSING, Engine Adapter BS-92247GS
...
5
ASSY, Rotor BS-B1342GGS
...
6
ASSY, Stator BS-B1897AGS
...
7
ASSY, Power Regulator BS-84132GS
...
8
WASHER BS-96796GS
...
9
SUPPORT, Engine BS-M92531GS
...
11
HHCS, 5/16-24 x 10-5/8 Lg. BS-47481GS
...
12
GROMMET, Rubber BS-67022GS
...
15
GASKET, Muffler BS-90239GS
...
16
KIT, Engine Mounting Hardware BS-195078GS
...
17
MUFFLER BS-A7433GS
...
19
SCREEN, Spark Arrestor BS-83083GS
...
20
DECAL, Ground BS-B4986GS
...
21
KIT, Vibration Mount BS-194218GS
...
22
SCREW, Wing M6 - 1.0 x 16 BS-86494GS
...
23
SCREW BS-313085GS
...
25
CARRIER, Rear Bearing BS-SRV66825DGS
...
26
TAPTITE, M5-0.8 x 10 Lg. BS-74908GS
...
27
BOLT BS-66449LGS
...
28
ASSY, Brush Holder BS-66386GS
...
29
HHCS, M5-0.8 X 16 BS-49815GS
...
30
SUPPORT, Engine & Muffler BS-M92731GS
...
34
COVER, Bearing Carrier BS-B4871GS
...
37
SCREW, 12-14 x 7/8, Self Driller BS-B2153GS
...
48
WIRE, Ground BS-195373GS
...
58
ASSY, Control Panel (see "Control Panel") BS-191514GS
...
65
DECAL, French Neutral Ground BS-195940GS
...
67
DECAL, English Neutral Ground BS-195459GS
...
75
RECTIFIER, Battery Charge BS-65795GS
...
77
TAPTITE, M5-0.8 x 30 Lg. BS-66849CGS
...
MANUAL, Operator's Not Shown BS-193256GS
...
MANUAL, Engine Not Shown BS-A8927GS
...
CHARGER, Battery Not Shown BS-84002790
...
Front Draw Bar w/Spindles-RH Side Not Shown BS-100126
...
CABLE, Battery Charge Not Shown BS-65787GS
...
PLUG, 120V/30A Not Shown BS-100523GS
...
DECAL, Family, CA EVP Not Shown BS-199383GS
...
COVER, Storage Not Shown BS-B4767GS
...
BOTTLE, Oil Not Shown BS-BB3061GS
...
KIT, Decal Not Shown BS-193736GS
...
WRAP, CORD Optional Accessories Not Included BS-84883GS

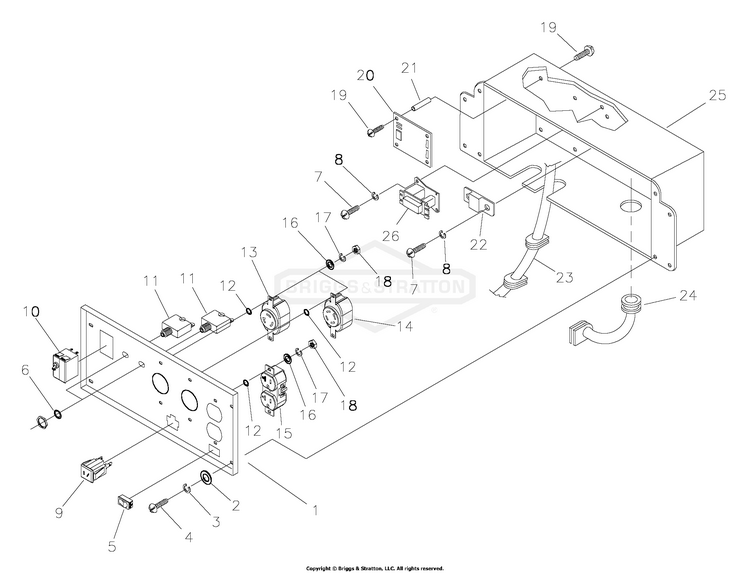

Control Panel

...
...
1
PANEL, Control BS-M191486GS
...
5
SWITCH,Idle Control BS-82538GS
...
9
OUTLET, 12V BS-90418GS
...
10
BREAKER, Circuit, 30A, 2P BS-191480AGS
...
11
BREAKER-CIRCUIT 20A BS-209872GS
...
13
OUTLET-120V TL30A BS-705932
...
14
OUTLET, 120V/240V, 30A Locking BS-43437GS
...
15
OUTLET, 120V,20A Duplex BS-68759GS
...
20
BOARD, System Control BS-83970GS
...
21
STAND-OFF,3/4" Hex BS-64525GS
...
22
BRECKER.Circuit, 12V, 10A (auto) BS-87962GS
...
23
ASSY, Wire Harness BS-84335GS
...
24
GROMMET, Rubber Conn. BS-84134GS
...
25
BOX, Control Panel BS-B92069GS
...
26
TRANSFORMER, Idle Control BS-84028GS

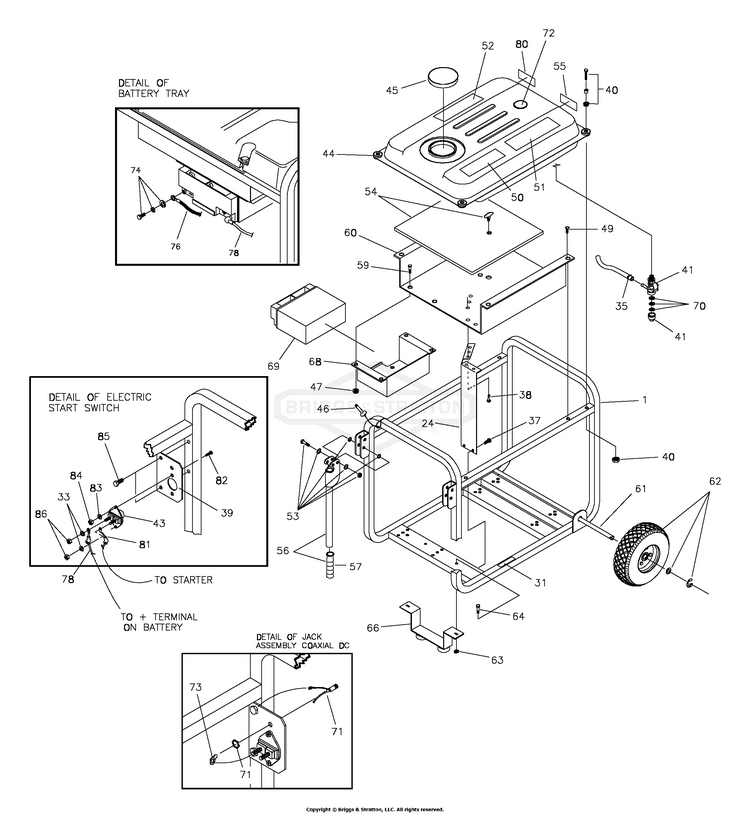

Frame

...
...
1
CRADLE BS-M197022GS
...
24
SHIELD, Heat BS-194390GS
...
31
DECAL, Hot Muffler BS-191436GS
...
35
CLAMP, Hose BS-189568GS
...
37
SCREW, 12-14 x 7/8, Self Driller BS-B2153GS
...
38
CRIMPTITE,10-24 x 1/2" BS-56893GS
...
39
PLATE, Mounting Switch BS-188987GS
...
40
KIT, Hardware Tank (Includes Qty of 4) BS-193661GS
...
41
VALVE-FUEL BS-310573GS
...
43
SWITCH, Starter BS-77282GS
...
44
ASSY, Tank, Fuel (Includes Items 41, 50, 51, 52 & 72) BS-193771GS
...
45
CAP, Fuel BS-189135GS
...
46
PIN, with Lanyard BS-B4135GS
...
47
NUT, Flange Lock - M6 BS-77395GS
...
49
CLIP, Tree BS-B1797GS
...
50
DECAL, Fuel Level BS-188333GS
...
51
DECAL, Danger BS-194984GS
...
52
DECAL, Start Instructions BS-94480GS
...
53
KIT, Handle Hardware Folddown BS-194034GS
...
54
KIT, Insulation w/Clip BS-194448GS
...
55
DECAL, Fuel Shut Off BS-197797GS
...
56
HANDLE (Includes Item 57) BS-B193200GS
...
57
GRIP BS-198669GS
...
60
HEATSHIELD BS-208564GS
...
61
AXLE BS-191267GGS
...
62
KIT,Wheel BS-194509GS
...
66
KIT, SPPRT, GEN, SRV BS-193982GS
...
68
TRAY, Battery BS-195680GS
...
69
BATTERY,12V 18 AH BS-193043GS
...
70
VALVE, Fuel BS-310574GS
...
71
ASSY, Jack, DC BS-192531GS
...
72
GAUGE,Fuel BS-189136GS
...
73
LUG,5/16 #22/18 I-S BS-58359GS
...
74
KIT,Hardware Battery BS-193347GS
...
76
ASSY,Wire, #55 BS-185939HGS
...
78
ASSY,Wire, #13 BS-189302CGS
...
80
DECAL, Instruction, ES BS-189198GS
...
81
ASSY,Wire, #16 BS-189302BGS
...
85
SCREW, 10 - 16 x .68, Self Drill BS-195094GS
...
MANUAL,Operator's Not Shown BS-193256GS
...
MANUAL,Engine Not Shown BS-A8927GS
...
CHARGER, Battery Not Shown BS-84002790
...
Front Draw Bar w/Spindles-RH Side Not Shown BS-100126
...
CABLE,Battery Charge Not Shown BS-65787GS
...
PLUG,120V/30A Not Shown BS-100523GS
...
DECAL, Family, CA EVP Not Shown BS-199383GS
...
COVER, Storage Not Shown BS-B4767GS
...
BOTTLE, Oil Not Shown BS-BB3061GS
...
KIT, Decal Not Shown BS-193736GS
...
WRAP,CORD Optional Accessories Not Included BS-84883GS

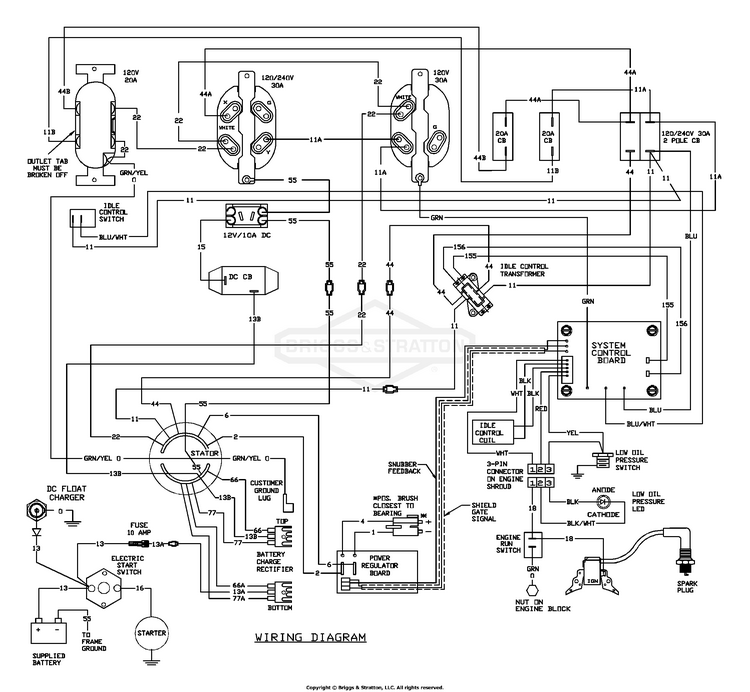

Wiring Diagram

...

No Parts Available for this Schematic

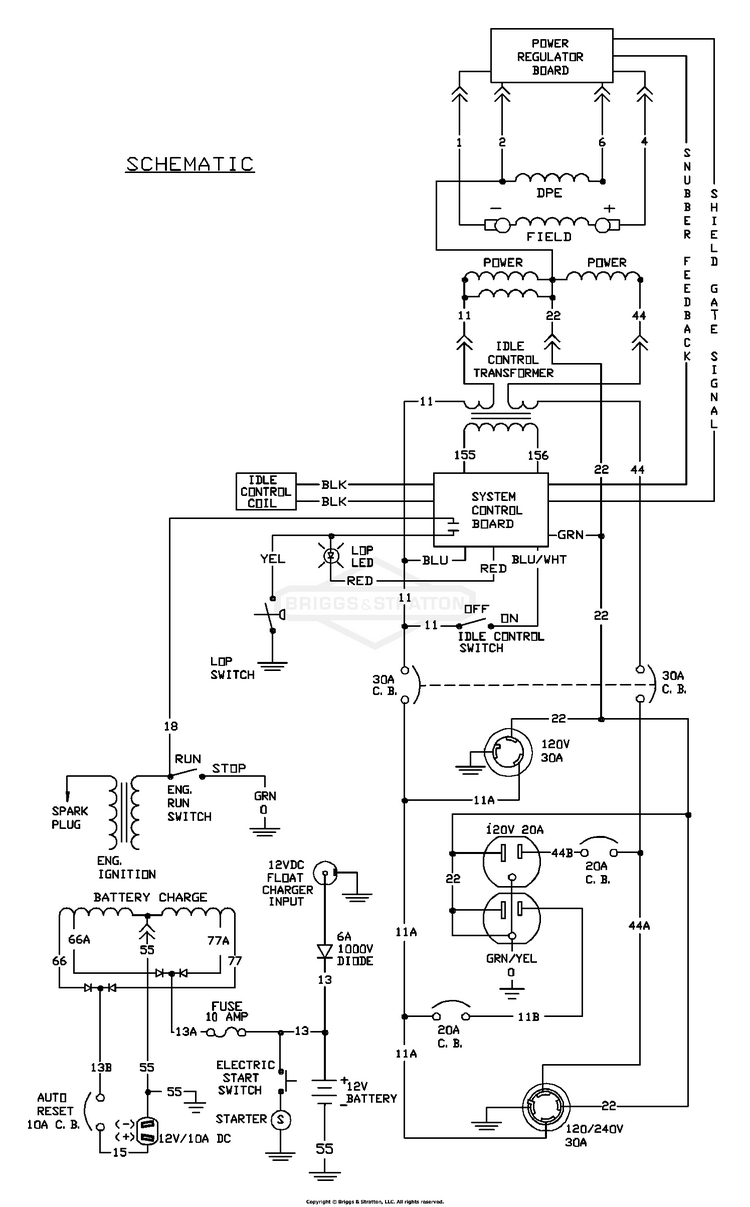

Wiring Schematic

...
