1657-0 Briggs and Stratton Portable Generator 7,000 EXL

Model: 1657-0

Save Part Not Listed?
product name

Alternator

...
...
1
CRADLE, Red BS-M197022GS
...
14
SCREW, 12-14 x 7/8, Self Driller BS-B2153GS
...
20
SCREEN, Spark Arrester BS-83083GS
...
21
HHMS, 5/16-24 x 3/4" SEMS BS-86307GS
...
22
HOUSING, Engine Adapter BS-92247GS
...
23
SUPPORT, Engine BS-A92531GS
...
24
NUT, 5/16-18 Flange Serrated BS-189160GS
...
25
WASHER, Lock - M8 BS-22129GS
...
26
MOUNT,Vibration BS-82857GS
...
27
BOLT, 5/16-18 X 1-3/4 BS-5025011X14SM
...
28
MOUNT,Vibration BS-92609GS
...
29
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
30
MUFFLER BS-A7433GS
...
31
SUPPORT, Engine & Muffler BS-M92731GS
...
32
GASKET, Muffler BS-90239GS
...
33
ASSEMBLY, Rotor BS-B1342GGS
...
34
BEARING BS-65791GS
...
35
WASHER, Special Flat - M8 BS-96796GS
...
36
HHCS, 5/16-24 x 10-5/8 BS-47481GS
...
37
ASSEMBLY, Stator BS-B1897AGS
...
38
DECAL, 1-800 BS-20566GS
...
39
SCREW, M8 - 1.25 x 20 BS-40976GS
...
40
BRACKET, Muffler BS-92532GS
...
41
CAPSCREW, M6 - 1.0 x 12mm BS-66476GS
...
42
DECAL, Control Panel BS-189779GS
...
43
ASSEMBLY, Control Box BS-92630GS
...
45
WIRE, Ground BS-195373GS
...
46
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
47
BOTTLE, Oil BS-BB3061GS
...
48
PIN, Roll 4mm x 10 BS-81917GS
...
49
DECAL, French Neutral Ground BS-76247GS
...
52
ASSEMBLY, Power Regulator BS-84132GS
...
53
GROMMET, Rubber BS-67022GS
...
54
CARRIER, Rear Bearing BS-SRV66825DGS
...
55
SCREW, M6-1.0 x 16 Wing BS-86494GS
...
56
WASHER, Shakeproof #10 BS-23762GS
...
57
ASSEMBLY, Brush Holder BS-66386GS
...
58
HHCS, M5-0.8 X 16 BS-49815GS
...
59
COVER, Bearing Carrier BS-B4871GS
...
60
TAPTITE, M5-0.8 x 10 BS-74908GS
...
62
TAPTITE, M5-0.8 x 30 BS-66849CGS
...
63
RECTIFIER, Battery Charge BS-65795GS
...
64
BOLT BS-66449LGS
...
66
WASHER BS-22097GS
...
67
MANUAL, Operators BS-189702GS
...
83
NUT, Hex, 1/4-20 BS-22127GS
...
91
MANUAL, Engine BS-A8927GS
...
99
CHARGER, Battery BS-84002790
...
100
FUEL STABILIZER, 1 oz Tube BS-189208GS
...
101
CABLE, Battery Charge BS-65787GS
...
102
PLUG, 125V 30A 3-Prong BS-100523GS
...
103
COVER, Storage BS-B4767GS
...
104
DECAL, English Neutral Ground BS-74728GS
...
105
DECAL, Ground BS-B4986GS
...
900
ENGINE BS-~NSP

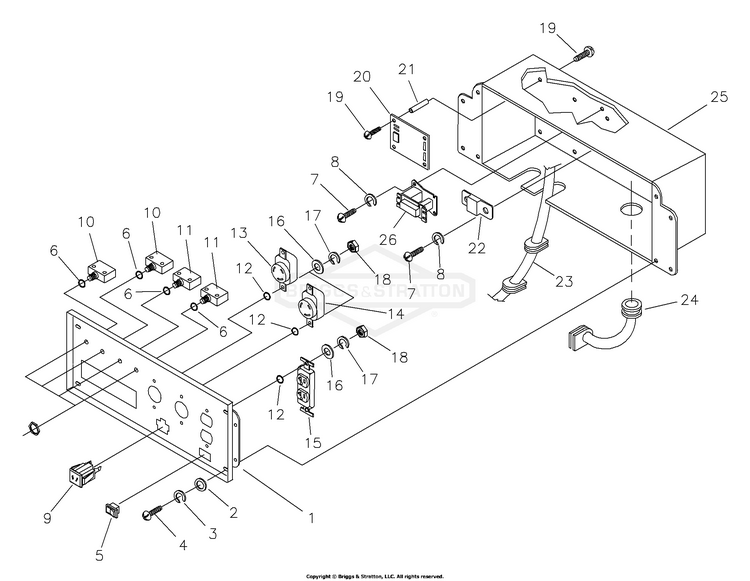

Control Panel

...
...
1
PANEL, Control BS-A92070GS
...
2
WASHER, Rivet, 3/16 BS-1910531SM
...
3
LOCK WASHER, M5 BS-49226GS
...
4
SCREW, M5-0.8 x 12mm BS-91526GS
...
5
SWITCH, Idle Control BS-82538GS
...
6
LOCK WASHER, 7/16" BS-82881GS
...
7
SCREW, M3 - 0.5 x 10mm BS-43181GS
...
8
LOCK WASHER, M3 BS-43182GS
...
9
OUTLET, 12V BS-90418GS
...
10
BREAKER-CIRCUIT 30A BS-706178
...
11
BREAKER-CIRCUIT 20A BS-209872GS
...
12
WASHER, #8 Shakeproof BS-23365GS
...
13
OUTLET-120V TL30A BS-705932
...
14
OUTLET, 120V/240V, 30A Locking BS-43437GS
...
15
OUTLET, 120V, 20A Duplex BS-68759GS
...
16
FLAT WASHER, M4 BS-43180GS
...
17
WASHER BS-847333
...
18
NUT, M4-0.7 Hex BS-51715GS
...
19
SCREW, #6-32 x 3/8" BS-64526GS
...
20
BOARD, System Control BS-83970GS
...
21
STAND-OFF, 3/4" Hex BS-64525GS
...
22
CIRCUIT BREAKER. 12V, 10A (auto) BS-87962GS
...
23
ASSEMBLY,Wire Harness BS-84335GS
...
24
GROMMET, Rubber Conn. BS-84134GS
...
25
BOX, Control Panel BS-B92069GS
...
26
TRANSFORMER, Idle Control BS-84028GS

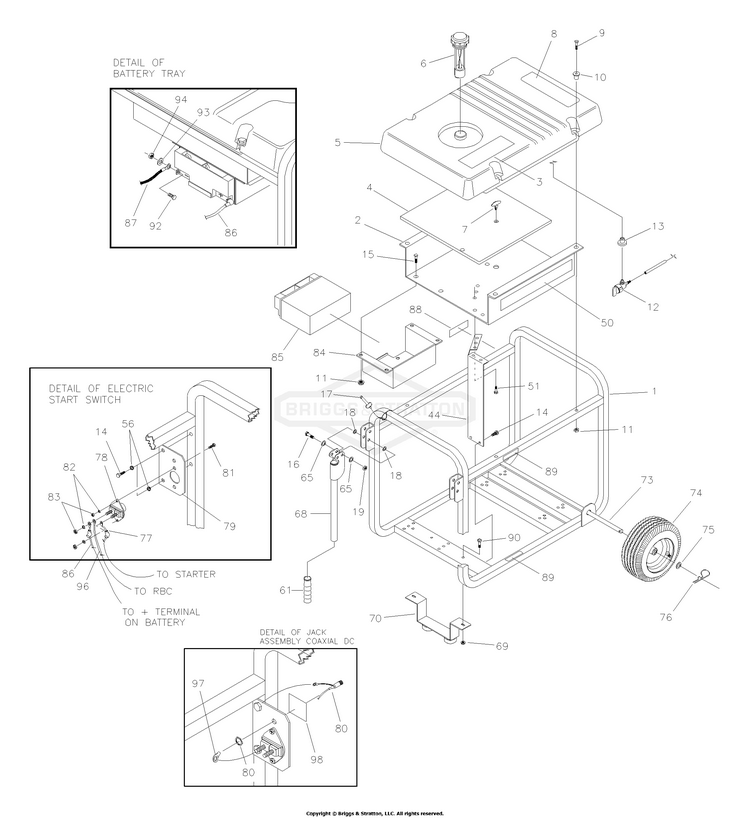

Frame

...
...
1
CRADLE, Red BS-M197022GS
...
2
SHIELD, Heat BS-192982GS
...
3
DECAL, Danger, French BS-194984GS
...
4
INSULATION, #2-1/4" Thick BS-92665GS
...
5
ASSY,Tank, Fuel BS-193500GS
...
6
CAP, with Gauge, Fuel BS-B4363GS
...
7
CLIP, Insulation BS-85000GS
...
8
DECAL, Start Instructions BS-94480GS
...
9
HHMS, M6-1.0 x 60, SEMS BS-78831BGS
...
10
GROMMET,Tank BS-83465GS
...
11
NUT, Flange Lock - M6 BS-77395GS
...
12
Kit, Valve BS-192980GS
...
13
Kit, Valve BS-192980GS
...
14
SCREW, 12-14 x 7/8, Self Driller BS-B2153GS
...
15
HHCS, M6 - 1.0 x 12 BS-43116GS
...
16
HHCS, M8 - 1.25 x 50 BS-51731GS
...
17
PIN, with Lanyard BS-B4135GS
...
18
WASHER, Nylon BS-187104GS
...
19
NUT, M8 Nylok BS-49820GS
...
44
SHIELD, Heat BS-192983GS
...
50
DECAL, Heat Shield BS-186798GS
...
51
CRIMPTITE, 10-24 x 1/2" BS-56893GS
...
56
WASHER, Shakeproof #10 BS-23762GS
...
61
GRIP BS-198669GS
...
65
WASHER BS-703350
...
68
HANDLE BS-BB5586GS
...
70
KIT, SPPRT, GEN, SRV BS-193982GS
...
73
AXLE BS-191267GGS
...
74
WHEEL BS-209636GS
...
75
WASHER, 5/8" SAE BS-5025281SM
...
76
PIN, 3/32 X 1.6 BS-703300
...
77
WIRE ASM, #16 BS-189302BGS
...
78
SWITCH, Starter BS-77282GS
...
79
BRACKET, Switch BS-188987GS
...
80
ASSY, Jack, DC BS-192531GS
...
81
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
82
WASHER BS-22097GS
...
83
NUT, Hex, 1/4-20 BS-22127GS
...
84
TRAY, Battery BS-192985GS
...
85
BATTERY, 12V BS-193043GS
...
86
WIRE ASM, #13 BS-189302CGS
...
87
WIRE ASM, #55 BS-185939HGS
...
88
DECAL, Fuel Shut-Off BS-73054GS
...
89
DECAL, Hot Muffler BS-77816GS
...
90
CAPSCREW M8-1.25X16 BS-703988
...
92
HHCS, M5 - 0.8 x 12 BS-52618GS
...
93
WASHER, Rivet, 3/16 BS-1910531SM
...
94
NUT, M5 Flange Hex BS-52856GS
...
96
WIRE ASM, #13 BS-96113GS
...
97
LUG, 5/16 #22/18 I-S BS-58359GS
...
98
DECAL, Instruction, ES BS-189198GS

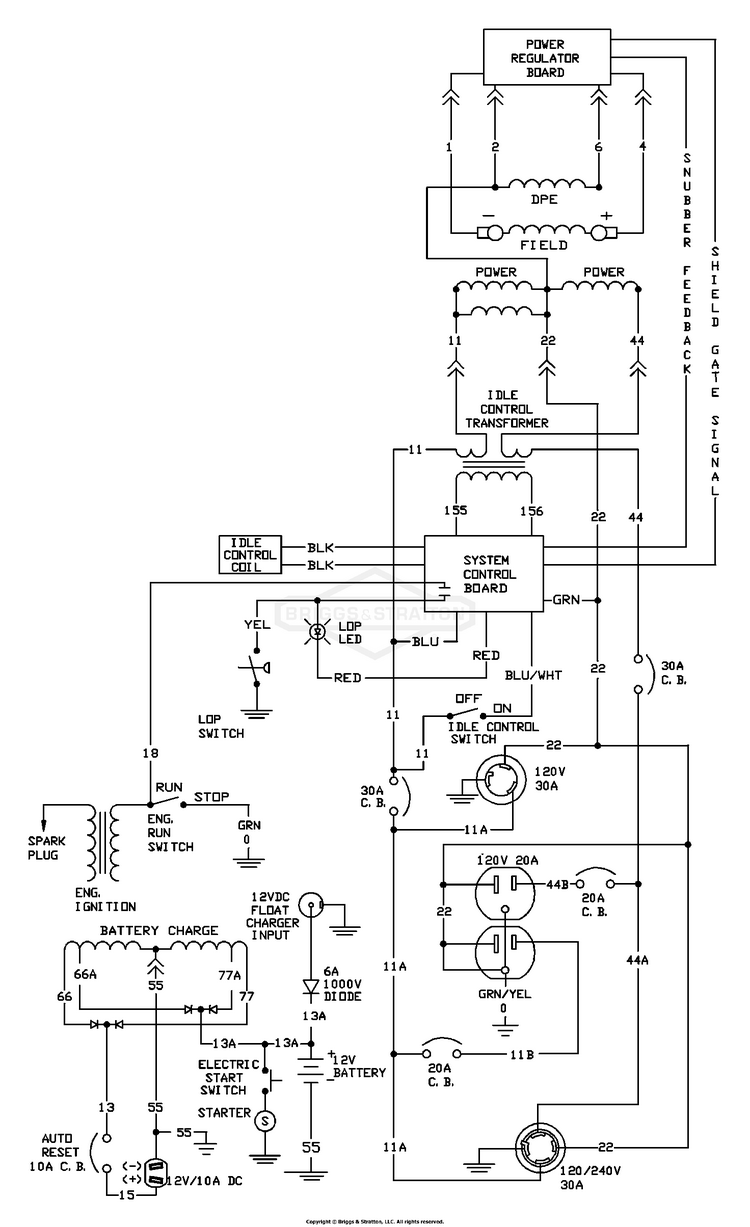

Wiring Diagram

...

No Parts Available for this Schematic

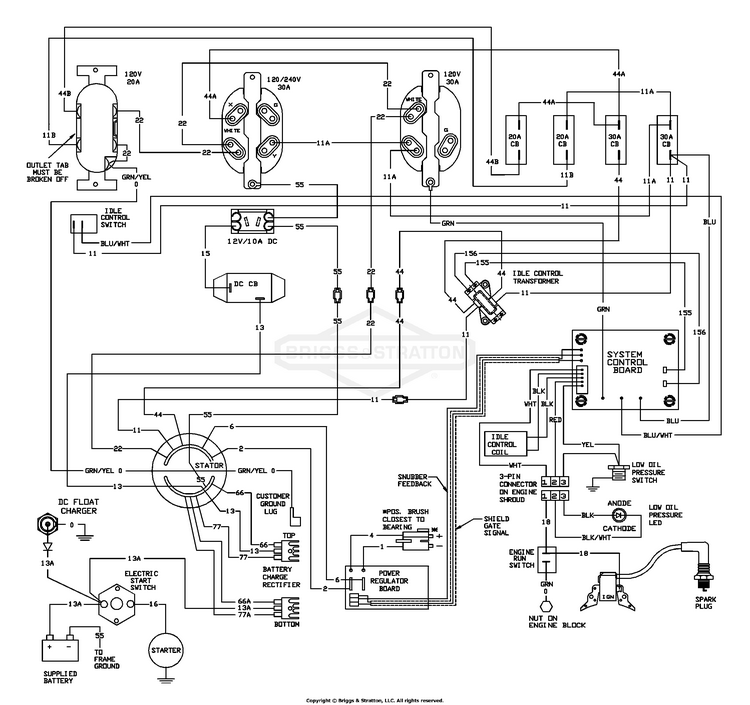

Wiring Schematic

...
