1655-2 Briggs and Stratton Portable Generator 5,500 Watt WheelHouse

Model: 1655-2

Save Part Not Listed?
product name

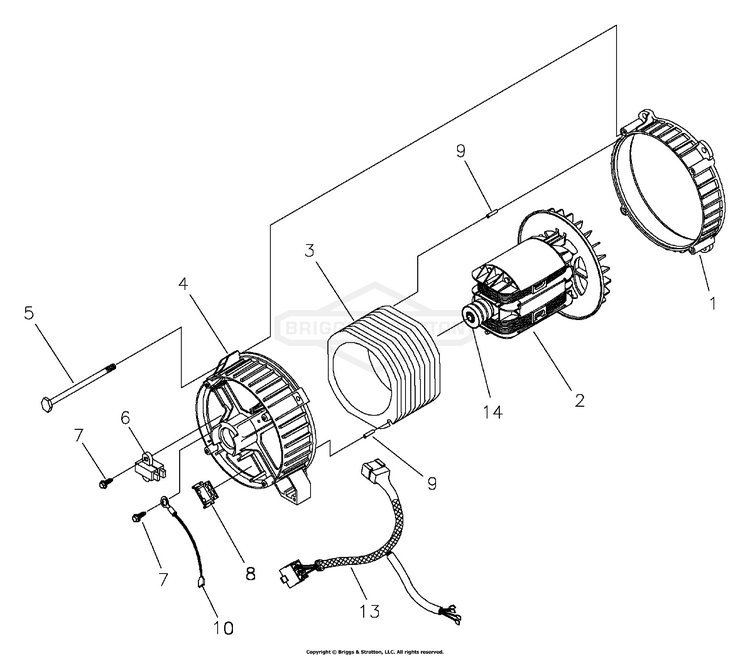

Alternator

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR BS-190032GS
...
3
STATOR BS-190079AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
HHCS, M6 - 1.0 x 140 SEMS BS-86308HGS
...
6
ASSY, Holder, Rectifier/Brush BS-91825GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
RECEPTACLE, 6 pin BS-22694GS
...
9
PIN, Roll, 4mm x 10 BS-81917GS
...
10
ASSY,Wire, Ground BS-193428AGS
...
13
HARNESS,Wire, Power BS-191569GS
...
14
BEARING BS-65791GS
...
O-RING, 1.375 N I.D. X .093 IN BS-189197GS

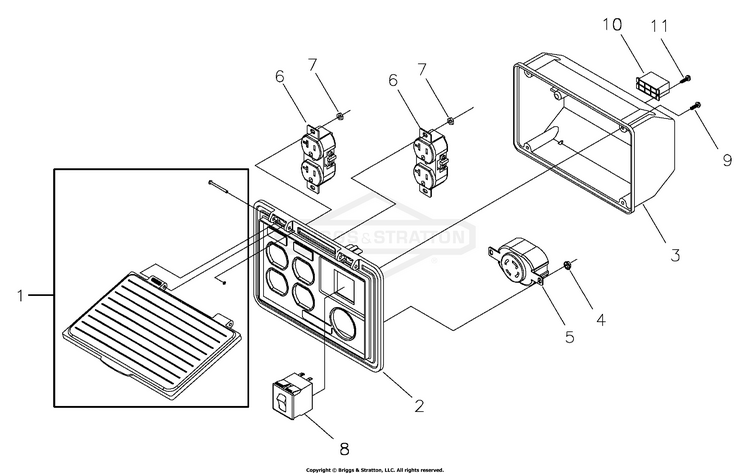

Control Panel

...
...
1
ASSY, Control Lid Panel BS-195112GS
...
2
CONTROL PANEL, Compact BS-196506AGS
...
3
BOX, Rear Cover BS-192274GS
...
5
OUTLET, 120/240V Locking, 30A BS-43437GS
...
6
OUTLET, 120V, 20A, Duplex BS-68759GS
...
8
BREAKER, 20A, 2P BS-191479AGS
...
9
SCREW,Tapping, 3.5 x 14 BS-192241GS
...
10
HOUSING, Receptacle BS-22694GS
...
11
SCREW,Tapping, STC 3 x 18 BS-82308GS

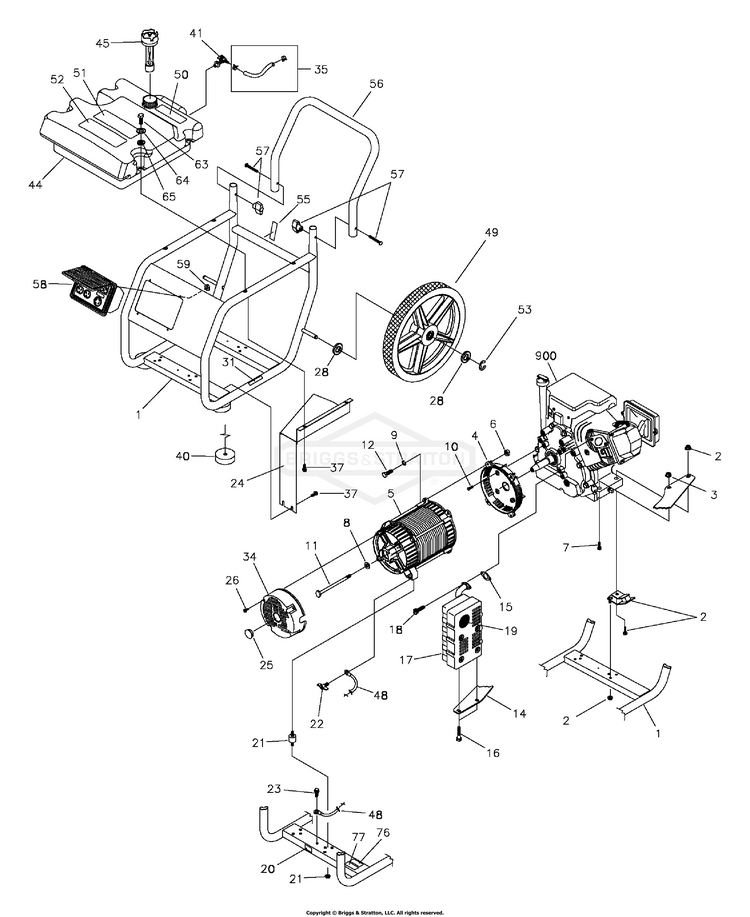

Main Unit

...
...
1
ASSY, Frame BS-200119GS
...
2
KIT, Mount,Vibration 45° BS-194150GS
...
4
HOUSING, Engine Adapter BS-190220GS
...
5
ASSY,Alternator (see "Alternator") BS-~NSP
...
8
WASHER, M8 Flat BS-96796GS
...
10
SHCS, 3/8-16 x 1.00 Lg. BS-190274BGS
...
11
HHCS, 5/16-24 x 7.44 BS-187365FGS
...
14
BRACKET, Muffler BS-189009GS
...
15
GASKET, Exhaust BS-695398
...
17
MUFFLER BS-189008GS
...
18
SCREW, 5/16 - 18 x 3/4" BS-60706GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
DECAL, Ground, Green BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
SCREW,Wing M6 - 1.0 x 16 BS-86494GS
...
23
SCREW BS-313085GS
...
24
SHIELD, Heat BS-192793GS
...
25
CAP BS-191190GS
...
26
SCREW, M5-0.8 x 20 Taptite BS-66849AGS
...
31
DECAL, Hot Muffler BS-191436GS
...
34
COVER, Bearing Carrier BS-197462GS
...
35
LINE, Fuel BS-791745
...
37
SCREW, 12 -24 x 1/2 THD Forming BS-192376GS
...
40
KIT,Vibe Mount with Hardware BS-192553GS
...
41
KIT,Valve,Tank BS-192980GS
...
44
ASSY,Tank, Fuel (Includes Items 41, 50, 51 & 52) BS-196814GS
...
45
CAP, Fuel Gauge BS-189420GS
...
48
WIRE, Ground BS-195373GS
...
49
KIT,Wheel BS-193548GS
...
50
DECAL, Fuel Tank BS-188333GS
...
51
DECAL, Danger, French BS-194984GS
...
52
DECAL, Start Instructions, French BS-94480GS
...
53
RETAINER, RING, 1/2 BS-703976
...
55
DECAL, Shut-Off, Fuel BS-197798GS
...
56
HANDLE BS-M194907GS
...
57
KIT, Handle Fastening BS-189456GS
...
58
ASSY, Control Panel (see "Control Panel") BS-196356GS
...
63
SCREW BS-691127
...
64
WASHER, Master Seal BS-197820GS
...
65
SPACER BS-197821GS
...
76
DECAL, Ground, French BS-195940GS
...
77
DECAL, Neutral Ground BS-195459GS
...
MANUAL, Engine Not Illustrated BS-MS6737
...
MANUAL, Operator's Not Illustrated BS-195222GS
...
PLUG, 250V, 30A Not Illustrated BS-43438GS
...
Front Draw Bar w/Spindles-RH Side Not Illustrated BS-100126
...
DECAL, Family, CA EVP Not Illustrated BS-199384GS
...
BOTTLE, Oil Not Illustrated BS-BB3061GS
...
KIT, Decals Not Illustrated BS-193988GS

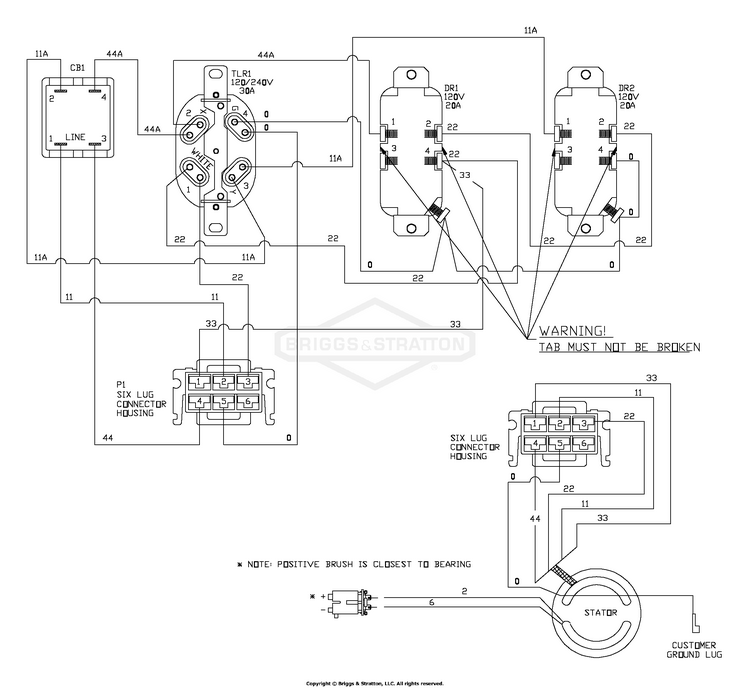

Wiring Diagram

...

No Parts Available for this Schematic

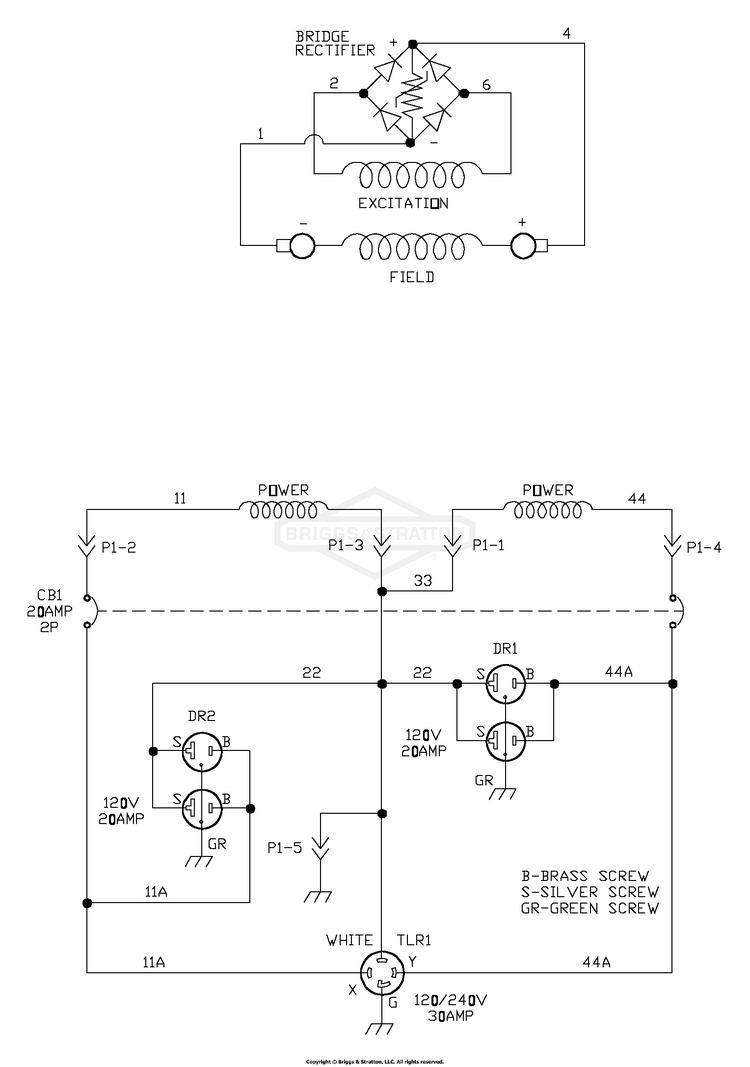

Wiring Schematic

...

No Parts Available for this Schematic
