1655-1 Briggs and Stratton Portable Generator 5,500 Watt WheelHouse

Model: 1655-1

Save Part Not Listed?
product name

Popular Parts

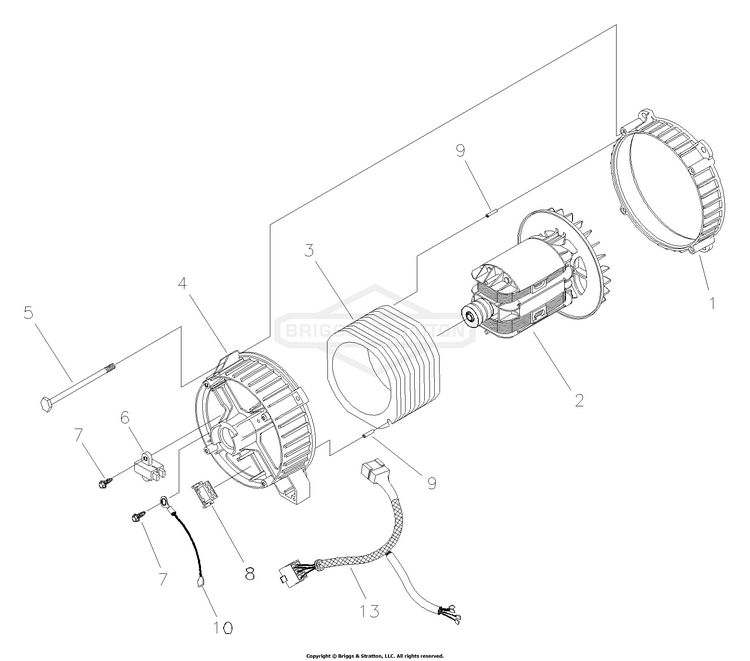

Popular Parts

Alternator

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR BS-190032GS
...
3
STATOR BS-190079AGS
...
4
RBC, (with O-Ring p/n 189197GS) With O-Ring (p/n 189197GS) BS-193336GS
...
5
HHCS, M6 - 1.0 x 140 SEMS BS-86308HGS
...
6
ASSY, Holder, Rectifier/Brush BS-91825GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
RECEPTACLE, 6 pin BS-22694GS
...
9
PIN, Roll, 4mm x 10 BS-81917GS
...
10
ASSY,Wire, Ground BS-193428AGS
...
13
HARNESS,Wire, Power BS-191569GS
...
O-Ring BS-189197GS

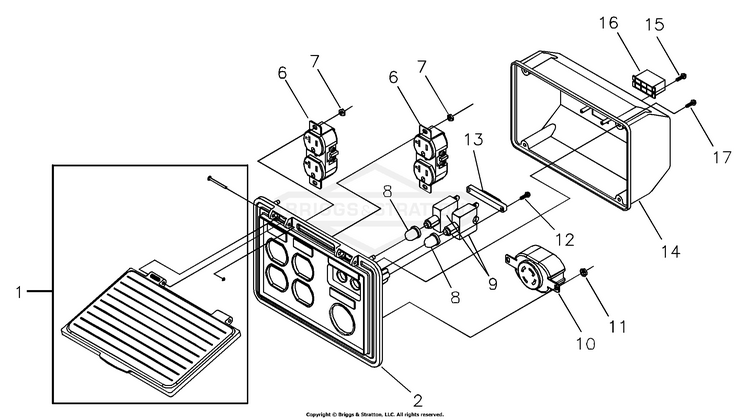

Control Panel

...
...
1
KIT, Control Panel Lid BS-195112GS
...
2
CONTROL PANEL, Compact BS-188889GS
...
6
OUTLET, 120V, 20A, Duplex BS-68759GS
...
8
CAP, Circuit Breaker BS-84198GS
...
9
BREAKER-CIRCUIT 20A BS-209872GS
...
10
OUTLET, 120/240V Locking, 30A BS-43437GS
...
13
BAR, Retaining BS-93857GS
...
14
COVER, Back, Control Panel BS-188890GS
...
15
SCREW, Self Tapping, STC 3 x 18 BS-82308GS
...
16
HOUSING, Receptacle BS-22694GS

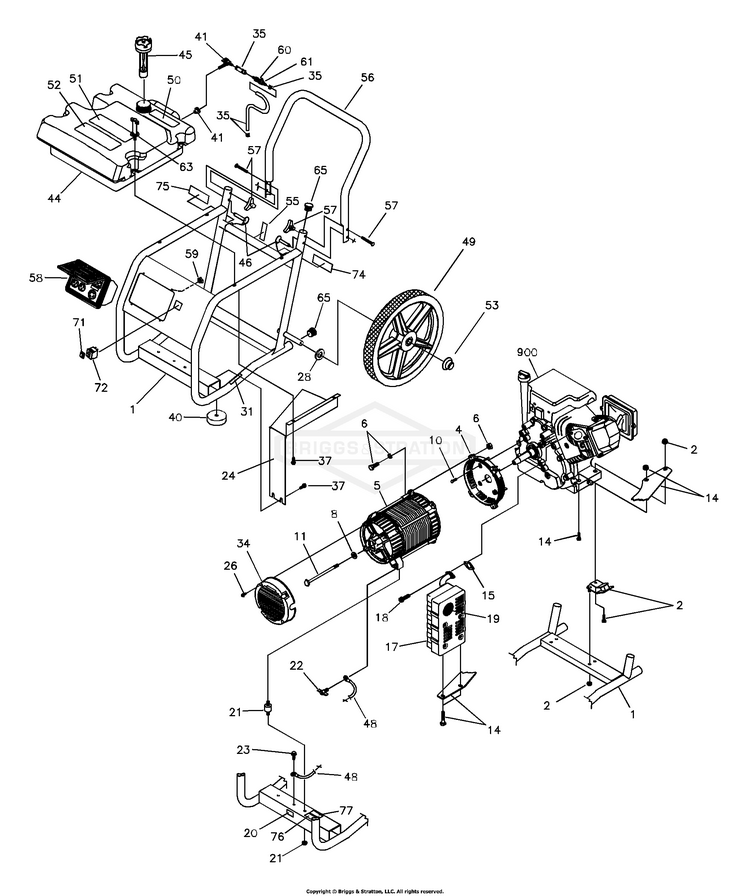

Main Unit

...
...
1
CRADLE BS-M191579GS
...
2
KIT, Mount,Vibration 45°. BS-194150GS
...
4
HOUSING, Engine Adapter BS-190220GS
...
5
ASSY,Alternator (See "Alternator") BS-~NSP
...
6
KIT, Hardware Mounting Adapter BS-194151GS
...
8
WASHER, M8 Flat BS-96796GS
...
10
SHCS, 3/8-16 x 1.00 Lg. BS-190274BGS
...
11
HHCS, 5/16-24 x 7.44 BS-187365FGS
...
14
KIT, Muffler Bracket w/Hardware BS-194729GS
...
15
GASKET, Exhaust BS-695398
...
17
MUFFLER BS-189008GS
...
18
SCREW, 5/16 - 18 x 3/4" BS-60706GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
DECAL, Ground, Green BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
SCREW, M6 - 1.0 x 16 BS-86494GS
...
23
SCREW BS-313085GS
...
24
SHIELD, Heat BS-192793GS
...
26
TAPTITE, M5-0.8 x 10 BS-74908GS
...
31
DECAL, Hot Muffler BS-191436GS
...
34
COVER, Bearing Carrier BS-195422GS
...
35
KIT, Fuel Hoses with Clamps BS-194432GS
...
37
SCREW, 12 -24 x 1/2 THD Forming BS-192376GS
...
40
KIT,Vibe Mount with Hardware BS-192553GS
...
41
KIT,Valve,Tank BS-192980GS
...
44
ASSY,Tank, Fuel (Includes Items 41, 50, 51 & 52) BS-196814GS
...
45
CAP, Fuel Gauge BS-189420GS
...
46
PIN, with Lanyard BS-B4135GS
...
48
WIRE, Ground BS-195373GS
...
49
KIT,Wheel BS-193548GS
...
50
DECAL, Fuel Tank BS-188333GS
...
51
DECAL, Danger, French BS-194984GS
...
52
DECAL, Start Instructions, French BS-94480GS
...
53
PUSHNUT, 1/2" BS-190146GS
...
55
DECAL, Shut-Off, Fuel BS-191435GS
...
56
HANDLE, Red BS-M188205GS
...
57
KIT, Handle Fastening BS-189456GS
...
58
ASSY, Control Panel (see page 4) BS-190355GS
...
60
QUICK CONNECT, Fuel, 1/4 Barb BS-189117GS
...
61
QUICK CONNECT, Fuel, 1/4 Barb BS-192695GS
...
63
KNOB, Fuel Tank Hold Down BS-189114GS
...
65
CAP PLUG, 1 - 1/4" O.D. BS-189332GS
...
71
BOOT, Breaker Circuit BS-191481GS
...
72
BREAKER, Circuit, 25A 2P BS-191479BGS
...
74
DECAL,Warning, Fuel Line Disconnect BS-192480GS
...
75
DECAL,Warning, Fuel Line Disconnect BS-192519GS
...
76
DECAL, Ground, French BS-76247GS
...
77
DECAL, Neutral Ground BS-74728GS
...
900
ENGINE BS-~NSP
...
MANUAL, Engine Not Illustrated BS-MS6737
...
MANUAL, Owners Not Illustrated BS-191596GS
...
PLUG, 250V, 30A Not Illustrated BS-43438GS
...
STABILIZER, Fuel Not Illustrated BS-189208GS
...
BOTTLE, Oil Not Illustrated BS-BB3061GS
...
KIT, Decals, Service Not Illustrated BS-193988GS

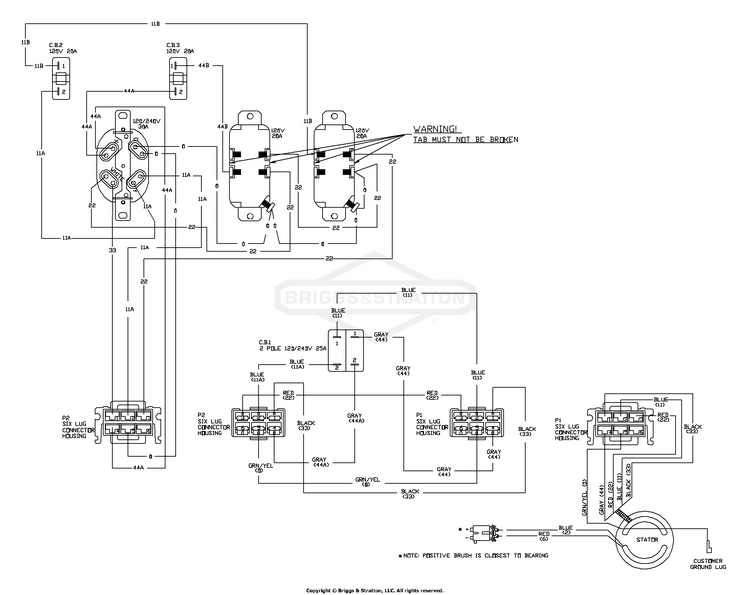

Wiring Diagram

...

No Parts Available for this Schematic

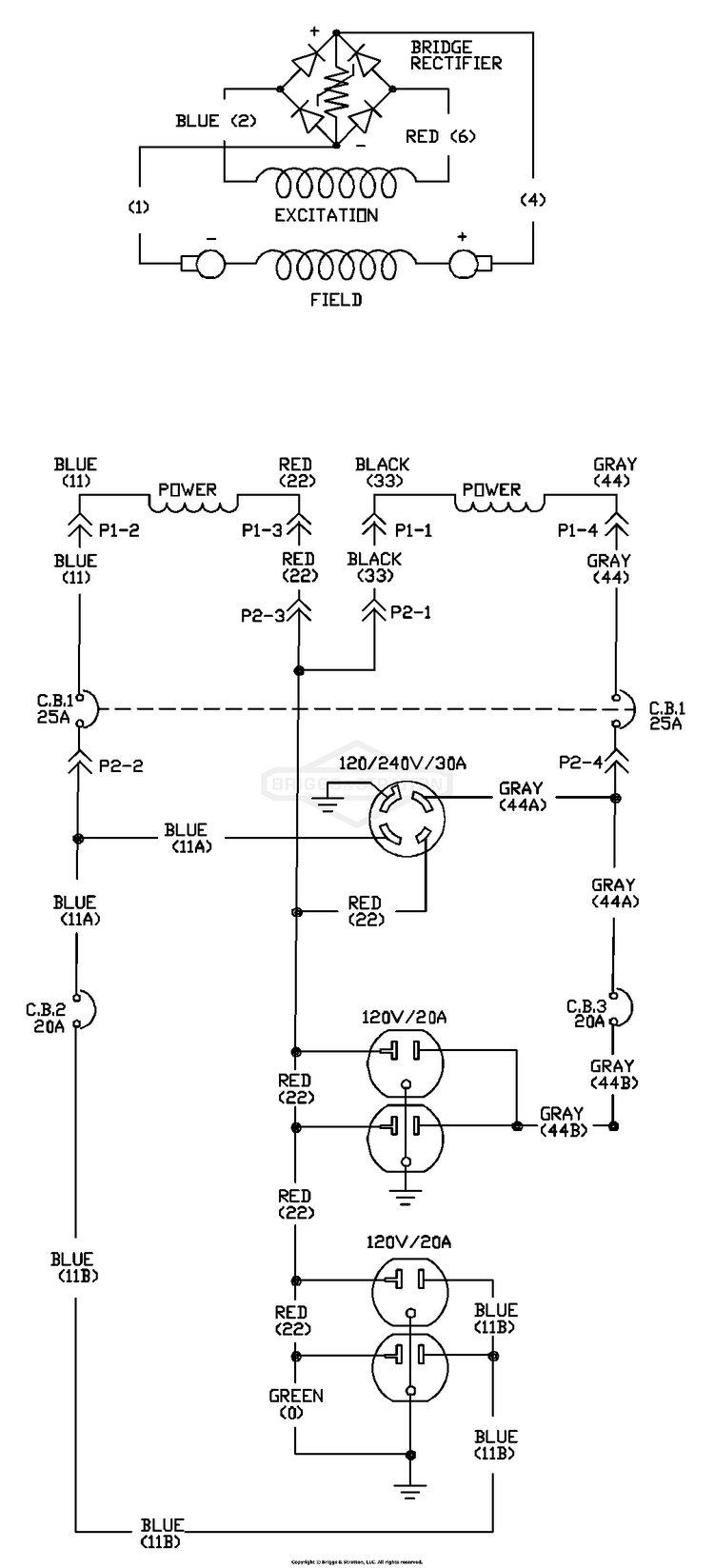

Wiring Schematic

...

No Parts Available for this Schematic
