1655-0 Briggs and Stratton Portable Generator 5,500 Watt WheelHouse

Model: 1655-0

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Main Unit

...
...
1
FRAME BS-M189457GS
...
2
MOUNT,Vibration 45°. BS-70642GS
...
3
TPHMS, M8 - 1.25 x 35 BS-195398GS
...
4
HOUSING, Engine Adapter BS-66365GGS
...
5
ASSEMBLY, Rotor (Inclds Item 7) BS-187746GS
...
6
ASSEMBLY, Stator BS-187745GS
...
7
BEARING BS-65791GS
...
8
WASHER, M8 Flat BS-96796GS
...
9
DECAL, Cover Air Cleaner BS-189920GS
...
10
SCREW, 5/16-24 x 3/4 SEMS BS-86307GS
...
11
SCREW, 5/16-24 x 7-3/8 BS-99383GS
...
12
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
13
GROMMET, Rubber BS-189127GS
...
14
BRACKET, Muffler BS-189009GS
...
15
GASKET, Exhaust BS-695398
...
16
SCREW, M6-1 x 12 w/Lock Washer BS-66476GS
...
17
MUFFLER BS-189008GS
...
18
SCREW, 5/16 - 18 x 3/4" BS-60706GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
PIN, 4mm x 10 Roll BS-81917GS
...
21
NUT, Flange Serrated BS-67989GS
...
22
MOUNT-VIBRATION BS-194153GS
...
23
GROMMET, Rubber BS-67022GS
...
24
SHIELD, Heat BS-J189011GS
...
25
CARRIER, Rear Bearing BS-SRV66825DGS
...
26
TAPTITE, M5-0.8 x 10 BS-74908GS
...
27
BOLT, M6-1 x 145mm Stator BS-86308AGS
...
28
SLEEVING, Flexo, HW 1/2" X 15" BS-84409GS
...
29
FASTEN, On Tab Housing 6P BS-22695GS
...
30
GROMMET, Plastic BS-84242GS
...
31
DECAL, Fuel Tank BS-188333GS
...
32
ASSEMBLY, Brush Holder BS-91825GS
...
33
HHCS, M5-0.8 X 16 BS-49815GS
...
34
COVER, Bearing Carrier BS-B4871GS
...
35
WASHER, #10 Ext. Shakeproof BS-23762GS
...
36
SCREW, M6-1.0 x 16 Wing BS-86494GS
...
37
SCREW, #10 Self Drilling BS-B2153GS
...
38
BLIND RIVET BS-188194GS
...
39
WASHER, Flat BS-71693GS
...
40
VIBE MOUNT, with Washer BS-191413GS
...
41
Kit, Valve BS-192980GS
...
42
Kit, Valve BS-192980GS
...
43
CAP, Fuel Gauge BS-189420GS
...
44
ASSY,Tank, Fuel (Includes Items 41 & 42) BS-193547GS
...
45
DECAL, Start Instructions BS-94480GS
...
46
WASHER BS-22097GS
...
47
NUT, Hex, 1/4-20 BS-22127GS
...
48
WIRE, Ground BS-195373GS
...
49
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
50
DECAL, Ground, Green BS-B4986GS
...
51
DECAL, Danger, French BS-194984GS
...
52
KIT,Wheel BS-193548GS
...
53
PUSHNUT, 1/2" BS-75402GS
...
54
BOTTLE, Oil, 28 oz BS-BB3061GS
...
55
HOOD, Rocker Arm Cover BS-187330GS
...
56
HANDLE BS-M188205GS
...
57
KIT, Handle Fastening BS-189456GS
...
58
ASSEMBLY, Control Panel BS-189157GS
...
59
NUT, Palnut 3/16" BS-189164GS
...
60
QUICK CONNECT, Fuel, 1/4 Barb BS-189117GS
...
61
KIT, Hose Fuel w/ Clamps (cut to fit) BS-199838GS
...
62
DECAL, Logo BS-189919GS
...
63
KNOB, Fuel Tank Hold Down BS-189114GS
...
64
DECAL, Hot Muffler BS-77816GS
...
65
CAP PLUG, 1 - 1/4" O.D. BS-189332GS
...
66
DECAL, Shut-Off, Fuel BS-73054GS
...
67
DECAL, 1-800 # BS-20566GS
...
68
HOSE, 1/4" x 51mm BS-189867AGS
...
69
CLAMP, Hose BS-691038
...
70
MANUAL, Owners BS-189922GS
...
71
MANUAL, Engine BS-188637GS
...
72
PLUG, 250V, 30A BS-43438GS
...
73
STABILIZER, 1oz Tube BS-189208GS
...
74
HOSE, 1/4" x 159mm BS-189867BGS
...
75
WASHER, M12 Flat BS-49808GS
...
76
WIRE, Ground Panel BS-189521AGS
...
77
PIN, with Lanyard BS-B4135GS
...
78
CAP PLUG, 1-1/4" O.D. BS-189332AGS
...
79
DECAL, Neutral Ground BS-74728GS
...
80
DECAL, Danger, French BS-194984GS
...
900
ENGINE BS-~NSP

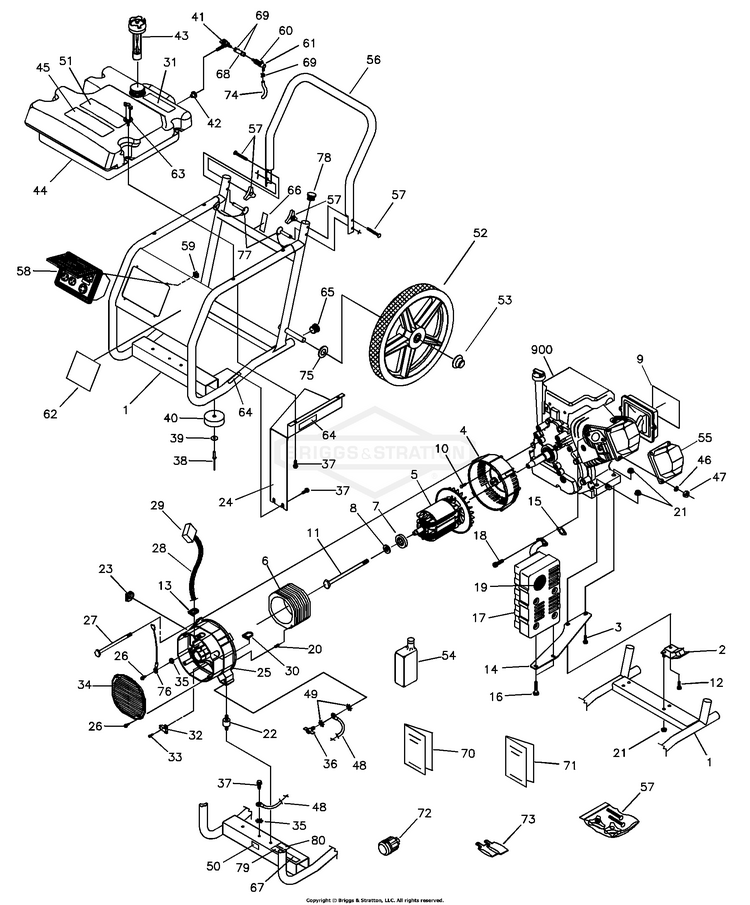

Schematic Image Zoomed
