1654-1 Briggs and Stratton Portable Generator 5,500 Watt

Model: 1654-1

Save Part Not Listed?

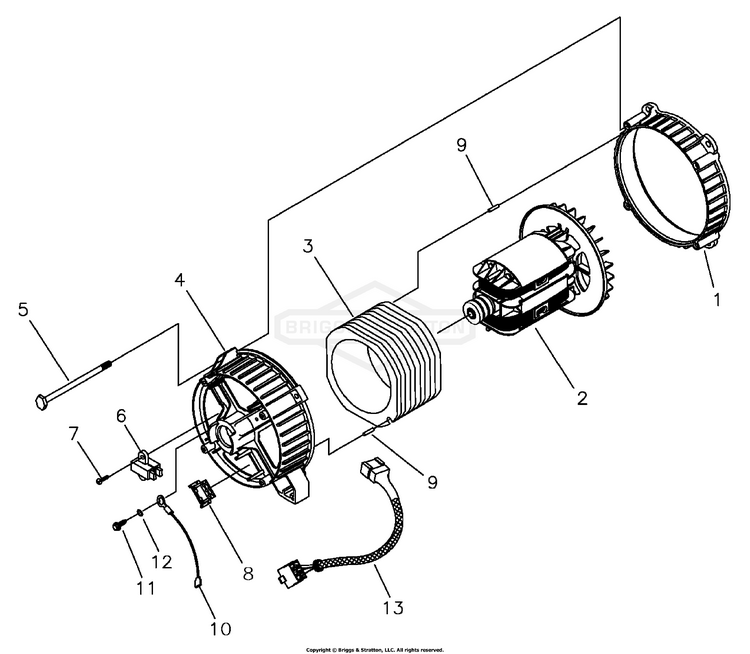

product name

Alternator

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR BS-190032GS
...
3
STATOR BS-190079AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
SCREW BS-86308HGS
...
6
ASSY, Holder, Rectifier/Brush BS-91825GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
RECEPTACLE BS-22694GS
...
9
PIN, Roll BS-81917GS
...
10
ASSY,Wire, Ground BS-193428AGS
...
11
SCREW BS-74908GS
...
12
WASHER BS-23762GS
...
13
HARNESS,Wire, Power BS-190356GS

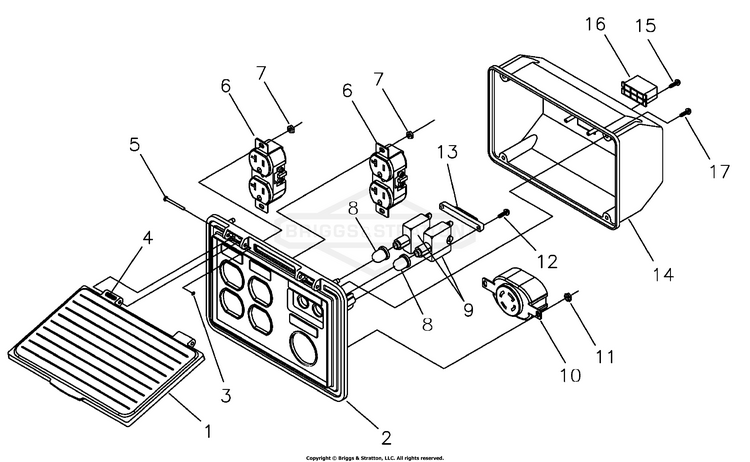

Control Panel

...
...
1
COVER, Lid, Control Panel BS-188914GS
...
2
CONTROL PANEL, Compact BS-188889GS
...
3
CLIP, Hinge Pin Retainer BS-189167GS
...
4
SPRING, Hinge, Pin BS-189182GS
...
5
PIN, Hinge, Cover, Compact BS-189166GS
...
6
OUTLET, 120V, 20A, Duplex BS-68759GS
...
7
NUT BS-189165GS
...
8
CAP, Circuit Breaker BS-84198GS
...
9
BREAKER-CIRCUIT 20A BS-209872GS
...
10
OUTLET, 120/240V Locking, 30A BS-43437GS
...
11
NUT BS-189164GS
...
12
SCREW BS-84543CGS
...
13
BAR, Retaining BS-93857GS
...
14
COVER, Back, Control Panel BS-188890GS
...
15
SCREW BS-82308GS
...
16
HOUSING, Receptacle BS-22694GS
...
17
SCREW BS-192241GS

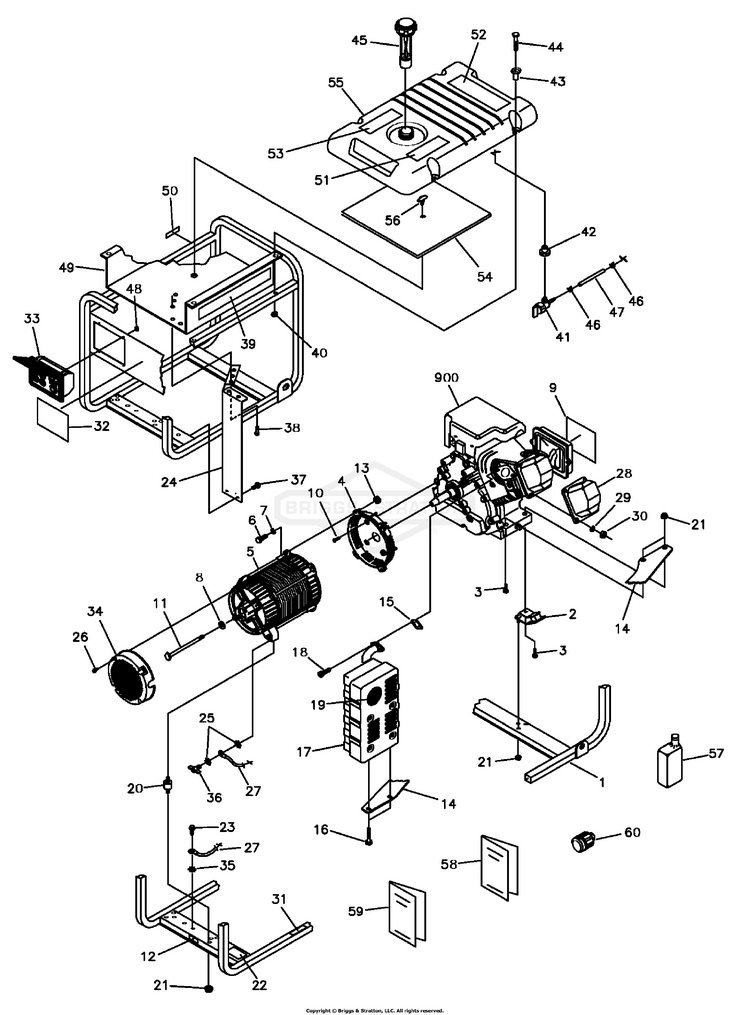

Main Unit

...
...
1
CRADLE BS-M189503GS
...
2
MOUNT, Vibration BS-70642GS
...
3
SCREW BS-76222GS
...
4
HOUSING, Engine Adapter BS-190220GS
...
5
ASSY, Alternator (see "Alternator") BS-190442GS
...
6
BOLT, M8-1.25 X 25MM BS-5025237X25YP
...
7
WASHER, Lock BS-22129GS
...
8
WASHER BS-96796GS
...
9
DECAL, Cover,Air Cleaner BS-189949GS
...
10
SCREW BS-190274BGS
...
11
SCREW BS-187365FGS
...
12
DECAL, Ground, Green BS-B4986GS
...
13
NUT BS-45771GS
...
14
BRACKET, Muffler BS-189009GS
...
15
GASKET, Exhaust BS-695398
...
16
SCREW, w/Lock Washer BS-66476GS
...
17
MUFFLER BS-189008GS
...
18
SCREW BS-60706GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
MOUNT-VIBRATION BS-194153GS
...
21
NUT, Flange Serrated BS-67989GS
...
22
DECAL, 1-800 # BS-20566GS
...
23
SCREW BS-313085GS
...
24
SHIELD, Heat BS-J190061GS
...
25
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
26
SCREW BS-74908GS
...
27
WIRE, Ground BS-195373GS
...
28
HOOD, Rocker Arm Cover BS-187330GS
...
29
WASHER BS-22097GS
...
30
NUT, Hex, 1/4-20 BS-22127GS
...
31
DECAL, Hot Muffler BS-77816GS
...
32
DECAL, Panel, Control BS-189949GS
...
33
ASSY, Control Panel (see "Control Panel") BS-190355GS
...
34
COVER, Bearing Carrier BS-195422GS
...
35
WASHER BS-23762GS
...
36
SCREW,Wing BS-86494GS
...
37
SCREW BS-B2153GS
...
38
SCREW BS-56893GS
...
39
DECAL, Heat Shield BS-189948GS
...
40
NUT, Lock BS-77395GS
...
41
Kit, Valve BS-192980GS
...
42
Kit, Valve BS-192980GS
...
43
GROMMET, Tank BS-83465GS
...
44
SCREW BS-78831BGS
...
45
CAP, Fuel Gauge BS-B4363GS
...
46
CLAMP, Hose BS-691038
...
47
HOSE, Fuel BS-30340GS
...
48
NUT, Palnut BS-189164GS
...
49
SHIELD, Heat BS-J92039GS
...
50
DECAL, Fuel Shut-off BS-73054GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Start Instructions BS-189235GS
...
53
DECAL, Gas Fill BS-188333GS
...
54
INSULATION BS-92665GS
...
55
ASSY,Tank, Fuel (Includes Items 41 & 42) BS-193500GS
...
56
CLIP, Insulation BS-85000GS
...
57
BOTTLE, Oil BS-BB3061GS
...
58
MANUAL, Owners BS-192159GS
...
59
MANUAL, Engine BS-275092
...
60
PLUG, 250V, 30A BS-43438GS
...
900
ENGINE BS-~NSP

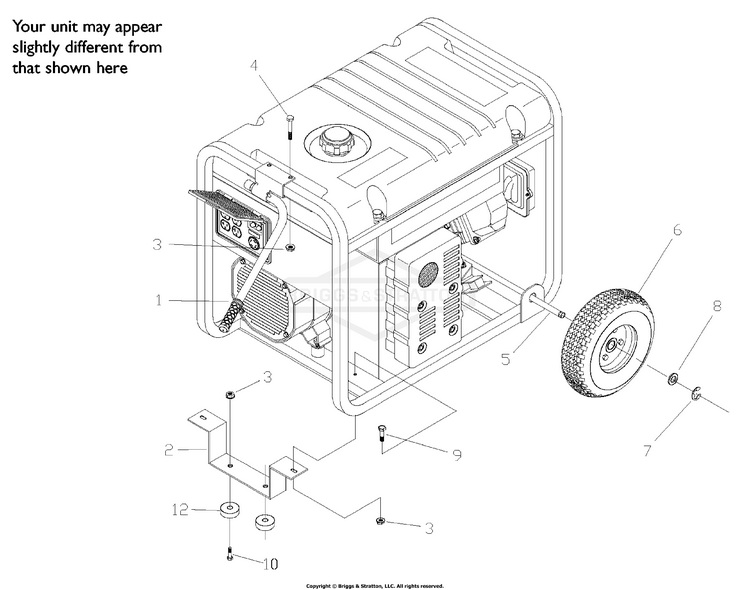

Wheel Kit

...
...
1
ASSY, Handle BS-189715GS
...
2
LEG, Mounting BS-B187101GS
...
3
NUT, Lock BS-52858GS
...
4
SCREW BS-39287GS
...
5
AXLE BS-191267GGS
...
6
WHEEL BS-209636GS
...
7
E-RING BS-703977
...
8
WASHER, 5/8" SAE BS-5025281SM
...
9
CAPSCREW M8-1.25X16 BS-703988
...
10
SCREW BS-42909GS
...
12
VIBE MOUNT, with Washer BS-191413GS

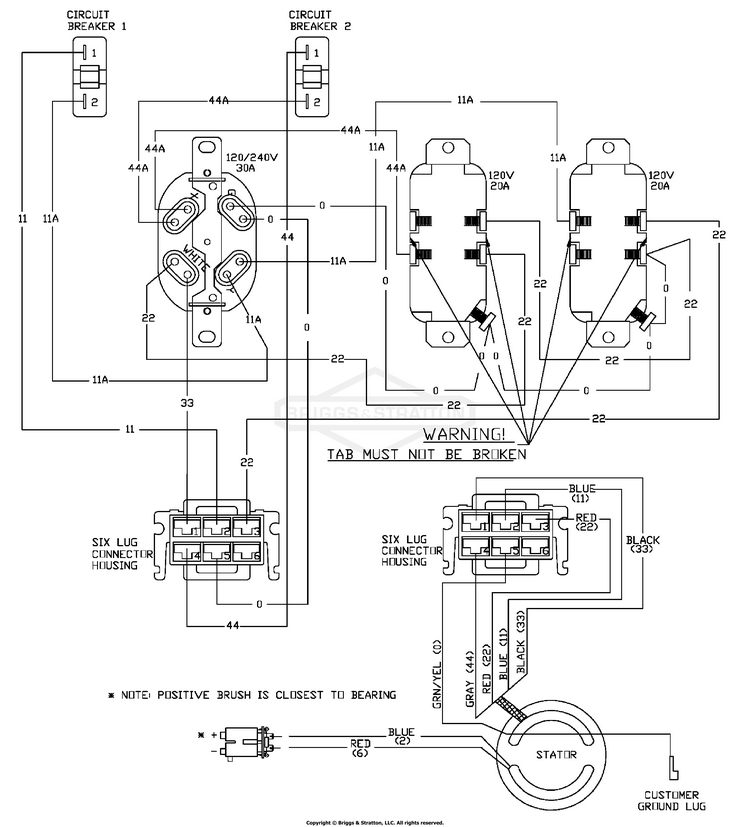

Wiring Diagram

...

No Parts Available for this Schematic

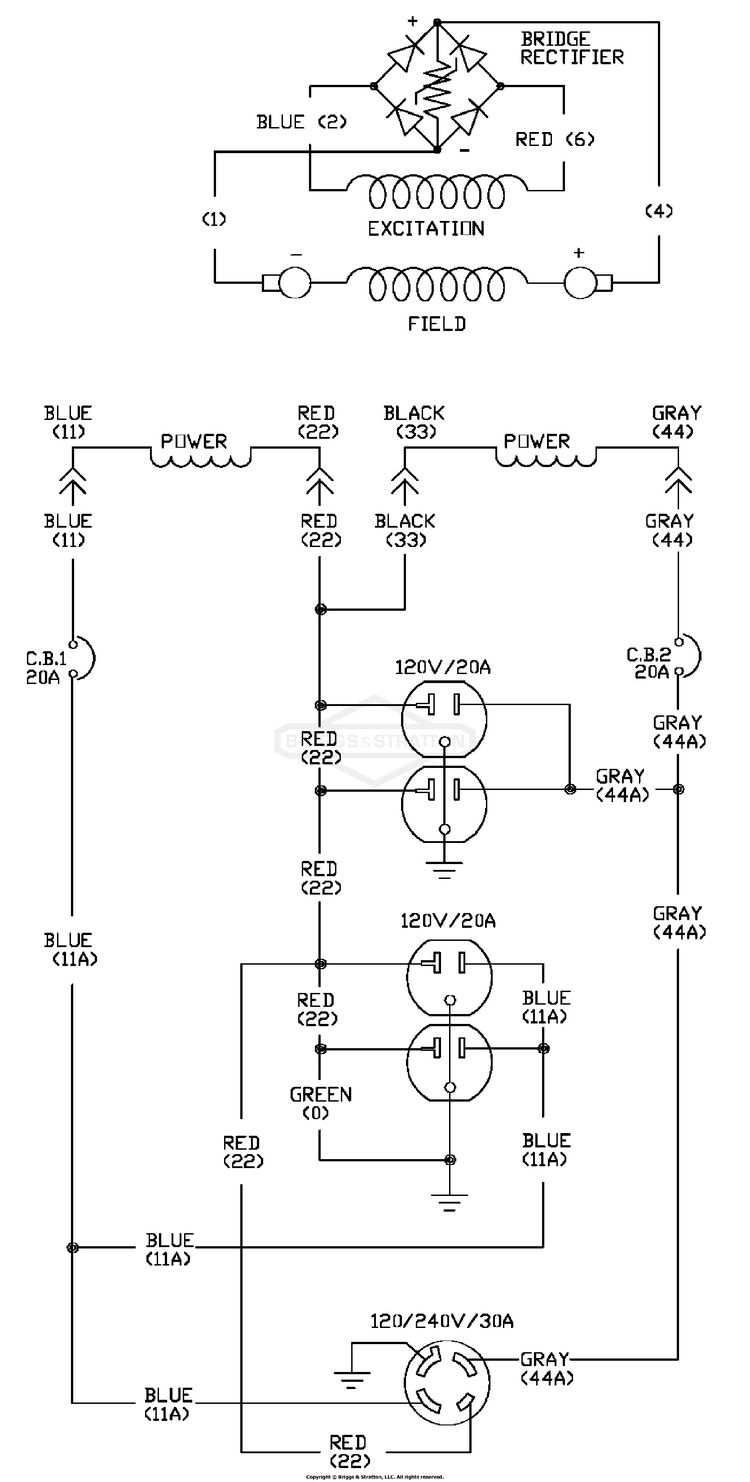

Wiring Schematic

...

No Parts Available for this Schematic
