1654-0 Briggs and Stratton Portable Generator 5,500 Watt

Model: 1654-0

Save Part Not Listed?
product name

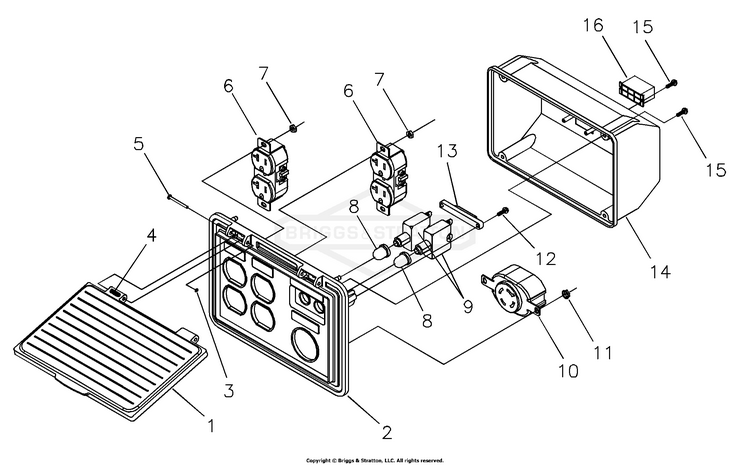

Control Panel

...
...
1
COVER, Lid, Control Panel BS-188914GS
...
2
CONTROL PANEL, Compact BS-188889GS
...
3
CLIP, Hinge Pin Retainer BS-189167GS
...
4
SPRING, Hinge, Pin BS-189182GS
...
5
PIN, Hinge, Cover, Compact BS-189166GS
...
6
OUTLET, 120V, 20Amp, Duplex BS-68759GS
...
7
NUT, Palnut, Pushnut BS-189165GS
...
8
CAP, Circuit Breaker BS-84198GS
...
9
BREAKER-CIRCUIT 20A BS-209872GS
...
10
OUTLET, 120/240 Locking, 30A BS-43437GS
...
11
NUT, Palnut, Pushnut BS-189164GS
...
12
SCREW, Phillips, Head BS-84543CGS
...
13
BAR, Retaining BS-93857GS
...
14
COVER, Back, Control Panel BS-188890GS
...
15
SCREW, Self Tapping BS-82308GS
...
16
HOUSING, Receptacle BS-22694GS

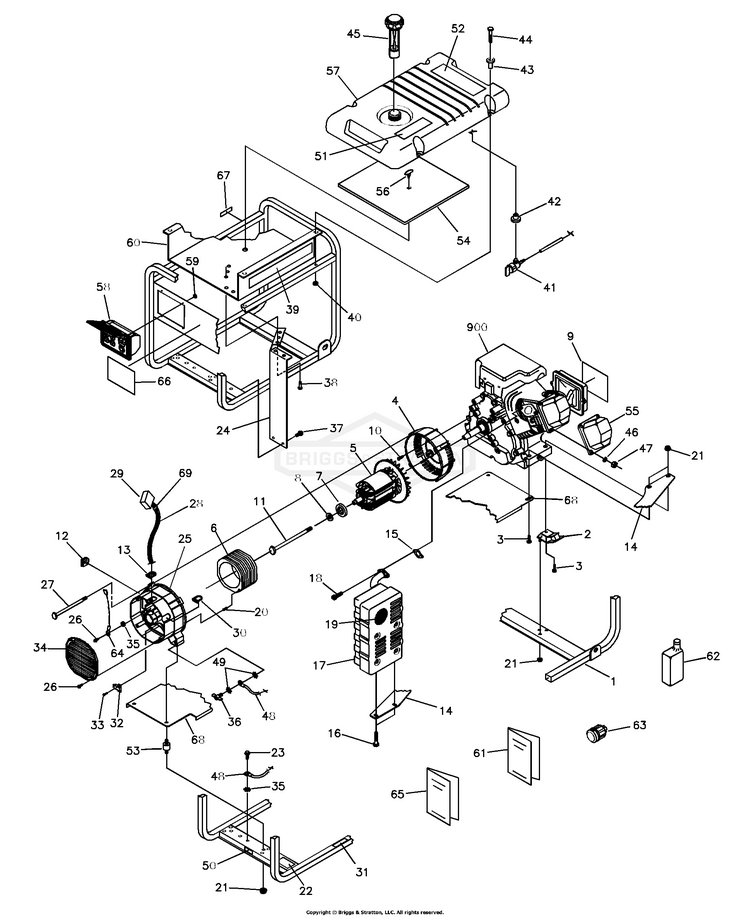

Main Unit

...
...
1
CRADLE BS-M189503GS
...
2
MOUNT, Vibration, 45°. BS-70642GS
...
3
PPHMS, M8 - 1.25 x 40 mm BS-76222GS
...
4
HOUSING, Engine Adapter BS-66365GGS
...
5
ASSEMBLY, Rotor (Inclds Item 7) BS-187746GS
...
6
ASSEMBLY, Stator BS-187745GS
...
7
BEARING BS-65791GS
...
8
WASHER, M8 Flat BS-96796GS
...
9
DECAL, Cover,Air Cleaner BS-189949GS
...
10
SCREW, SEMS BS-86307GS
...
11
SCREW BS-99383GS
...
12
GROMMET, Rubber BS-67022GS
...
13
GROMMET, Rubber BS-189127GS
...
14
BRACKET, Muffler BS-189009GS
...
15
GASKET, Exhaust BS-695398
...
16
SCREW, w/Lock Washer BS-66476GS
...
17
MUFFLER BS-189008GS
...
18
SCREW BS-60706GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
PIN, 4mm x 10 Roll BS-81917GS
...
21
NUT, Flange Serrated BS-67989GS
...
22
DECAL, 1-800 # BS-20566GS
...
23
SCREW BS-313085GS
...
24
SHIELD, Heat BS-J190061GS
...
25
CARRIER, Rear Bearing BS-SRV66825DGS
...
26
TAPTITE BS-74908GS
...
27
BOLT, Stator BS-86308AGS
...
28
SLEEVING, Flexo BS-84409GS
...
29
FASTEN, On Tab Housing 6P BS-22695GS
...
30
GROMMET, Plastic BS-84242GS
...
31
DECAL, Hot Muffler BS-77816GS
...
32
ASSEMBLY, Brush Holder BS-91825GS
...
33
HHCS, M5-0.8 X 16 BS-49815GS
...
34
COVER, Bearing Carrier BS-B4871GS
...
35
WASHER, Ext. Shakeproof BS-23762GS
...
36
SCREW, Wing BS-86494GS
...
37
SCREW, Self Drilling BS-B2153GS
...
38
SCREW, Crimptite BS-56893GS
...
39
DECAL, Heat Shield BS-189948GS
...
40
NUT, M6 Flange Lock BS-77395GS
...
41
Kit, Valve BS-192980GS
...
42
Kit, Valve BS-192980GS
...
43
GROMMET, Tank BS-83465GS
...
44
HHCS, SEMS BS-78831BGS
...
45
CAP, Fuel Gauge BS-B4363GS
...
46
WASHER BS-22097GS
...
47
NUT, Hex, 1/4-20 BS-22127GS
...
48
WIRE, Ground BS-195373GS
...
49
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
50
DECAL, Ground, Green BS-B4986GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Start Instructions BS-189235GS
...
53
MOUNT-VIBRATION BS-194153GS
...
54
INSULATION BS-92665GS
...
55
HOOD, Rocker Arm Cover BS-187330GS
...
56
CLIP, Insulation BS-85000GS
...
57
ASSY,Tank, Fuel (Includes Items 41 & 42) BS-193500GS
...
58
ASSEMBLY, Control Panel BS-189157GS
...
59
NUT, Palnut BS-189164GS
...
60
SHIELD, Heat BS-J92039GS
...
61
MANUAL, Owners BS-189828GS
...
62
BOTTLE, Oil, 28 oz BS-BB3061GS
...
63
PLUG, 250V, 30A BS-43438GS
...
64
WIRE, Ground, Panel BS-189521AGS
...
65
MANUAL, Engine BS-188826GS
...
66
DECAL, Panel, Control BS-189949GS
...
67
DECAL, Fuel Shut-off BS-73054GS
...
68
PLATE, Stiffener BS-L190018GS
...
69
TIE WRAP BS-28739AGS
...
900
ENGINE BS-~NSP

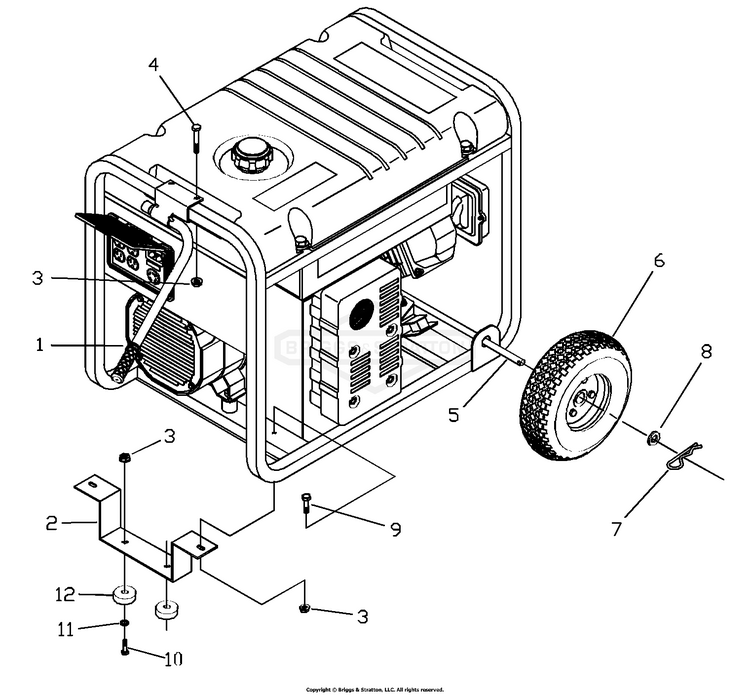

Wheel Kit

...
...
1
ASSEMBLY, Handle BS-189715GS
...
2
LEG, Mounting BS-B187101GS
...
3
NUT, Locking Hex BS-52858GS
...
4
HHCS, M8 - 1.25 x 45 BS-39287GS
...
5
AXLE BS-191267GGS
...
6
WHEEL BS-209636GS
...
7
PIN, 3/32 X 1.6 BS-703300
...
8
WASHER, 5/8" SAE BS-5025281SM
...
9
CAPSCREW M8-1.25X16 BS-703988
...
10
HHCS, M8 - 1.25 x 30 BS-42909GS
...
11
WASHER BS-703350
...
12
VIBE MOUNT, with Washer BS-191413GS

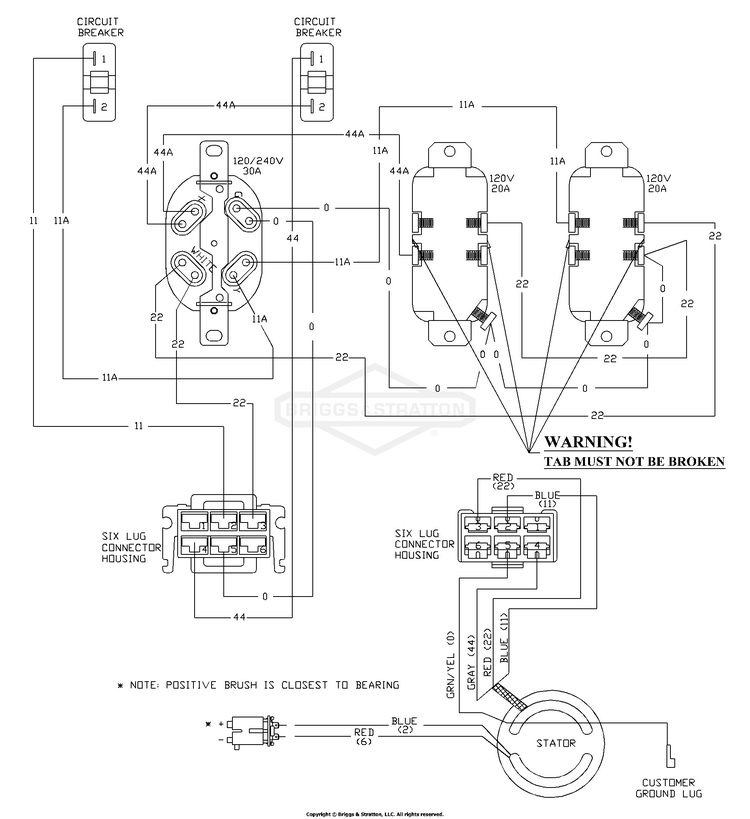

Wiring Diagram

...

No Parts Available for this Schematic

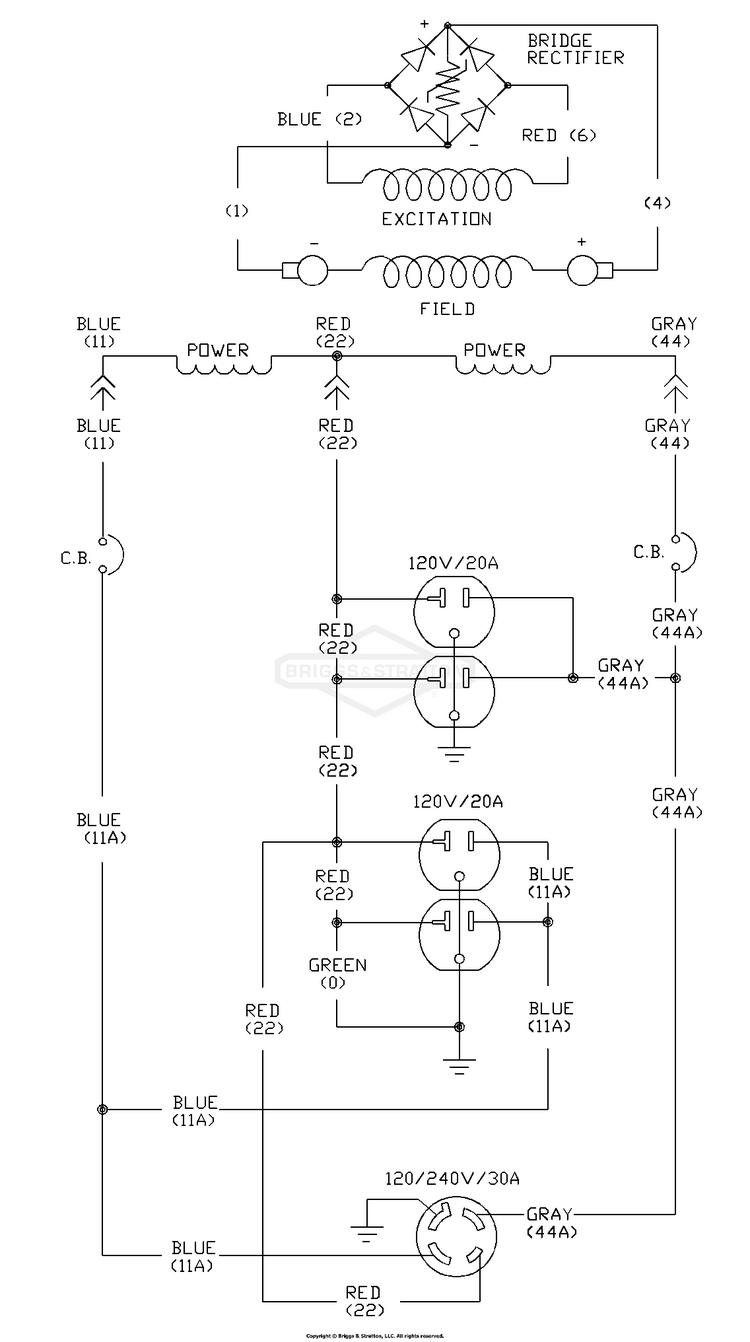

Wiring Schematic

...

No Parts Available for this Schematic
