1653-3 Briggs and Stratton Portable Generator 3,250 Watt

Model: 1653-3

Back To Assemblies

Save Part Not Listed?
product name

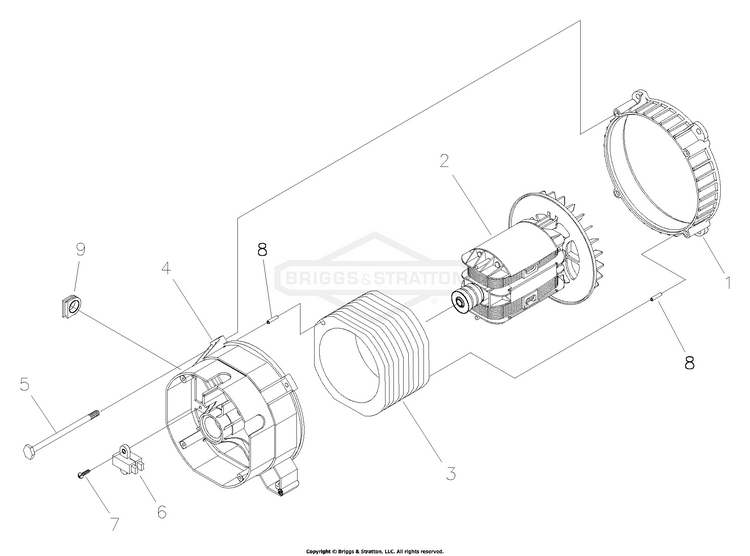

Alternator

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR BS-192164GS
...
3
STATOR BS-190488AGS
...
4
RBC, With O-Ring (p/n 189197GS) BS-192215BGS
...
5
HHCS, M6 - 1.0 x 95 SEMS BS-86308JGS
...
6
ASSY, Holder, Rectifier/Brush BS-91825GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
PIN, Roll, 4mm x 10 BS-81917GS
...
9
GROMMET, Rubber BS-67022GS
...
O-Ring BS-189197GS
