1653-2 Briggs and Stratton Portable Generator 3,250 Watt

Model: 1653-2

Back To Assemblies

Save Part Not Listed?
product name

Wheel Kit

...
...
1
PIN, 3/32 X 1.6 BS-703300
...
2
WHEEL BS-197061GS
...
3
STUD, Axle BS-93728GS
...
4
JAM NUT, Lock BS-94222QGS
...
5
WASHER BS-49808GS
...
6
LEG, Mounting BS-190505GS
...
8
HANDLE (Includes Item 9) BS-B84910GS
...
9
GRIP, Handle BS-75928GS
...
10
SCREW BS-39287GS
...
11
NUT, Lock BS-52858GS
...
12
NUT, Lock BS-77395GS
...
13
HANDLE BS-84010594
...
14
MOUNT,Vibe BS-87841GS

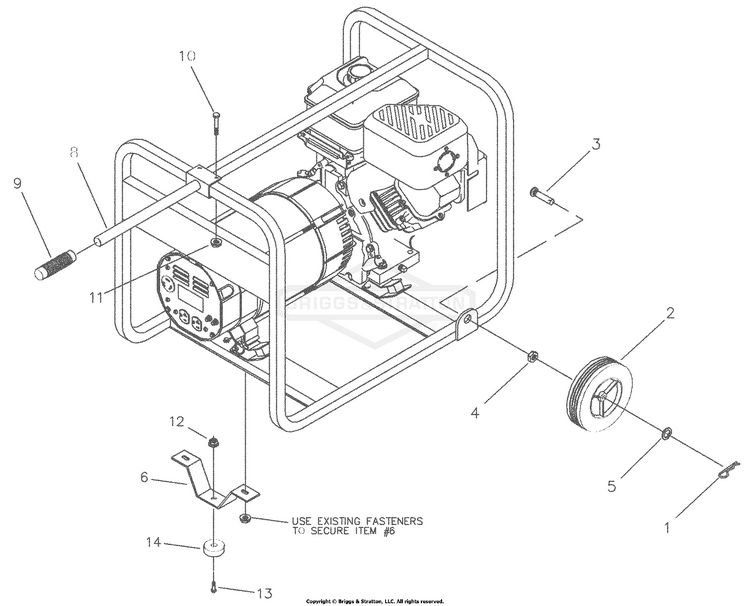

Schematic Image Zoomed
