1652-0 Briggs and Stratton Portable Generator 4,200 Watt

Model: 1652-0

Back To Assemblies

Save Part Not Listed?
product name

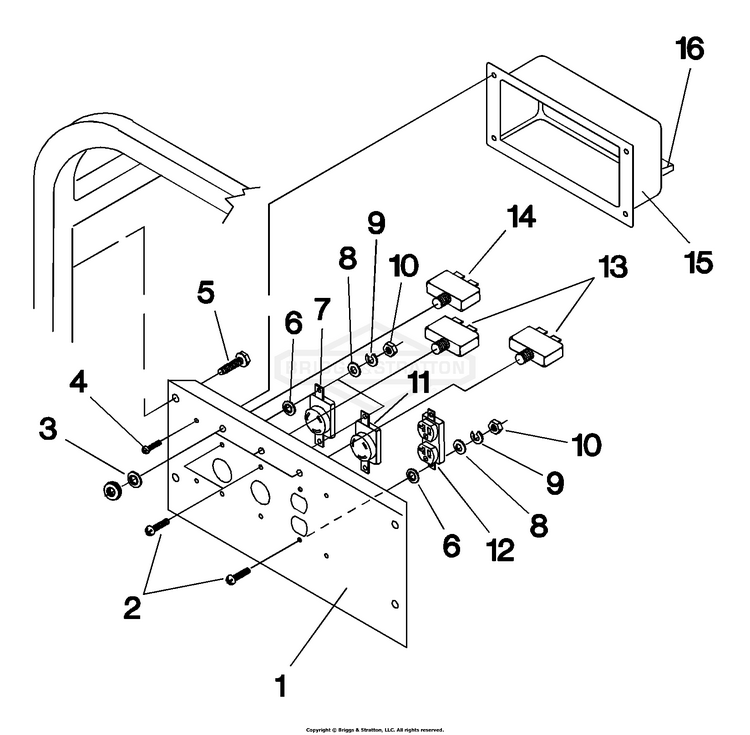

Control Panel

...
...
1
PANEL, Control BS-B4245GS
...
2
SCREW, M4 - 0.7 x 10mm BS-75475GS
...
3
WASHER, Internal Lock BS-82881GS
...
4
SCREW, Self Tapping BS-82308GS
...
5
SCREW, No. 10 Self Drilling x 7/8" BS-B2153GS
...
6
WASHER, No. 8 Serrated Lock BS-23365GS
...
7
OUTLET-120V TL30A BS-705932
...
8
WASHER, No. 8 Flat BS-38150GS
...
9
WASHER BS-847333
...
10
NUT, M4 0.7 Hex BS-51715GS
...
11
RECEPTACLE, 120/240 Volt, 20 Amp Twistlock BS-68867GS
...
12
OUTLET, 120 Volt, 20 amp Duplex BS-68759GS
...
13
BREAKER-CIRCUIT 20A BS-209872GS
...
14
BREAKER-CIRCUIT 30A BS-706178
...
15
CONTROL PANEL, Back BS-81919GS
...
16
CONNECTOR, 6-Pin Male BS-22694GS
Schematic Image Zoomed
