1646-4 Briggs and Stratton Portable Generator 5,550 Watt WheelHouse

Model: 1646-4

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Alternator

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR BS-190032GS
...
3
STATOR BS-190079AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
HHCS, M6 - 1.0 x 140 SEMS BS-86308HGS
...
6
ASSY, Holder, Rectifier/Brush BS-91825GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
RECEPTACLE, 6 pin BS-22694GS
...
9
PIN, Roll, 4mm x 10 BS-81917GS
...
10
ASSY,Wire, Ground BS-193428AGS
...
13
HARNESS,Wire, Power BS-194274GS

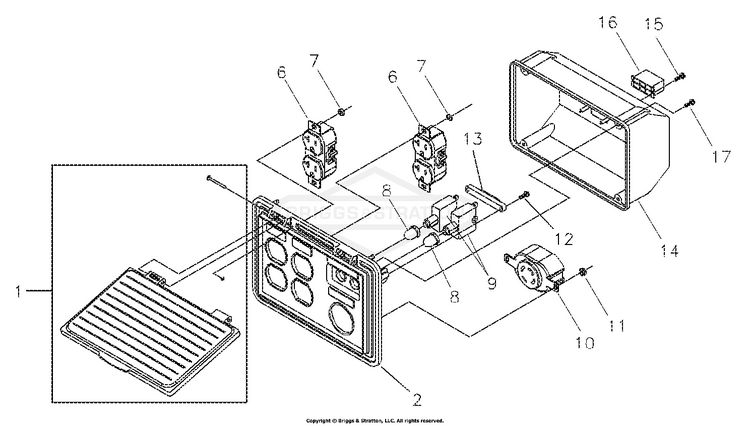

Control Panel

...
...
1
KIT, Control Panel Lid BS-195112GS
...
2
CONTROL PANEL, Compact BS-188889GS
...
6
OUTLET, 120V, 20A, Duplex BS-68759GS
...
8
CAP, Breaker, Circuit BS-84198GS
...
9
BREAKER-CIRCUIT 20A BS-209872GS
...
10
OUTLET, 120/240 Locking, 30A BS-43437GS
...
13
BAR, Retaining BS-93857GS
...
14
COVER, Back, Control Panel BS-188890GS
...
16
HOUSING, Receptacle BS-22694GS

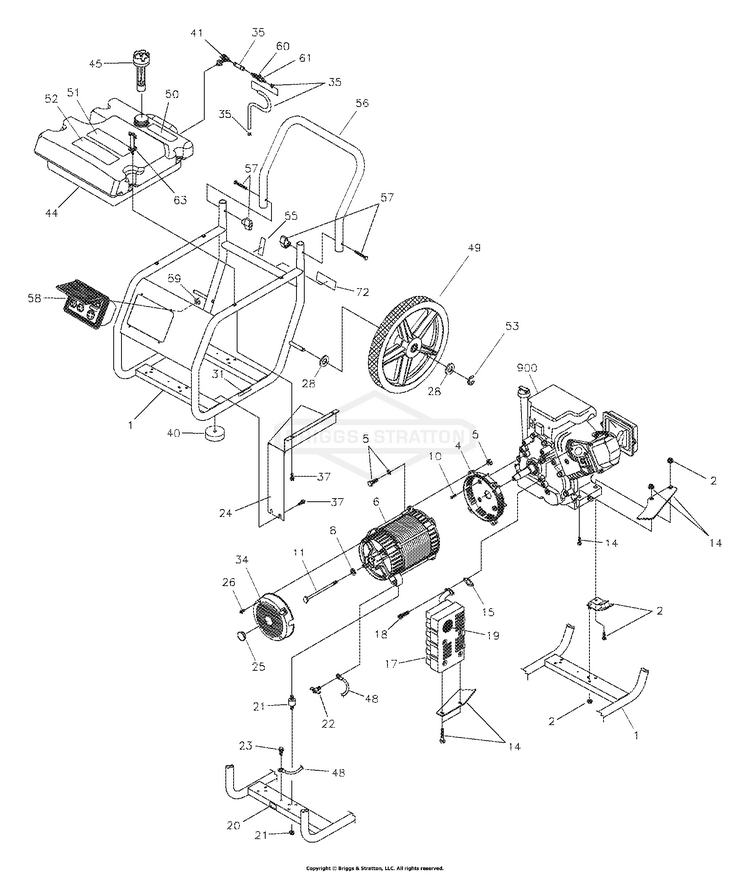

Main Unit

...
...
1
FRAME, (Includes #20, 31, 40, 55, 62 & 72) BS-M197129GS
...
2
KIT,Vibration Mount 45°. BS-194150GS
...
4
HOUSING, Engine Adapter BS-190220GS
...
5
KIT, Hrdwr Mounting Adptr BS-194151GS
...
6
ASSY,Alternator (see "Alternator") BS-~NSP
...
8
WASHER, M8 Flat BS-96796GS
...
10
SBHCS, 3/8-16 x 1.0 Lg. BS-190274BGS
...
11
HHCS, 5/16-24 x 7.44 BS-187365FGS
...
14
KIT, Muffler Brkt w/ Hardware BS-194729GS
...
15
GASKET, Exhaust BS-695398
...
17
MUFFLER BS-189008GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
DECAL, Ground, Green BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
SCREW,Wing, M6 1 x 16 BS-86494GS
...
23
SCREW BS-313085GS
...
24
SHIELD, Heat BS-192793GS
...
25
CAP BS-191190GS
...
26
SCREW, M5-0.8 x 10 Taptite BS-74908GS
...
31
DECAL, Hot Muffler BS-196830GS
...
33
KIT, Hose Fuel w/ Clamps BS-194432GS
...
34
COVER, Bearing Carrier BS-195422GS
...
37
SCREW, 12 - 24 x 1/2 THD Forming BS-192376GS
...
40
KIT,Vibe Mount BS-192553GS
...
41
KIT,Valve Tank BS-192980GS
...
44
ASSY,Tank, Fuel (Includes Items 41, 50, 51 & 52) BS-196181GS
...
45
CAP, Fuel Gauge BS-189420GS
...
48
WIRE, Ground BS-195373GS
...
49
KIT,Wheel (includes Item 53) BS-193548GS
...
50
DECAL, Fuel Tank BS-188333GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Start Instructions BS-189235GS
...
53
RETAINER, RING, 1/2 BS-703976
...
55
DECAL, Shut-Off, Fuel BS-73054GS
...
56
HANDLE BS-M194907GS
...
57
KIT, Handle Fastening BS-189456GS
...
58
ASSY, Control Panel (see "Control Panel") BS-190355GS
...
60
QUICK CONNECT, Fuel, 1/4 Barb BS-189117GS
...
61
QUICK CONNECT, Fuel, 1/4 Barb BS-192695GS
...
63
KNOB, Fuel Tank Hold Down BS-189114GS
...
72
DECAL,Warning, Fuel Line Disconnect BS-192480GS
...
BOTTLE, Oil Not Illustrated BS-BB3061GS
...
PLUG, 250V, 30A Not Illustrated BS-43438GS
...
MANUAL, Engine Not Illustrated BS-MS5242
...
MANUAL, Owners Not Illustrated BS-191911GS
...
STABILIZER, Fuel Not Illustrated BS-189208GS
...
KIT, Decal, Service Not Illustrated BS-193821GS

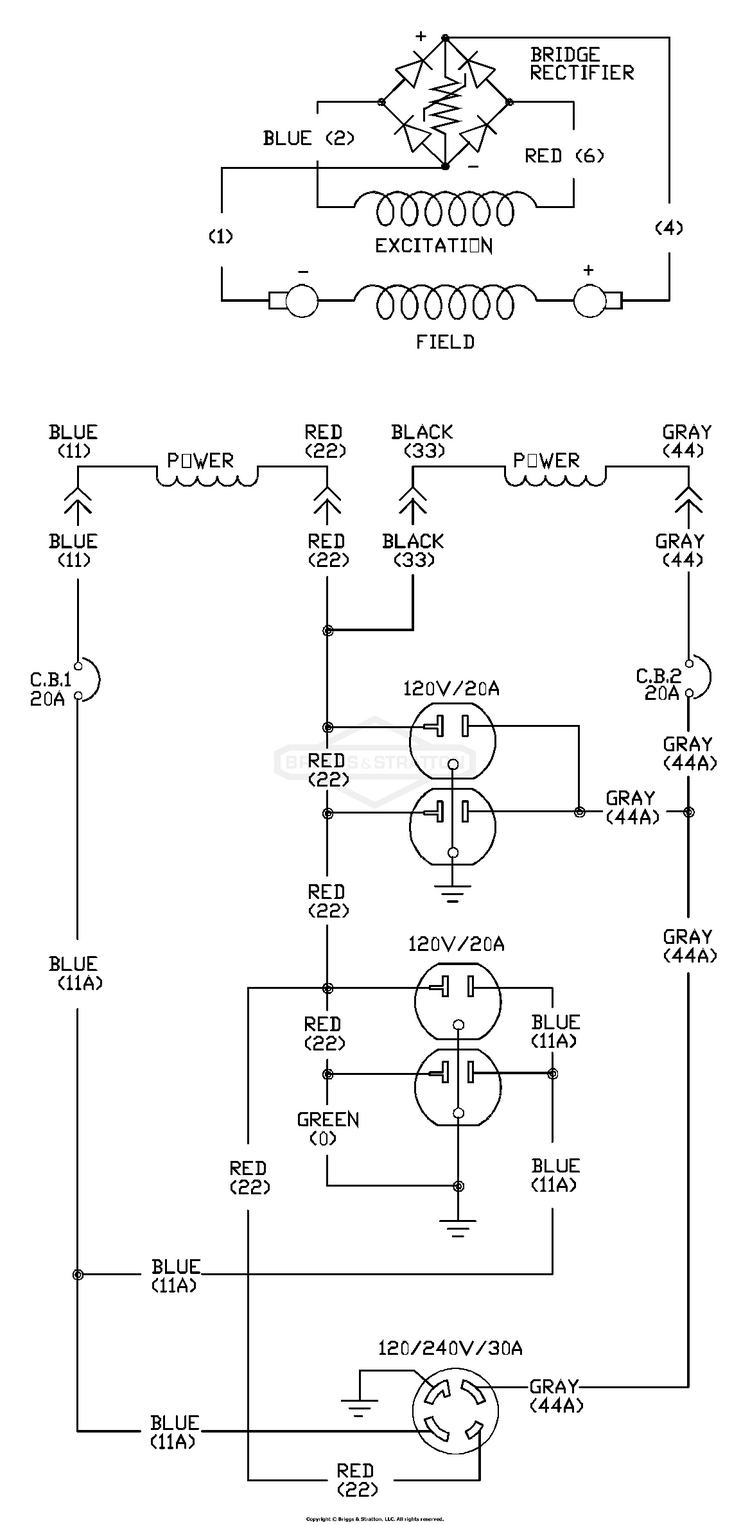

Wiring Diagram

...

No Parts Available for this Schematic

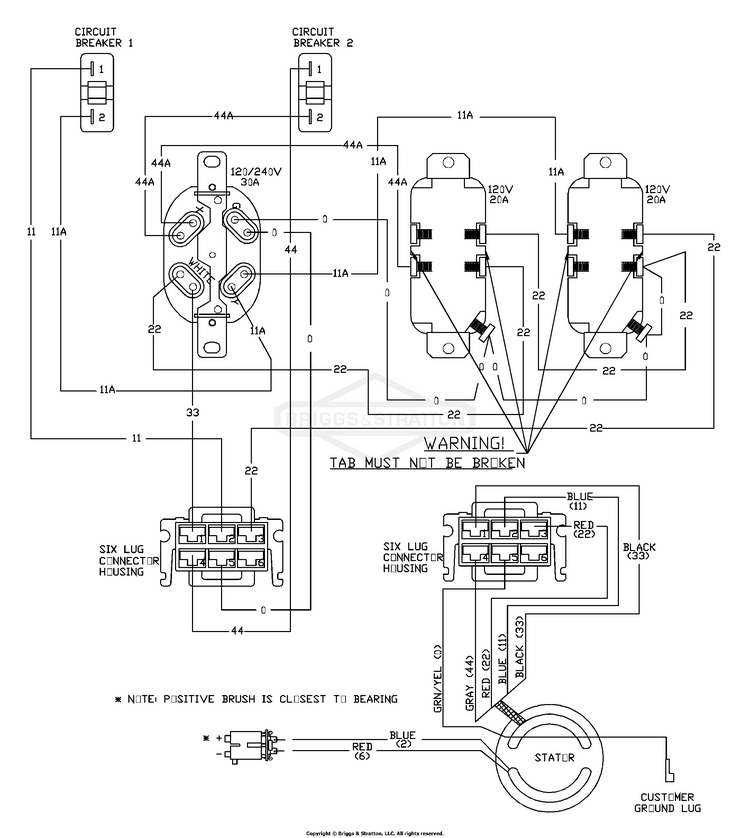

Wiring Schematic

...

No Parts Available for this Schematic
