1646-2 Briggs and Stratton Portable Generator 5,500 Watt WheelHouse

Model: 1646-2

Save Part Not Listed?
product name

Alternator

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR BS-190032GS
...
3
STATOR BS-190079AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
SCREW BS-86308HGS
...
6
ASSY, Holder, Rectifier/Brush BS-91825GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
RECEPTACLE, 6 pin BS-22694GS
...
9
PIN, Roll BS-81917GS
...
10
ASSY,Wire, Ground BS-193428AGS
...
12
WASHER BS-23762GS
...
13
HARNESS,Wire, Power BS-190356GS

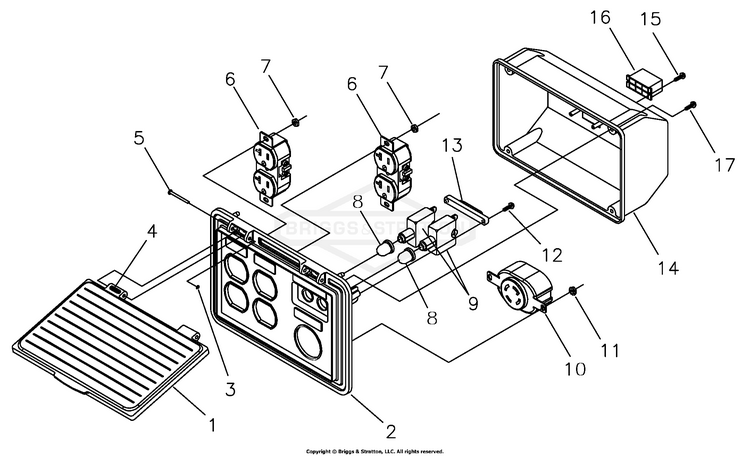

Control Panel

...
...
1
COVER, Lid, Control Panel BS-188914GS
...
2
CONTROL PANEL, Compact BS-188889GS
...
3
CLIP, Hinge Pin Retainer BS-189167GS
...
4
SPRING, Hinge, Pin BS-189182GS
...
5
PIN, Hinge, Cover, Compact BS-189166GS
...
6
OUTLET, 120V, 20A, Duplex BS-68759GS
...
7
NUT BS-189165GS
...
8
CAP, Breaker, Circuit BS-84198GS
...
9
BREAKER-CIRCUIT 20A BS-209872GS
...
10
OUTLET, 120/240V Locking, 30A BS-43437GS
...
11
NUT BS-189164GS
...
12
SCREW BS-84543CGS
...
13
BAR, Retaining BS-93857GS
...
14
COVER, Back, Control Panel BS-188890GS
...
15
SCREW BS-82308GS
...
16
HOUSING, Receptacle BS-22694GS
...
17
SCREW BS-192241GS

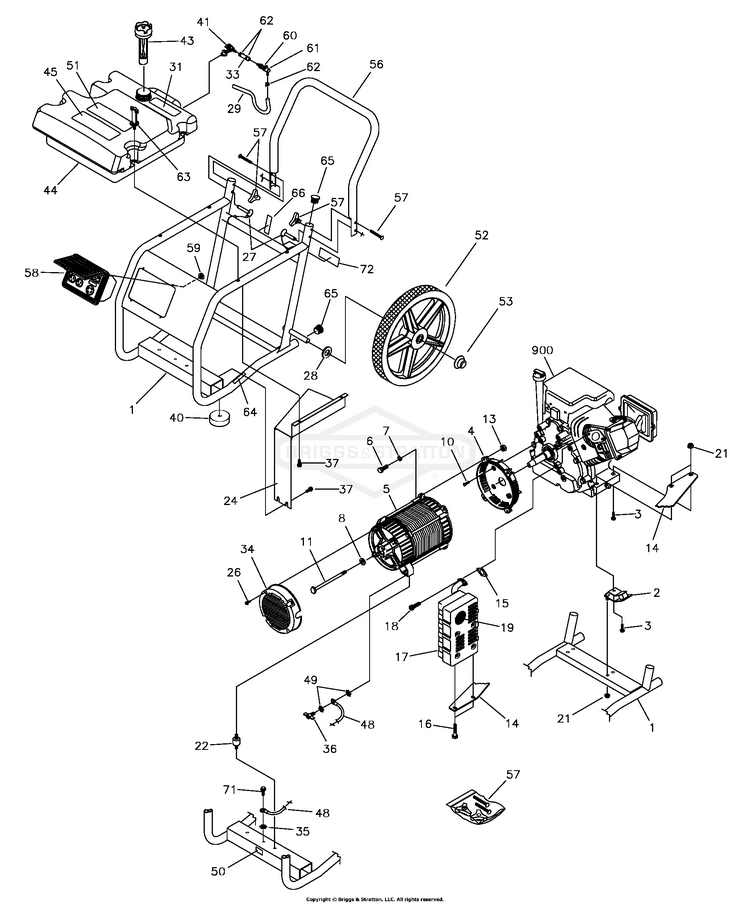

Main Unit

...
...
1
FRAME BS-M189457GS
...
2
MOUNT,Vibration BS-70642GS
...
3
TPHMS, M8 - 1.25 x 35 BS-195398GS
...
4
HOUSING, Engine Adapter BS-190220GS
...
5
ASSY,Alternator (see "Alternator") BS-~NSP
...
6
BOLT, M8-1.25 X 25MM BS-5025237X25YP
...
7
WASHER, Lock BS-22129GS
...
8
WASHER BS-96796GS
...
10
SCREW BS-190274BGS
...
11
SCREW BS-187365FGS
...
13
NUT BS-45771GS
...
14
BRACKET, Muffler BS-189009GS
...
15
GASKET, Exhaust BS-695398
...
16
SCREW, w/Lock Washer BS-66476GS
...
17
MUFFLER BS-189008GS
...
18
SCREW BS-60706GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
21
NUT BS-67989GS
...
22
MOUNT-VIBRATION BS-194153GS
...
24
SHIELD, Heat BS-192793GS
...
26
SCREW BS-74908GS
...
27
PIN, with Lanyard BS-B4135GS
...
28
WASHER BS-22304GS
...
29
KIT, Hose Fuel w/ Clamps (cut to fit) BS-199838GS
...
31
DECAL, Fuel Tank BS-188333GS
...
33
HOSE BS-189867AGS
...
34
COVER, Bearing Carrier BS-195422GS
...
35
WASHER BS-23762GS
...
36
SCREW,Wing BS-86494GS
...
37
SCREW BS-192376GS
...
40
KIT,Vibe Mount BS-192553GS
...
41
KIT,Valve Tank BS-192980GS
...
43
CAP, Fuel Gauge BS-189420GS
...
44
ASSY,Tank, Fuel (Includes Items 31, 41, 45 & 51) BS-193547GS
...
45
DECAL, Start Instructions BS-189235GS
...
48
WIRE, Ground BS-195373GS
...
49
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
50
DECAL, Ground, Green BS-B4986GS
...
51
DECAL, Danger BS-194799GS
...
52
KIT,Wheel (includes Item 53) BS-193548GS
...
53
NUT, Push BS-190146GS
...
56
HANDLE BS-M188205GS
...
57
KIT, Handle Fastening BS-189456GS
...
58
ASSY, Control Panel (see "Control Panel") BS-190355GS
...
59
NUT, Palnut BS-189164GS
...
60
QUICK CONNECT, Fuel BS-189117GS
...
61
QUICK CONNECT, Fuel BS-192695GS
...
62
CLAMP, Hose BS-691038
...
63
KNOB, Fuel Tank Hold Down BS-189114GS
...
64
DECAL, Hot Muffler BS-77816GS
...
65
PLUG, Cap BS-189332GS
...
66
DECAL, Shut-Off, Fuel BS-73054GS
...
71
SCREW BS-313085GS
...
72
DECAL,Warning, Fuel Line Disconnect BS-192480GS
...
900
ENGINE BS-~NSP
...
BOTTLE, Oil NOT ILLUSTRATED BS-BB3061GS
...
PLUG, 250V, 30A NOT ILLUSTRATED BS-43438GS
...
MANUAL, Engine NOT ILLUSTRATED BS-275092
...
MANUAL, Owners NOT ILLUSTRATED BS-191151GS
...
STABILIZER,Tube NOT ILLUSTRATED BS-189208GS
...
KIT, Decal, 01646 Service NOT ILLUSTRATED BS-193546GS

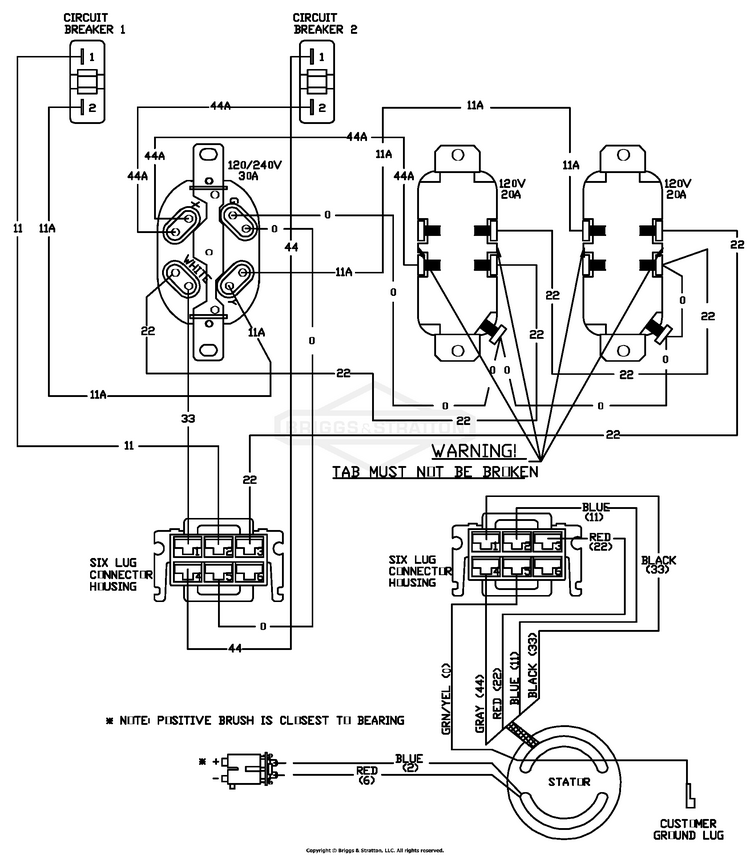

Wiring Diagram

...

No Parts Available for this Schematic

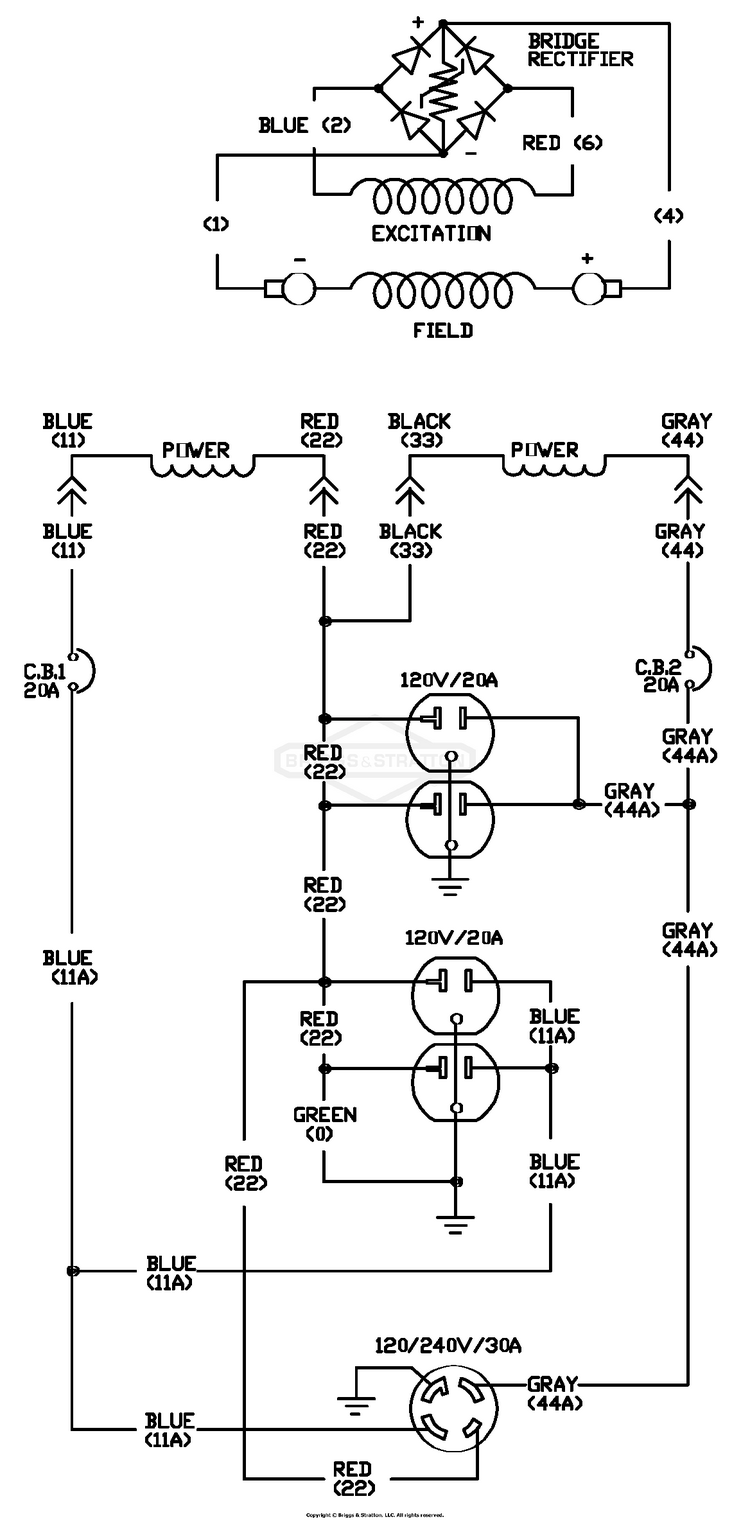

Wiring Schematic

...
