1646-0 Briggs and Stratton Portable Generator 5,500 Watt WheelHouse

Model: 1646-0

Save
 Part Not Listed?Part Not Listed?
product name

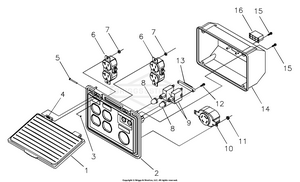

Control Panel

...
...
1
COVER, Lid, Control Panel BS-188914GS
...
2
CONTROL PANEL, Compact BS-188889GS
...
3
CLIP, Hinge Pin Retainer BS-189167GS
...
4
SPRING, Hinge, Pin BS-189182GS
...
5
PIN, Hinge, Cover, Compact BS-189166GS
...
6
OUTLET, 120V, 20Amp, Duplex BS-68759GS
...
7
NUT, Palnut, Pushnut BS-189165GS
...
8
CAP, Circuit Breaker BS-84198GS
...
9
BREAKER-CIRCUIT 20A BS-209872GS
...
10
OUTLET, 120/240 Locking, 30A BS-43437GS
...
11
NUT, Palnut, Pushnut BS-189164GS
...
12
SCREW, Phillips, Head BS-84543CGS
...
13
BAR, Retaining BS-93857GS
...
14
COVER, Back, Control Panel BS-188890GS
...
15
SCREW, Self Tapping, STC 3x BS-82308GS
...
16
HOUSING, Receptacle BS-22694GS

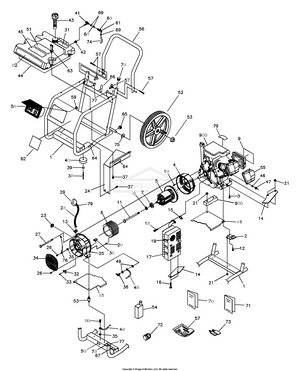

Main Unit

...
...
1
FRAME BS-M189457GS
...
2
MOUNT, Vibration 45°. BS-70642GS
...
3
TPHMS, M8 - 1.25 x 35 BS-195398GS
...
4
HOUSING, Engine Adapter BS-66365GGS
...
5
ASSEMBLY, Rotor (Inclds Item 7) BS-187746GS
...
6
ASSEMBLY, Stator BS-187745GS
...
7
BEARING BS-65791GS
...
8
WASHER, M8 Flat BS-96796GS
...
9
DECAL, Cover Air Cleaner BS-189635GS
...
10
SCREW, SEMS BS-86307GS
...
11
SCREW BS-99383GS
...
12
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
13
GROMMET, Rubber BS-189127GS
...
14
BRACKET, Muffler BS-189009GS
...
15
GASKET, Exhaust BS-695398
...
16
SCREW, M6-1 x 12 w/Lock Washer BS-66476GS
...
17
MUFFLER BS-189008GS
...
18
SCREW BS-60706GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
PIN, 4mm x 10 Roll BS-81917GS
...
21
NUT, Flange Serrated BS-67989GS
...
22
MOUNT-VIBRATION BS-194153GS
...
23
GROMMET, Rubber BS-67022GS
...
24
SHIELD, Heat BS-J189011GS
...
25
CARRIER, Rear Bearing BS-SRV66825DGS
...
26
TAPTITE, M5-0.8 x 10 BS-74908GS
...
27
BOLT, M6-1 x 145mm Stator BS-86308AGS
...
28
SLEEVING, Flexo BS-84409GS
...
29
FASTEN, On Tab Housing 6P BS-22695GS
...
30
GROMMET, Plastic BS-84242GS
...
31
DECAL, Fuel Tank BS-188333GS
...
32
ASSEMBLY, Brush Holder BS-91825GS
...
33
TAPTITE, M5-0.8 x 16 BS-66849GS
...
34
COVER, Bearing Carrier BS-B4871GS
...
35
WASHER, Ext. Shakeproof BS-23762GS
...
36
SCREW, M6-1.0 x 16 Wing BS-86494GS
...
37
SELF DRILLER BS-B2153GS
...
38
BLIND RIVET BS-188194GS
...
39
WASHER, Flat BS-71693GS
...
40
VIBE MOUNT, with Washer BS-191413GS
...
41
Kit, Valve BS-192980GS
...
42
Kit, Valve BS-192980GS
...
43
CAP, Fuel Gauge BS-189420GS
...
44
ASSY,Tank, Fuel (Includes Items 41 & 42) BS-193547GS
...
45
DECAL, Start Instructions BS-189235GS
...
46
WASHER BS-22097GS
...
47
NUT, Hex, 1/4-20 BS-22127GS
...
48
WIRE, Ground BS-195373GS
...
49
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
50
DECAL, Ground, Green BS-B4986GS
...
51
DECAL, Danger BS-194799GS
...
52
KIT,Wheel BS-193548GS
...
53
PUSHNUT BS-190146GS
...
54
BOTTLE, Oil, 28 oz BS-BB3061GS
...
55
HOOD, Rocker Arm Cover BS-187330GS
...
56
HANDLE BS-M188205GS
...
57
KIT, Handle Fastening BS-189456GS
...
58
ASSEMBLY, Control Panel BS-189157GS
...
59
NUT, Palnut BS-189164GS
...
60
QUICK CONNECT, Fuel BS-189117GS
...
61
KIT, Hose Fuel w/ Clamps (cut to fit) BS-199838GS
...
62
DECAL, Logo BS-189634GS
...
63
KNOB, Fuel Tank Hold Down BS-189114GS
...
64
DECAL, Hot Muffler BS-77816GS
...
65
CAP PLUG. BS-189332GS
...
66
DECAL, Shut-Off, Fuel BS-73054GS
...
67
DECAL, 1-800 # BS-20566GS
...
68
HOSE BS-189867AGS
...
69
CLAMP, Hose BS-691038
...
70
MANUAL, Owners BS-189628GS
...
71
MANUAL, Engine BS-188826GS
...
72
PLUG, 250V, 30A BS-43438GS
...
73
STABILIZER, 1oz Tube BS-189208GS
...
74
HOSE BS-189867BGS
...
75
WASHER, M12 Flat BS-49808GS
...
76
WIRE, Ground Panel BS-189521AGS
...
77
PIN, with Lanyard BS-B4135GS
...
78
CAP PLUG BS-189332AGS
...
79
TIE WRAP BS-28739AGS
...
80
SCREW BS-313085GS
...
81
PLATE, Stiffener BS-M190018GS
...
82
DECAL, Removable Fuel Tank BS-190756GS
...
900
ENGINE BS-~NSP

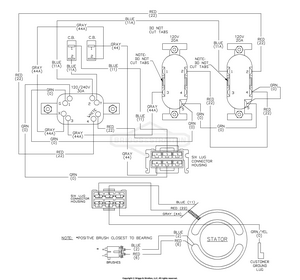

Wiring Diagram

...

No Parts Available for this Schematic

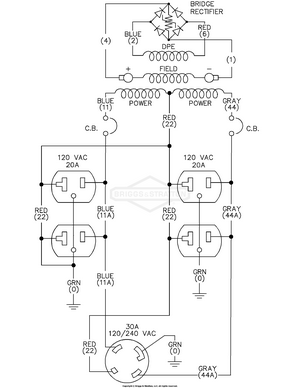

Wiring Schematic

...

No Parts Available for this Schematic

...
...
...
