1645-0 Briggs and Stratton Portable Generator 4,000 EXL

Model: 1645-0

Save Part Not Listed?
product name

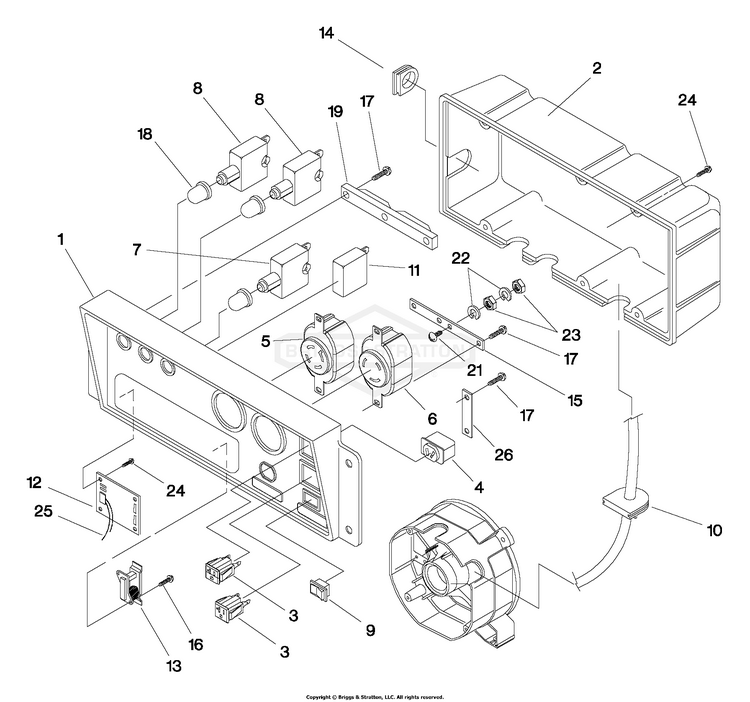

Control Panel

...
...
1
PANEL, Control BS-83976GS
...
2
BOX, Control BS-83975GS
...
3
OUTLET, 120 Volts AC BS-66818GS
...
4
OUTLET, 12 Volts DC BS-66821GS
...
5
OUTLET, 120/240V, 20A BS-68867CGS
...
6
OUTLET-120V TL30A BS-705932
...
7
BREAKER-CIRCUIT 30A BS-706178
...
8
BREAKER, Circuit, 18A BS-75207GGS
...
9
SWITCH, On/Off Rocker BS-82538GS
...
10
GROMMET, Rubber BS-84134GS
...
11
BREAKER, Circuit, 10A BS-83514GS
...
12
CONTROL BOARD, System BS-83970GS
...
13
TRANSFORMER, Idle Control BS-84028GS
...
14
GROMMET, Rubber BS-67022GS
...
15
BAR, Bus BS-85584GS
...
18
SHIELD, Breaker, Circuit BS-84198GS
...
19
BAR, Circuit Breaker Retaining BS-84197GS
...
23
NUT, M3 Hex BS-51715GS
...
25
WIRE HARNESS BS-84335GS
...
26
BAR, DC Outlet Retaining BS-82542GS

Main Unit

...
...
1
CRADLE BS-M197027GS
...
2
KIT, Mount, Vibration 45° BS-194552GS
...
3
PIN, Roll M4 x 10 BS-81917GS
...
4
HOUSING, Engine Adapter BS-66365GS
...
5
ASSY, Rotor w/ Bearing BS-84141JGS
...
6
ASSY, Stator BS-187105AGS
...
7
ASSY, Drive Module Pwr Reg. BS-84132GS
...
8
WASHER BS-96796GS
...
9
SUPPORT, Engine BS-M84021GS
...
11
HHCS, 5/16-24 x 7" Lg. BS-47480GS
...
12
GROMMET, Rubber BS-67022GS
...
13
ASSY, Wire, #55, Black BS-185931HGS
...
14
BRACKET, Muffler BS-83208GS
...
15
GASKET, Exhaust BS-89476GS
...
16
KIT, Vibration Mount BS-194530GS
...
17
MUFFLER BS-83071GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
DECAL, Ground BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
SCREW, Wing M6 - 1.0 x 16 BS-86494GS
...
23
SCREW BS-313085GS
...
24
SHIELD, Heat BS-192986GS
...
25
CARRIER, Rear Bearing BS-SRV66825DGS
...
26
TAPTITE, M5-0.8 x 10 Lg. BS-74908GS
...
27
BOLT, M6 - 1.0 x 115 BS-86308GS
...
28
ASSY, Brush Holder BS-66386GS
...
29
HHCS, M5-0.8 X 16 BS-49815GS
...
31
DECAL, Caution Hot Muffler BS-196830GS
...
34
COVER, Bearing Carrier BS-B4871GS
...
35
CLAMP, Hose BS-189568GS
...
37
SCREW, 12-14 x 7/8, Self Driller BS-B2153GS
...
38
CLIP, Tree BS-B1797GS
...
39
SCREW, 10 - 16 Self Drill BS-195094GS
...
40
KIT, Hardware Fuel Tank (Includes Qty of 4) BS-193661GS
...
41
VALVE-FUEL BS-310573GS
...
43
SWITCH, Starter BS-77282GS
...
44
ASSY, Fuel Tank (Includes Items 41, 50, 51, 52, 53 & 55) BS-193680GS
...
45
CAP, Fuel BS-189135GS
...
47
NUT, M6 Flange Lock BS-77395GS
...
48
WIRE, Ground BS-195373GS
...
50
DECAL, Electric Start BS-78549GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Starting Instructions BS-93826GS
...
53
GAUGE, Fuel BS-189136GS
...
54
KIT, Insulation w/ Clip BS-194527GS
...
55
DECAL, Fuel Shut Off BS-197798GS
...
56
NUT, M8 Flange Serrated BS-67989GS
...
57
TPHMS, M8 - 1.25 x 35 BS-195398GS
...
58
ASSY, Control Panel (see "Control Panel") BS-87116GS
...
59
BEARING BS-65791GS
...
60
SHIELD, Heat BS-J189130GS
...
61
BRACKET, Switch BS-188987GS
...
68
TRAY, Battery BS-192988GS
...
69
BATTERY, 12V, 10A BS-187079GS
...
71
ASSY, Jack, DC BS-192531GS
...
73
LUG, 5/16 #22/18 I-S BS-58359GS
...
76
RECTIFIER, Battery Charge BS-65795GS
...
77
TAPTITE, M5 0.8 x 30 Lg. BS-66849CGS
...
78
ASSY, Wire, #13,Red BS-185931GGS
...
81
ASSY, Wire, #16,Red BS-189302BGS
...
83
HARNESS, Wire, Starter BS-189740GS
...
98
DECAL, Instructions, ES BS-189198GS
...
MANUAL, Engine Parts Not Illustrated BS-A8926GS
...
Front Draw Bar w/Spindles-RH Side Parts Not Illustrated BS-100126
...
CABLE, Battery Charge Parts Not Illustrated BS-65787GS
...
CHARGER, Battery Parts Not Illustrated BS-84002790
...
PLUG, 125V, 30A Parts Not Illustrated BS-100523GS
...
PLUG-120/240V TL20A Parts Not Illustrated BS-100522GS
...
BOTTLE, Oil Parts Not Illustrated BS-BB3061GS
...
MANUAL, Operator's Parts Not Illustrated BS-189189GS
...
MANUAL, Engine Parts Parts Not Illustrated BS-D1456GS
...
VALVE, Fuel Parts Not Illustrated BS-310574GS
...
KIT, Decals Parts Not Illustrated BS-193678GS
...
Cord Wrap Optional Accessories Not Included BS-84883GS

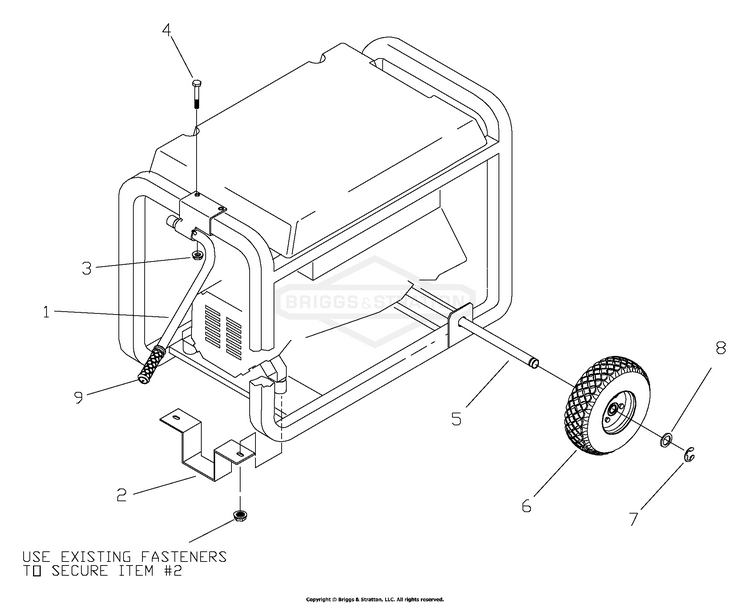

Wheel Kit

...
...
1
ASSY, Handle (Includes Item 9) BS-189715GS
...
2
LEG, Mounting BS-B1764GS
...
3
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
5
AXLE, 5/8" x 20.60" BS-191267FGS
...
6
WHEEL BS-209636GS
...
7
E-RING BS-703977
...
9
GRIP BS-198669GS

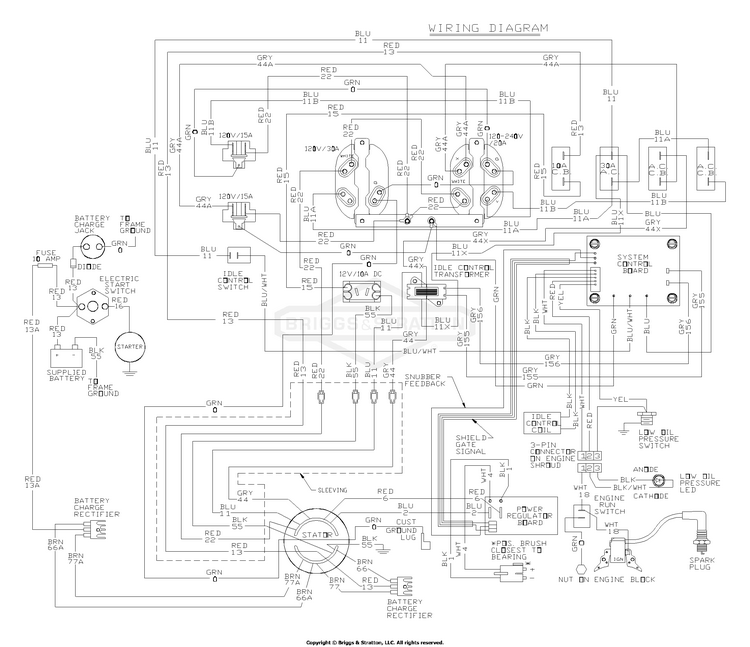

Wiring Diagram

...

No Parts Available for this Schematic

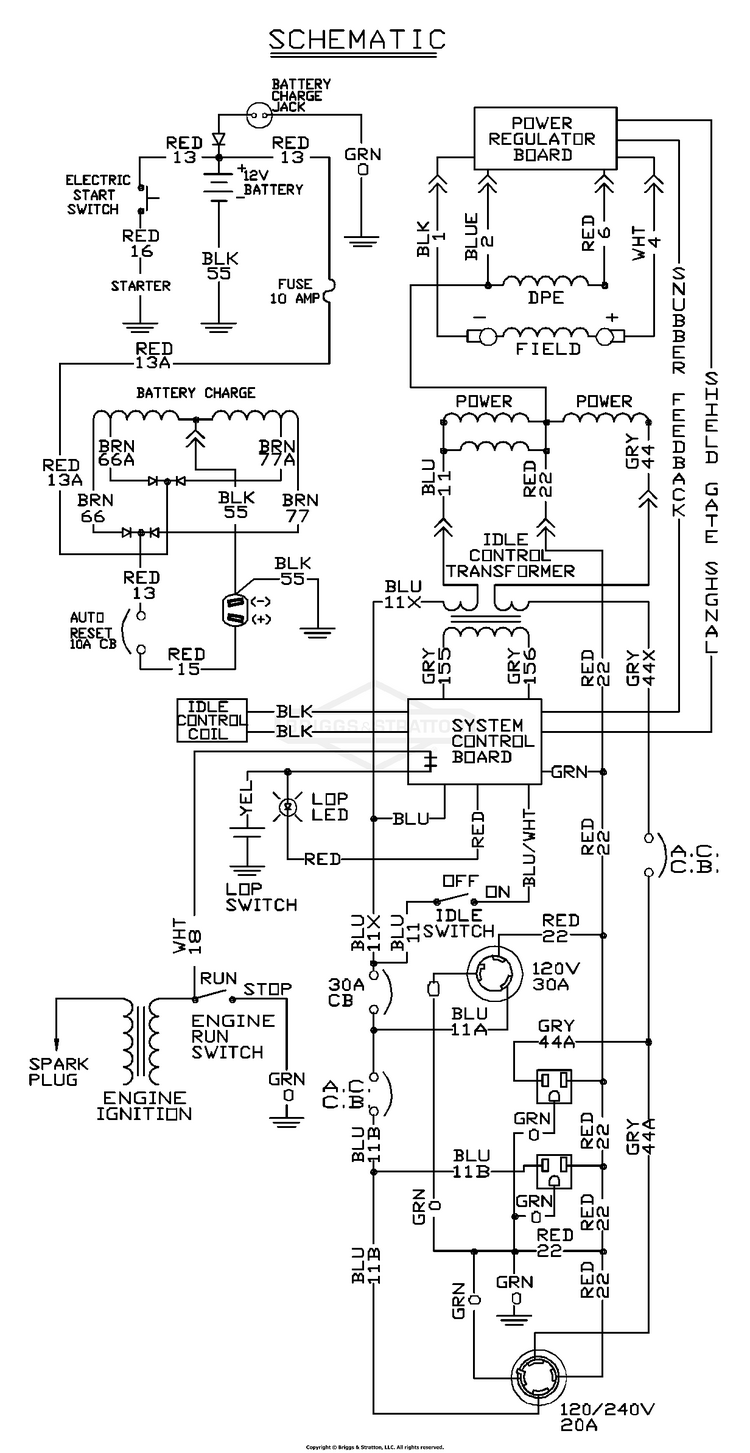

Wiring Schematic

...
