1643-0 Briggs and Stratton Portable Generator 5,000 Watt

Model: 1643-0

Save Part Not Listed?
product name

Popular Parts

Popular Parts

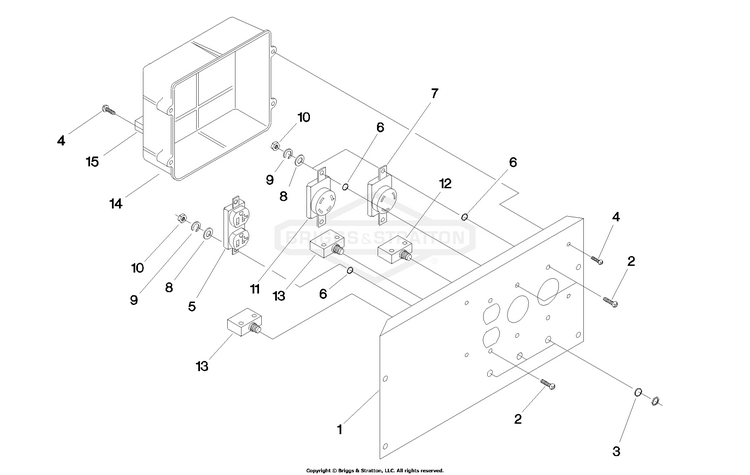

Control Panel

...
...
1
PANEL, Control BS-B81897
...
2
SCREW, M4 - 0.7 x 10mm BS-75475
...
3
WASHER, 7/16" Int Lock BS-82881GS
...
4
SCREW, Self Tapping, STC 3 x 18 BS-82308GS
...
5
OUTLET, 20A,120V BS-68759GS
...
6
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
7
OUTLET-120V TL30A BS-705932
...
8
WASHER BS-38150GS
...
9
WASHER, No. 8 Lock BS-22264
...
10
NUT, M4-0.7 Hex BS-51715GS
...
11
OUTLET, 120/240V Locking, 20A BS-68867GS
...
12
BREAKER-CIRCUIT 30A BS-706178
...
13
BREAKER-CIRCUIT 20A BS-209872GS
...
14
PANEL, Control, Back, Plastic BS-81919GS
...
15
HOUSING, Receptacle BS-22694GS

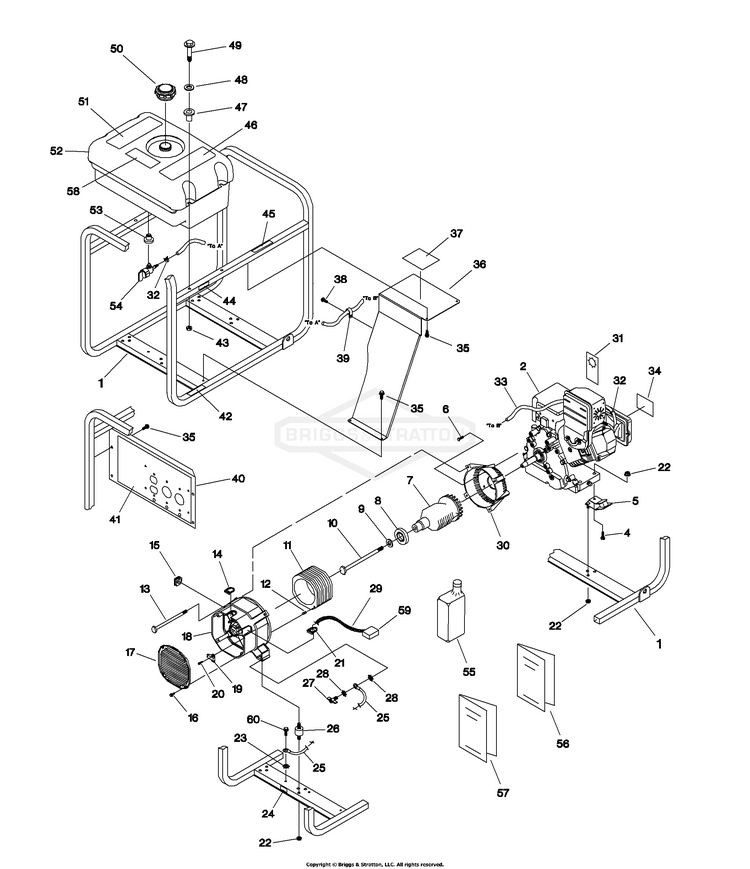

Main Unit

...
...
1
CRADLE BS-A188972
...
2
ENGINE BS-~NSP
...
4
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
5
MOUNT, Vibration 45°. BS-70642GS
...
6
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
7
ASSY, Rotor (Includes Item 8) BS-91844JGS
...
8
BEARING BS-65791GS
...
9
WASHER, M8 Flat BS-96796GS
...
10
FLOOR PLATE BS-5047480B
...
11
ASSY, Stator BS-91859AGS
...
12
PIN, ROLL 4MM x 10 BS-81917GS
...
13
BOLT, Stator BS-86308CGS
...
14
GROMMET, Plastic RBC BS-84242GS
...
15
GROMMET, RUBBER BS-67022GS
...
16
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
17
COVER, Bearing Carrier BS-B4871GS
...
18
CARRIER, Rear Bearing BS-66825B
...
19
ASSY., Brush & Bridge Rectifier BS-91825
...
20
HHCS, M5-0.8 X 16 BS-49815GS
...
21
GROMMET, Bushing BS-189127
...
22
NUT, Hex Locking Flange M8 BS-67989GS
...
23
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
24
DECAL, Ground BS-B4986GS
...
25
WIRE, Ground BS-195373GS
...
26
MOUNT-VIBRATION BS-194153GS
...
27
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
29
SLEEVING, Flexo HW 1/2" x 15" BS-84409
...
30
HOUSING, Engine Adapter BS-66365GGS
...
31
TAG, Oil Warning BS-70453GS
...
32
CLAMP, Hose 1/2" BS-48031C
...
33
HOSE, 1/4" x 21" I.D. SAE-30R7 BS-30340
...
34
Screw, Hex Washer Head, Self Tapping, #10-24 x 1/2 BS-708218
...
35
SCREW, 12-14 x 7/8 Self Drilling BS-B2153GS
...
36
HEAT SHEILD, Muffler BS-J189055
...
37
DECAL,Warning, Handover Heat BS-189316
...
38
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
39
CLAMP, Hose BS-55934GGS
...
40
PANEL, Control BS-189449
...
41
DECAL, Control Panel BS-189077
...
42
DECAL, 1-800 Number BS-20566GS
...
43
NUT, FLANGE LOCK - M6 BS-77395GS
...
44
DECAL, Fuel Shut-Off BS-73054
...
45
DECAL, Hot Muffler BS-77816GS
...
46
DECAL, Start Instruction BS-189235
...
47
GROMMET, Mounting Tank BS-188973
...
48
WASHER, Flat, 6.6 x 21.6 x 1.9 BS-189155
...
49
CAPSC., M6 x 45mm Hx Hd BS-189286
...
50
CAP, Fuel Tank BS-846987
...
51
DECAL, Danger BS-194799GS
...
52
TANK, Fuel, 5 Gallon, Assy. (Includes Items 53 & 54) BS-189074
...
53
Kit, Valve BS-192980GS
...
54
Kit, Valve BS-192980GS
...
55
BOTTLE, Oil BS-BB3061GS
...
56
MANUAL, Generator BS-189079
...
57
MANUAL, Engine BS-188826
...
58
DECAL, Gas Tank Fill BS-188333
...
59
FASTEN, On Tab Housing 6P BS-22695GS
...
60
SCREW BS-313085GS

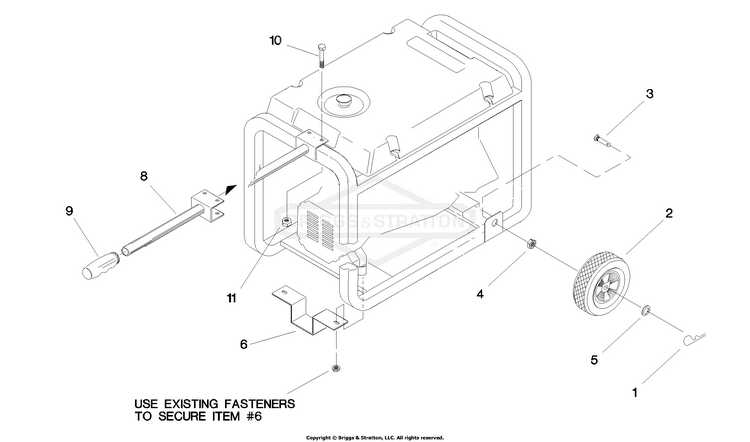

Wheel Kit

...
...
1
PIN, 3/32 X 1.6 BS-703300
...
2
WHEEL BS-197061GS
...
3
STUD,Axle BS-93728GS
...
4
JAM NUT, Lock 5/8" - 18 BS-94222QGS
...
5
WASHER, Flat BS-49808GS
...
6
LEG, Mounting BS-94034
...
8
HANDLE, Lifting BS-B84910
...
9
GRIP, Handle BS-75928GS
...
10
SCREW BS-39287GS
...
11
NUT, Locking Hex M8 - 1.25 BS-52858GS

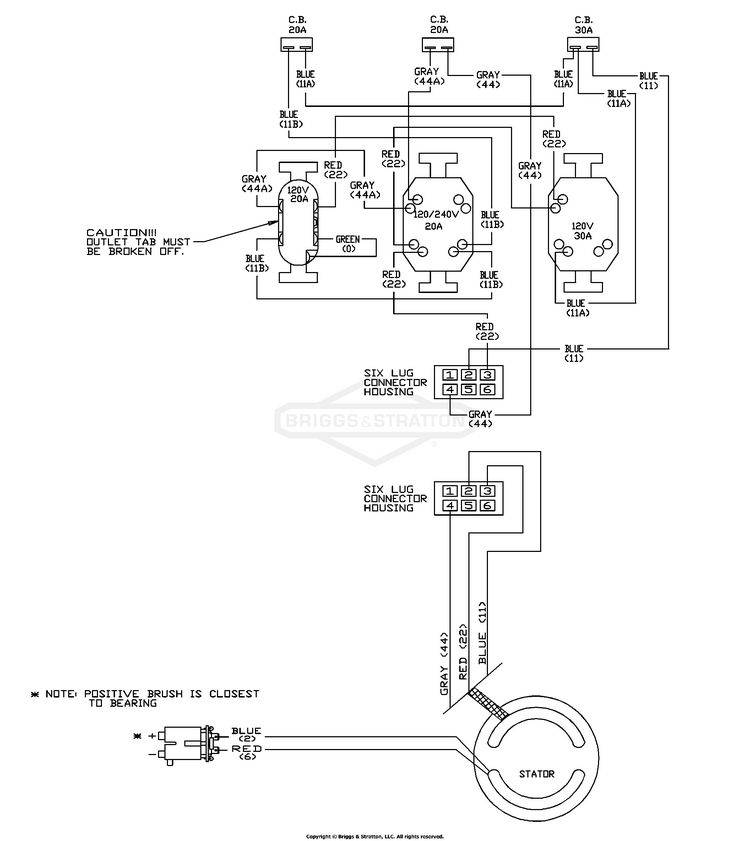

Wiring Diagram

...

No Parts Available for this Schematic

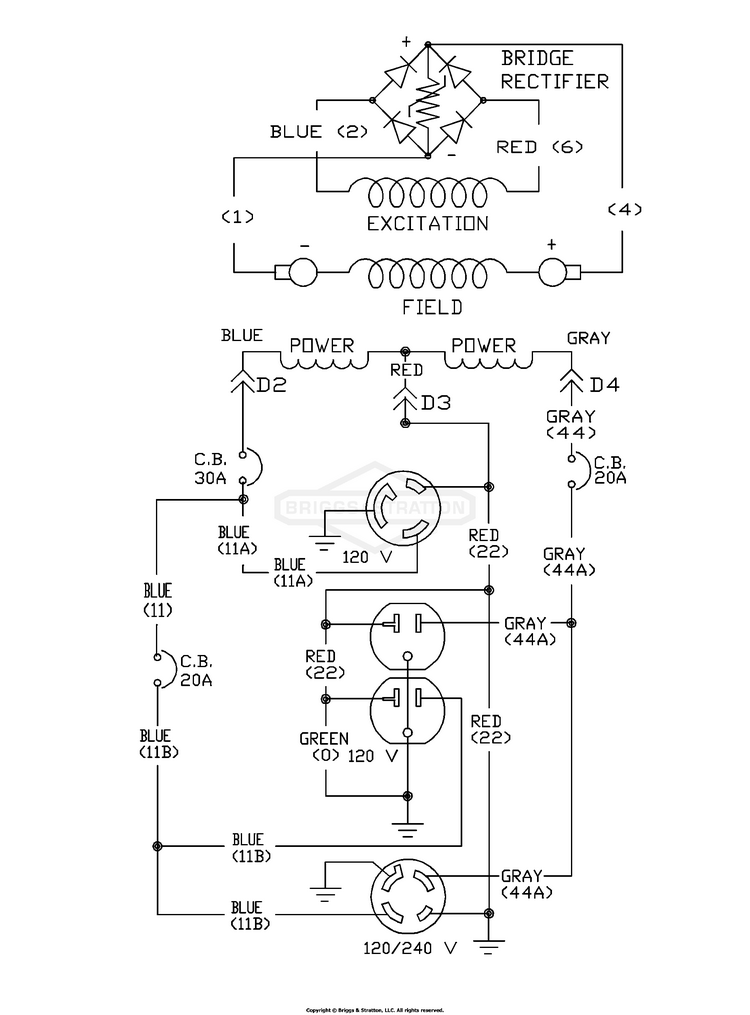

Wiring Schematic

...

No Parts Available for this Schematic
