1629-0 Briggs and Stratton Generator BSQ 4500

Model: 1629-0

Back To Assemblies

Save Part Not Listed?
product name

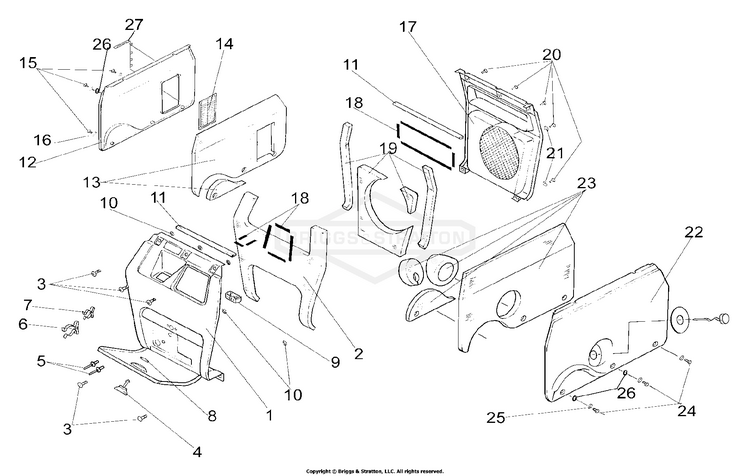

Acoustic Panels

...
...
1
PANEL ENGINE END BS-102126GS
...
3
FASTENER STUD RAPIER 7MM BS-102179GS
...
4
FASTENER STUD PLASTIC KNOB BS-102183GS
...
5
RIVET POP CSHD 3.2*11MM BS-~NSP
...
6
PIPE-CLIP 1" OD BS-102162GS
...
7
PIPE CLIP 3/4" BS-102163GS
...
8
RETAINER 1/4 TURN FASTENER DART BS-102196GS
...
9
FASTENER RECEPTACLE 1/4 TURN BS-102182GS
...
10
RETAINER 1/4 TURN FASTENER 7MM BS-102195GS
...
11
SEAL EDGE MOUNTING 2MM PANEL BS-102181GS
...
12
PANEL EXHAUST SIDE (INCLUDES GRILL) BS-102128GS
...
15
SCREW SET M6*20 SLOTTED HEAD BS-102201GS
...
16
WASHER PLAIN M6 BS-~NSP
...
17
PANEL OUTLET END INC. FAN COWLING & GRILL BS-102127GS
...
18
FOAM SEALING TAPE3*6MM BS-~NSP
...
20
SCREW SET M6*20 SLOTTED HEAD BS-102201GS
...
21
WASHER PLAIN M6 BS-~NSP
...
22
PANEL OIL FILL SIDE BS-102129GS
...
24
SCREW SET M6*20 SLOTTED HEAD BS-102201GS
...
25
WASHER PLAIN M6 BS-~NSP
...
26
WASHER RUBBER 19*6*4MM BS-102560GS
...
27
DEFLECTOR STRIP AIR OUT GRILL BS-102747GS
