15T202-0125-F8 Briggs and Stratton Engine

Model: 15T202-0125-F8

Save
 Don't See Your Part Listed?
product name

Air Cleaner, Exhaust System

...
...
11
TUBE, Breather (Flat Panel Air Cleaner) BS-692600
...
11B
TUBE, Breather (Ultra Low Mount Air Cleaner) BS-790632
...
161
BASE-AIR CLEANER (Flat Panel Air Cleaner) BS-699207
...
161A
BASE, Air Cleaner (Ultra Low Mount Air Cleaner) BS-790631
...
163A
GASKET, Air Cleaner (High Mount) BS-792870
...
163B
GASKET, Air Cleaner (Flat Panel Air Cleaner) BS-696024
...
300
MUFFLER BS-693593
...
300A
MUFFLER BS-797433
...
346
SCREW (Spark Arrestor) (SAE) BS-690661
...
346
SCREW (Spark Arrestor) (Metric) BS-699203
...
425
SCREW (Air Cleaner Cover) BS-699208
...
425A
SCREW (Air Cleaner Cover) BS-699492
...
445
FILTER, A/C Cartridge BS-595030
...
613
SCREW (Muffler) BS-791972
...
613A
SCREW (Muffler) BS-699481
...
613B
SCREW (Muffler) BS-799081
...
676
DEFLECTOR, Muffler BS-796956
...
676A
DEFLECTOR, Muffler BS-697816
...
677
SCREW (Muffler Deflector) (SAE) BS-690661
...
677
SCREW (Muffler Deflector) (Metric) BS-699203
...
677A
SCREW (Muffler Deflector) BS-699776
...
819
SCREW (Muffler Bracket) BS-699233
...
819A
SCREW (Muffler Bracket) BS-699481
...
823
SCREW (Muffler Adapter) BS-791972
...
832
GUARD-MUFFLER (Lo Tone) BS-593953
...
836
SCREW (Muffler Guard) BS-699203
...
836A
SCREW (Muffler Guard) BS-594002
...
863
BRACKET, Muffler BS-699229
...
864
ADAPTER, Muffler BS-699232
...
883
GASKET-EXHAUST (Between Adapter And Cylinder) BS-691893
...
883A
GASKET-EXHAUST BS-692237
...
964
CAP, Connector BS-799159
...
967
FILTER, Air Cleaner Foam (Flat Panel) BS-493537S
...
968
COVER, Air Cleaner (Flat Panel Air Cleaner) BS-692584
...
968B
COVER-AIR CLEANER (Ultra Low Mount Air Cleaner) BS-791082
...
971
SCREW (Air Cleaner Base to Carburetor/Throttle Body) (SAE) BS-690370
...
971
SCREW (Air Cleaner Base to Carburetor/Throttle Body) (Metric) BS-798649
...
994A
ARRESTOR, Spark BS-399541

Blower Housing, Electric Starter, Flywheel, Rewind Starter

...
...
23
FLYWHEEL BS-798821
...
37
GUARD, Flywheel BS-699661
...
55
HOUSING, Rewind Starter Used After Code Date 08030200 Used Before Code Date 12010100 BS-791848
...
55
HOUSING, Rewind Starter Used Before Code Date 08030300 BS-691422
...
58
ROPE, Starter (Cut To Required Length) BS-693389
...
60
GRIP-STARTER ROPE (2 Piece) BS-490652
...
65
SCREW (Rewind Starter) BS-699228
...
78
SCREW (Flywheel Guard) BS-699205
...
304
HOUSING, Blower BS-699598
...
305
SCREW (Blower Housing) BS-699481
...
309
MOTOR, Starter BS-798790
...
310
SCREW (Starter Motor) BS-690323
...
311
SET, Brush BS-497608
...
332
NUT (Flywheel) BS-591988
...
363
PULLER, Flywheel BS-19203
...
455
CUP-FLYWHEEL BS-591302
...
456
PLATE-PAWL FRICTION Used Before Code Date 12010100 BS-692299
...
459
PAWL-RATCHET Used Before Code Date 12010100 BS-281505S
...
510
DRIVE-STARTER BS-499308
...
513
CLUTCH-DRIVE BS-692024
...
597
SCREW (Pawl Friction Plate) Used Before Code Date 12010100 BS-691696
...
608C
STARTER, Rewind BS-591301
...
675
WASHER (Brush Retainer) BS-691261
...
689
SPRING-FRICTION Used Before Code Date 12010100 BS-691855
...
697
KIT-SCREW/WASHER (Starter Motor) (Drive Cap) BS-793567
...
725
SHIELD, Heat BS-792874
...
727
COVER-STARTER DRIVE BS-698039
...
728
SCREW (Heat Shield) BS-699491
...
732
SCREW (Starter Drive Cover) BS-699200
...
735
CORD, Starter BS-795901
...
783
GEAR-PINION BS-692353
...
797
NUT (Brush Retainer) BS-691029
...
801
CAP-DRIVE BS-694482
...
802
CAP-END BS-691286
...
1005A
FAN, Flywheel BS-794273
...
1051
RING, Retaining BS-691265
...
1059
KIT-SCREW/WASHER BS-793567
...
1070
SCREW (Flywheel Fan) BS-699201
...
1090
RETAINER-BRUSH BS-691293
...
1210
PULLEY/SPRING ASSY (Pulley) Used Before Code Date 08030300 BS-498144
...
1210
PULLEY/SPRING ASSEMBLY (Pulley) Used After Code Date 08030200 Used Before Code Date 12010100 BS-791849
...
1211
PULLEY/SPRING ASSEMBLY (Spring) (Not Serviced Separate. Service With Rewind Assembly.) Used After Code Date 11123100 BS-791849
...
1211
PULLEY/SPRING ASSY (Spring) Used Before Code Date 08030300 BS-498144
...
1211
PULLEY/SPRING ASSEMBLY (Spring) Used After Code Date 08030200 Used Before Code Date 12010100 BS-791849

Camshaft, Crankshaft, Cylinder, Piston Group

...
...
1
CYLINDER ASSEMBLY BS-794188
...
2
KIT, Bushing/Seal (Magneto Side) BS-796961
...
3
SEAL, Oil (Magneto Side) BS-299819S
...
7B
GASKET, Cylinder Head BS-791716
...
12
GASKET-CRANKCASE BS-699485
...
15
PLUG-OIL DRAIN (Square Head)(1/4" Diameter) BS-691686
...
15A
PLUG-OIL DRAIN (Hex Socket)(1/4 Diameter) BS-691682
...
16
CRANKSHAFT Used Before Code Date 15040900 BS-593495
...
16
CRANKSHAFT Used After Code Date 15040800 BS-797070
...
17
BEARING-BALL BS-798538
...
20
SEAL-OIL (PTO Side) BS-692550
...
20A
SEAL, Oil (PTO Side) BS-691952
...
24
KEY, Flywheel BS-796335
...
25
PISTON ASSEMBLY (.020 Oversize) BS-791791
...
25
PISTON ASSEMBLY (Standard) BS-791786
...
26
SET, Ring (.020" Oversize) BS-791792
...
26
SET, Ring (Standard) BS-791787
...
27
LOCK, Piston Pin BS-690975
...
28
PIN-PISTON/STD (Standard) BS-690229
...
29B
ROD, Connecting BS-791783
...
32B
SCREW (Connecting Rod) BS-791784
...
46
CAMSHAFT BS-693404
...
46A
CAMSHAFT BS-695285
...
51
GASKET, Intake (2 Required) BS-692555
...
51A
GASKET, Intake BS-791718
...
163A
GASKET, Air Cleaner (High Mount) BS-792870
...
163B
GASKET, Air Cleaner (Flat Panel Air Cleaner) BS-696024
...
306
SHIELD, Cylinder Used After Code Date 14091100 BS-594516
...
306
SHIELD-CYLINDER Used Before Code Date 14091200 BS-795334
...
307
SCREW (Cylinder Shield) BS-794822
...
332
NUT (Flywheel) BS-591988
...
358B
GASKET SET, Engine BS-791797
...
377
KEY, Woodruff BS-690979
...
552
BUSHING, Governor Crank BS-692346
...
584
COVER, Breather Passage BS-791759
...
585
GASKET, Breather Passage BS-791760
...
615
RETAINER, Governor Shaft BS-692576
...
616
CRANK, Governor BS-692547
...
684
SCREW (Breather Passage Cover) BS-793369
...
718
PIN, Locating BS-592860
...
741
GEAR, Timing (Plastic) Used Before Code Date 15040900 BS-593499
...
741
GEAR-TIMING (Metal) Used After Code Date 15040800 BS-695087
...
868
SEAL-VALVE BS-795440
...
883
GASKET-EXHAUST (Between Adapter And Cylinder) BS-691893
...
883A
GASKET-EXHAUST BS-692237
...
993
GASKET-CYL HD PLATE BS-694088
...
1022
GASKET-ROCKER COVER BS-691890
...
1319
LABEL, Warning BS-794467
...
1319A
LABEL, Warning BS-797669
...
1330
MANUAL, Repair BS-272147

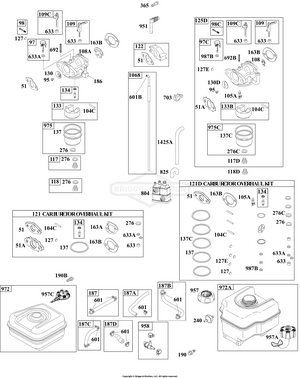

Carburetor, Fuel Supply

...
...
51
GASKET, Intake (2 Required) BS-692555
...
51A
GASKET, Intake BS-791718
...
95
SCREW (Throttle Valve) BS-691636
...
97
SHAFT, Throttle BS-690024
...
97C
SHAFT, Throttle BS-797628
...
98
KIT-IDLE SPEED (Carburetor) BS-398185
...
98C
KIT, Idle Speed BS-797156
...
104C
PIN-FLOAT HINGE BS-797622
...
105A
VALVE, Float Needle BS-797139
...
108
VALVE-CHOKE BS-692567
...
108A
VALVE, Choke BS-796993
...
109
SHAFT, Choke BS-690023
...
109C
SHAFT, Choke BS-790624
...
117
JET, Main (Standard) BS-690048
...
117D
JET, Main (Standard) BS-798652
...
118
JET, Main (High Altitude) BS-497315
...
118D
JET, Main (High Altitude) BS-799178
...
121
KIT, Carburetor Overhaul BS-792006
...
121D
KIT, Carburetor Overhaul BS-797634
...
122
SPACER, Carburetor (Black) BS-795643
...
125D
CARBURETOR BS-798654
...
127
PLUG-WELCH BS-691739
...
127E
PLUG, Welch BS-797633
...
130
VALVE-THROTTLE BS-691181
...
130D
VALVE, Throttle BS-797630
...
133
FLOAT-CARBURETOR BS-398187
...
133B
FLOAT, Carburetor BS-797136
...
134
KIT-NEEDLE/SEAT BS-398188
...
137
GASKET-FLOAT BOWL BS-693981
...
137C
GASKET, Float Bowl BS-797625
...
163A
GASKET, Air Cleaner (High Mount) BS-792870
...
163B
GASKET, Air Cleaner (Flat Panel Air Cleaner) BS-696024
...
186
CONNECTOR-HOSE BS-692317
...
187
LINE, Fuel (Cut To Required Length) BS-791766
...
187A
LINE, Fuel (Molded) BS-791867
...
187C
LINE-FUEL (Molded) BS-791866
...
187B
LINE, Fuel (Molded) BS-791874
...
187D
LINE, Fuel (Molded) BS-795046
...
190
SCREW (Fuel Tank) BS-597133
...
190B
SCREW (Fuel Tank) BS-795047
...
240
FILTER-FUEL BS-394358S
...
276
WASHER-SEALING BS-271716
...
276C
WASHER, Sealing BS-797632
...
365
SCREW (Carburetor) BS-699484
...
601
CLAMP, Hose BS-791850
...
601B
CLAMP, Hose BS-795230
...
633
SEAL, Choke/Throttle Shaft BS-693867
...
633A
SEAL-CHOKE/THR SHAFT (Throttle Shaft) BS-691321
...
692
SPRING, Detent (Carburetor) BS-590931
...
692B
SPRING, Detent (Carburetor) BS-797624
...
703
CLIP BS-795222
...
804
CANISTER, Carbon (EVAP) BS-795223
...
825
HOSE, Air BS-795226
...
951
LEVER, Choke BS-790630
...
957
CAP, Fuel Tank BS-795027
...
957A
CAP, Fuel Tank BS-799719
...
957C
CAP, Fuel Tank BS-795221
...
958
VALVE-FUEL SHUT OFF BS-698180
...
972
TANK, Fuel BS-795705
...
972A
TANK, Fuel BS-799863
...
975
BOWL, Float BS-796611
...
975C
BOWL, Float BS-797631
...
987B
SEAL, Choke/Throttle Shaft BS-797629
...
1068
HOSE/CLAMP ASSEMBLY BS-795229
...
1425A
HOSE, Purge Line BS-795741

Controls, Governor Spring, Ignition

...
...
188
SCREW (Control Bracket) BS-699479
...
209
SPRING, Governor (Yellow) BS-693206
...
222D
BRACKET, Control BS-793107
...
222E
BRACKET, Control BS-793108
...
227
LEVER-GOVERNOR CONTRO BS-794367
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-699492
...
268
CASING, Control Wire (Cut To Required Length) BS-691025
...
269
WIRE, Control (Cut To Required Length) BS-26634
...
270
NUT (Control Wire Casing) BS-691027
...
271
LEVER, Control BS-691028
...
271A
LEVER, Control BS-694256
...
271B
LEVER, Control BS-695743
...
281
PANEL, Control BS-793122
...
333
ARMATURE, Magneto BS-591101
...
334
SCREW (Magneto Armature) BS-699477
...
347
SWITCH, Rocker BS-795333
...
356
WIRE, Stop BS-693651
...
356A
WIRE, Stop BS-692390
...
356E
WIRE, Stop BS-695814
...
356M
WIRE, Stop BS-792609
...
356F
WIRE, Stop BS-697397
...
356B
WIRE-STOP BS-692602
...
356C
WIRE, Stop BS-695630
...
427
NUT (Control Bracket) (SAE) BS-694255
...
427
NUT (Control Bracket) (Metric) BS-798458
...
474
ALTERNATOR (3 Amp. DC) BS-695730
...
474A
ALTERNATOR (1.5 Amps DC) BS-793640
...
493
BRACKET, Mounting BS-691177
...
497
SCREW (Stopswitch Bracket) BS-691693
...
500A
WASHER (Key Switch) BS-792613
...
501
REGULATOR BS-794360
...
503
STRAP-STARTER BS-691532
...
504
SET, Friction Washer BS-695383
...
505
NUT (Governor Control Lever) BS-691251
...
526
SCREW (Regulator) BS-690326
...
562
BOLT (Governor Control Lever) BS-691119
...
564
SCREW (Control Cover) BS-699491
...
564A
SCREW (Control Cover) BS-699206
...
577
CABLE, Starter BS-690795
...
578
WIRE ASSEMBLY BS-692306
...
578B
WIRE ASSEMBLY BS-790948
...
579
NUT (Starter Cable) BS-691029
...
604
COVER-CONTROL BS-697326
...
621
SWITCH, Stop BS-692310
...
627
BRACKET, Stopswitch BS-792608
...
632
SPRING/LINK, Mechanical Governor BS-693408
...
652
SCREW (Support Bracket) BS-699755
...
652A
SCREW (Support Bracket) BS-699230
...
663
SCREW (Control Panel) BS-699206
...
668
SPACER BS-694257
...
773
RETAINER (Control Bracket) BS-694258
...
813
CLAMP BS-690635
...
843A
SLEEVE, Lever BS-695588
...
851
TERMINAL-SPARK PLUG BS-493880S
...
890
BRACKET, Support BS-790203
...
892
SWITCH, Key BS-791944
...
920
SOLENOID, Starter BS-846820
...
990
KEY SET BS-794696
...
1054
TIE, Cable BS-280275
...
1119
SCREW (Alternator) BS-699772
...
1230
STUD (Control Bracket) BS-699847

Crankcase Cover, Lubrication

...
...
12
GASKET-CRANKCASE BS-699485
...
17
BEARING-BALL BS-798538
...
18
COVER, Crankcase BS-699804
...
20
SEAL-OIL (PTO Side) BS-692550
...
20A
SEAL, Oil (PTO Side) BS-691952
...
21
CAP-OIL FILL BS-281658S
...
22
SCREW (Crankcase Cover/Sump) BS-594519
...
219
GEAR, Governor BS-693578
...
220
WASHER (Governor Gear) BS-691724
...
286
MODULE, Oil Sensor BS-794185
...
287
SCREW (Dipstick Tube) BS-699234
...
364
TERMINAL, Oil Plug BS-695693
...
415
PLUG (Crankcase Cover/Sump) BS-693463
...
522
PLUG, Dipstick/Fill BS-798503
...
523
DIPSTICK BS-693618
...
524
SEAL-DIPSTICK TUBE (Dipstick Tube) BS-281370S
...
742
RETAINER, E Ring (Idler Gear) BS-692564
...
746
GEAR-IDLER BS-790278
...
799
SCREW (Oil Sensor) BS-699202
...
842
SEAL, O-Ring (Dipstick Tube) BS-795015
...
847
DIPSTICK/TUBE ASSEMBLY BS-693617
...
1052
SENSOR, Oil BS-790141
...
1305
SCREW (Oil Sensor Module) BS-699691

Cylinder Head

...
...
5
HEAD, Cylinder Used After Code Date 14090300 BS-594701
...
5A
HEAD, Cylinder Used Before Code Date 14090400 BS-791720
...
7B
GASKET, Cylinder Head BS-791716
...
13
SCREW (Cylinder Head) Used Before Code Date 14090100 BS-594518
...
13
SCREW (Cylinder Head) Used After Code Date 14083100 BS-594518
...
33
VALVE, Exhaust BS-499642
...
34
VALVE, Intake BS-795443
...
35
SPRING, Valve (Intake) BS-691304
...
36
SPRING, Valve (Exhaust) BS-691304
...
40
RETAINER, Valve BS-692194
...
45
TAPPET, Valve BS-690977
...
51
GASKET, Intake (2 Required) BS-692555
...
51A
GASKET, Intake BS-791718
...
122
SPACER, Carburetor (Black) BS-795643
...
155
PLATE, Cylinder Head (Metric) Used After Code Date 09061700 BS-797442
...
155
PLATE, Cylinder Head (SAE) Used Before Code Date 09061800 BS-698214
...
192
ADJUSTER. Rocker Arm Used After Code Date 14083100 BS-594382
...
192
ADJUSTER-ROCKER ARM (SAE) Used Before Code Date 09061800 BS-694543
...
192
ADJUSTER. Rocker Arm (Metric) Used After Code Date 09061700 Used Before Code Date 14090100 BS-797440
...
238
CAP, Valve BS-691300
...
337
PLUG, SPARK (Resistor) BS-84007216
...
337
PLUG, SPARK (China Only) BS-84007216
...
365
SCREW (Carburetor) BS-699484
...
383
WRENCH, Spark Plug BS-19576S
...
553
RETAINER, Valve BS-594515
...
585
GASKET, Breather Passage BS-791760
...
619
SCREW (Cylinder Head Plate) BS-699481
...
635
BOOT, Spark Plug BS-692076
...
635A
BOOT-SPARK PLUG BS-798619
...
830
STUD, Rocker Arm (Rocker Arm) (Metric) Used After Code Date 09061700 Used Before Code Date 14090400 BS-797441
...
830
STUD-ROCKER ARM (Rocker Arm) (SAE) Used Before Code Date 09061800 BS-694544
...
830
STUD, Rocker Arm (Rocker Arm) Used After Code Date 14090300 BS-594230
...
868
SEAL-VALVE BS-795440
...
914
SCREW (Rocker Cover) (Bottom) BS-699481
...
914A
SCREW (Rocker Cover) (Quantity 1 Top Or Center) Used After Code Date 14083100 BS-594517
...
914A
SCREW (Rocker Cover) (Top) Used Before Code Date 09061800 BS-692557
...
914A
SCREW (Rocker Cover) (Quantity 1 Top Or Center) Used After Code Date 09061700 Used Before Code Date 14090100 BS-797444
...
914B
SCREW (Rocker Cover) (Center) Used Before Code Date 09061800 BS-691108
...
993
GASKET-CYL HD PLATE BS-694088
...
1022
GASKET-ROCKER COVER BS-691890
...
1023
COVER-ROCKER BS-595245
...
1026
ROD, Push BS-790287
...
1029
ARM, Rocker (SAE) Used Before Code Date 09061800 BS-691230
...
1029
ARM, Rocker (Metric) Used After Code Date 09061700 BS-797443
...
1034
GUIDE, Push Rod Used After Code Date 14090300 BS-594229
...
1034
GUIDE-PUSH ROD Used Before Code Date 14090400 BS-691343
...
1095A
GASKET SET, Valve BS-791798

Replacement Engine - US & Canada

...

No Parts Available for this Schematic

...
...
...
...
Processing
