15A193-0118-E1 Briggs and Stratton Engine

Model: 15A193-0118-E1

Save
Part Not Listed?Part Not Listed?

product name

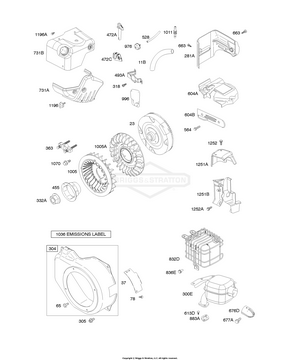

Blower Housing/Shrouds, Exhaust System, Flywheel

...
...
11B
TUBE, Breather BS-695745

...
23
FLYWHEEL BS-699516

...
37
GUARD, Flywheel BS-699661

...
65
SCREW (Rewind Starter) BS-699228

...
78
SCREW (Flywheel Guard) BS-699205

...
281A
PANEL, Control BS-793122

...
300E
MUFFLER Used After Code Date 05101800 Used Before Code Date 08120100 BS-594222

...
300E
MUFFLER Used After Code Date 05113000 BS-594222

...
300E
MUFFLER Used Before Code Date 05101900 BS-790548

...
304
HOUSING, Blower BS-699598

...
305
SCREW (Blower Housing) BS-699481

...
318
SCREW (Mounting Bracket) (SAE) BS-690370

...
318
SCREW (Mounting Bracket) (Metric) BS-798649

...
332A
NUT (Flywheel) BS-591988

...
363
PULLER, Flywheel BS-19203

...
455
CUP, Flywheel Used After Code Date 10071900 BS-797431

...
455
CUP, Flywheel Used Before Code Date 10072000 BS-591302

...
472A
KNOB-CHOKE SHAFT BS-790553

...
472C
KNOB, Choke Shaft BS-791948

...
493A
BRACKET, Mounting BS-695744

...
528
HOSE, Primer BS-793006

...
564
SCREW (Control Cover) BS-699854

...
604A
COVER, Control BS-793134

...
604B
COVER, Control BS-790473

...
613D
SCREW (Muffler) BS-791972

...
663
SCREW (Control Panel) BS-699854

...
676D
DEFLECTOR, Muffler BS-794213

...
677A
SCREW (Muffler Deflector) BS-699776

...
731A
HOOD, Snow BS-794589

...
731B
HOOD, Snow BS-798456

...
832D
MUFFLER BS-793193

...
836E
SCREW (Muffler Guard) BS-699854

...
883A
GASKET-EXHAUST BS-691893

...
976
PRIMER, Carburetor Used Before Code Date 06110600 BS-793382

...
976
PRIMER, Carburetor Used After Code Date 06110500 BS-793382

...
996
ARRESTER-INTAKE BS-794614

...
1005
FAN-FLYWHEEL BS-555778

...
1005A
FAN, Flywheel BS-794273

...
1011
TUBE, Vent BS-794544

...
1070
SCREW (Flywheel Fan) BS-699201

...
1196
SCREW (Snow Hood) BS-798785

...
1196A
SCREW (Snow Hood) BS-699854

...
1251A
SHIELD, Snow Used Before Code Date 08120100 BS-594228

...
1251A
SHIELD, Snow Used After Code Date 08113000 BS-594231

...
1251B
SHIELD, Snow BS-594228

...
1252
SCREW (Snow Shield) BS-699234

...
1252A
SCREW (Snow Shield) BS-699491

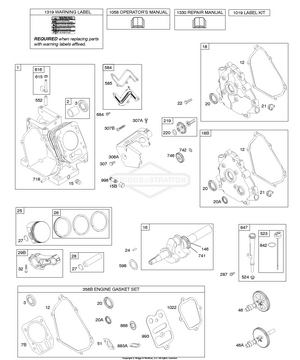

Camshaft, Crankcase Cover, Crankshaft, Cylinder, Lubrication, Piston Group

...
...
1
CYLINDER ASSEMBLY BS-794188

...
2
KIT, Bushing/Seal (Magneto Side) BS-796961

...
3
SEAL, Oil (Magneto Side) BS-299819S

...
7B
GASKET, Cylinder Head BS-791716

...
12
GASKET, Crankcase BS-699485

...
15
PLUG-OIL DRAIN BS-691686

...
15B
PLUG, Oil Drain BS-695757

...
16
CRANKSHAFT BS-793195

...
18
COVER, Crankcase BS-699804

...
18B
COVER, Crankcase BS-699677

...
20
SEAL-OIL (PTO Side) BS-692550

...
20A
SEAL, Oil (PTO Side) (Auxiliary Drive) BS-691952

...
21
CAP, Oil Fill BS-281658S

...
22
SCREW (Crankcase Cover/Sump) BS-594761

...
24
KEY, Flywheel BS-796335

...
25
PISTON ASSEMBLY (.020 Oversize) BS-791791

...
25
PISTON ASSEMBLY (Standard) BS-791786

...
26
SET, Ring (Standard) BS-791787

...
26
SET, Ring (.020 Oversize) BS-791792

...
27
LOCK, Piston Pin BS-690975

...
28
PIN, Piston (Standard) BS-690229

...
29B
ROD, Connecting BS-791783

...
32
SCREW (Connecting Rod) BS-791784

...
46
CAMSHAFT BS-693404

...
46A
CAMSHAFT BS-695285

...
51
GASKET, Intake BS-791718

...
146
KEY, Woodruff BS-690979

...
219
GEAR, Governor BS-693578

...
220
WASHER (Governor Gear) BS-691724

...
287
SCREW (Dipstick Tube) BS-699234

...
306A
SHIELD, Cylinder BS-695710

...
307
SCREW (Cylinder Shield) BS-794822

...
307A
SCREW (Cylinder Shield) BS-699234

...
307B
SCREW (Cylinder Shield) BS-790557

...
358B
GASKET SET, Engine BS-791797

...
523
DIPSTICK BS-693618

...
524
SEAL, Dipstick Tube (Dipstick Tube) BS-281370S

...
552
BUSHING, Governor Crank BS-692346

...
584
COVER, Breather Passage BS-791759

...
585
GASKET, Breather Passage BS-791760

...
598
SHIM, End Play (Crankshaft or Camshaft Bearing) BS-220624

...
615
RETAINER, Governor Shaft BS-692576

...
616
CRANK, Governor BS-692547

...
684
SCREW (Breather Passage Cover) BS-793369

...
718
PIN, Locating BS-690959

...
741
GEAR, Timing BS-695087

...
742
RETAINER, E Ring BS-692564

...
746
GEAR-IDLER BS-790278

...
842
SEAL, O-Ring (Dipstick Tube) BS-691031

...
847
DIPSTICK/TUBE ASSEMBLY BS-693617

...
868
SEAL-VALVE BS-795440

...
883A
GASKET-EXHAUST BS-691893

...
993
GASKET-CYL HD PLATE BS-694088

...
998
PIPE, Oil (2 1/2 ) BS-792928

...
998
PIPE, Oil (4 ) BS-696683

...
998
PIPE, Oil (5 ) BS-794701

...
1019
KIT, Label BS-792211

...
1022
GASKET-ROCKER COVER BS-691890

...
1058
MANUAL-OPERATORS BS-80006750USCN

...
1319
LABEL, Warning BS-794467

...
1330
MANUAL, Repair BS-272147

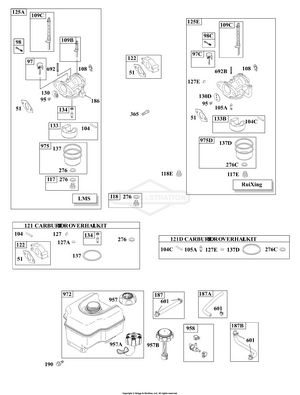

Carburetor, Fuel Supply

...
...
51
GASKET, Intake BS-791718

...
95
SCREW (Throttle Valve) BS-691636

...
97
SHAFT, Throttle BS-690024

...
97C
SHAFT, Throttle BS-797628

...
98
KIT-IDLE SPEED (Idle Speed) (Lmt 26, 27, 28, 31) BS-398185

...
98C
KIT, Idle Speed BS-797156

...
104
PIN, Float Hinge BS-797622

...
104C
PIN, Float Hinge BS-797622

...
105A
VALVE, Float Needle BS-797139

...
108
VALVE, Choke BS-796993

...
109B
SHAFT, Choke BS-695729

...
109C
SHAFT, Choke BS-791954

...
117
JET, Main (Standard) BS-694176

...
117E
JET, Main (Standard) Used Before Code Date 11080800 BS-798930

...
117E
JET, Main (Standard) Used After Code Date 11080700 BS-590906

...
118
JET, Main (High Altitude) BS-695042

...
118E
JET, Main (High Altitude) Used Before Code Date 11080800 BS-798661

...
118E
JET, Main (High Altitude) Used After Code Date 11080700 BS-590440

...
121
KIT, Carburetor Overhaul BS-792006

...
121D
KIT, Carburetor Overhaul BS-797634

...
122
SPACER, Carburetor BS-791717

...
125A
CARBURETOR Used Before Code Date 10071000 BS-594014

...
125E
CARBURETOR Used After Code Date 11080700 BS-594014

...
125E
CARBURETOR Used After Code Date 10070900 Used Before Code Date 11080800 BS-594014

...
127
PLUG, Welch (Bowl Vent) BS-694468

...
127A
PLUG-WELCH BS-691739

...
127E
PLUG, Welch BS-797633

...
130
VALVE-THROTTLE BS-691181

...
130D
VALVE, Throttle BS-797630

...
133
FLOAT-CARBURETOR BS-398187

...
133B
FLOAT, Carburetor BS-797136

...
134
KIT-NEEDLE/SEAT BS-398188

...
137
GASKET-FLOAT BOWL BS-693981

...
137D
GASKET, Float Bowl BS-798932

...
186
CONNECTOR-HOSE BS-692317

...
187
LINE, Fuel (Cut To Required Length) BS-791766

...
187A
LINE, Fuel (Molded) Used After Code Date 10070900 BS-798908

...
187A
LINE, Fuel (Molded) Used Before Code Date 10071000 BS-791867

...
187B
LINE, Fuel (Molded) Used Before Code Date 10071000 BS-791874

...
187B
LINE, Fuel (Molded) Used After Code Date 10070900 BS-798907

...
190
SCREW (Fuel Tank) BS-597133

...
276
WASHER-SEALING BS-271716

...
276C
WASHER, Sealing BS-797632

...
365
SCREW (Carburetor) BS-699484

...
601
CLAMP, Hose BS-791850

...
692
SPRING, Detent BS-590931

...
692B
SPRING, Detent BS-797624

...
957
CAP, Fuel Tank (Plastic) (Fresh Start) BS-795027

...
957
CAP, Fuel Tank (Plastic) (Text Free) BS-795027

...
957A
CAP, Fuel Tank (Plastic) (Carbon In Cap) BS-799719

...
957B
CAP, Fuel Tank (Plastic) BS-698109

...
958
VALVE, Fuel Shutoff (Plastic) BS-698180

...
972
TANK, Fuel (Plastic) BS-799863

...
975
BOWL, Float BS-796611

...
975D
BOWL, Float BS-798931

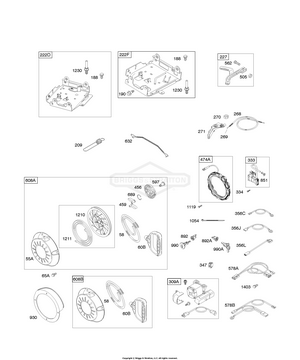

Controls, Electric Starter, Governor Spring, Ignition, Rewind Starter

...
...
55A
HOUSING, Rewind Starter BS-696710

...
58
ROPE, Starter (Cut To Required Length) BS-693389

...
60B
GRIP, Starter Rope BS-699334

...
65A
SCREW (Rewind Starter) BS-699851

...
188
SCREW (Control Bracket) BS-699479

...
190
SCREW (Fuel Tank) BS-597133

...
209
SPRING, Governor Used Before Code Date 10071000 BS-692571

...
209
SPRING, Governor Used After Code Date 10070900 BS-693206

...
222D
BRACKET, Control Used Before Code Date 06051500 BS-793100

...
222F
BRACKET, Control Used After Code Date 06051400 BS-793100

...
227
LEVER, Governor Control BS-794367

...
268
CASING, Control Wire (Cut To Required Length) BS-691025

...
269
WIRE, Control (Cut To Required Length) BS-26634

...
270
NUT (Control Wire Casing) (Control Wire Casing) BS-691027

...
271
LEVER, Control BS-691028

...
309A
MOTOR, Starter BS-798884

...
333
ARMATURE, Magneto BS-796964

...
334
SCREW (Magneto Armature) BS-699477

...
347
SWITCH, Rocker BS-795333

...
356C
WIRE, Stop BS-695630

...
356L
WIRE, Stop BS-790552

...
356J
WIRE, Stop BS-695630

...
456
PLATE-PAWL FRICTION BS-692299

...
459
PAWL-RATCHET BS-281505S

...
474A
ALTERNATOR BS-793640

...
505
NUT (Governor Control Lever) BS-691251

...
562
BOLT (Governor Control Lever) BS-691119

...
578A
WIRE ASSEMBLY BS-790481

...
578B
WIRE ASSEMBLY BS-791956

...
597
SCREW (Pawl Friction Plate) BS-691696

...
608A
STARTER-REWIND Used Before Code Date 10072000 BS-699335

...
608B
STARTER, Rewind Used After Code Date 10071900 BS-797430

...
632
SPRING/LINK, Mechanical Governor BS-692653

...
689
SPRING-FRICTION BS-691855

...
851
TERMINAL-SPARK PLUG BS-493880S

...
892
SWITCH, Key BS-791944

...
892A
SWITCH, Key BS-798182

...
930
GUARD, Rewind BS-696709

...
990
KEY SET BS-794696

...
990A
SET, Key BS-847146

...
1054
TIE, Cable BS-280275

...
1119
SCREW (Alternator) BS-699772

...
1210
PULLEY/SPRING ASSY (Pulley) BS-498144

...
1211
PULLEY/SPRING ASSY (Spring) BS-498144

...
1230
STUD (Control Bracket) BS-699847

...
1403
SCREW (Wire Assembly) BS-699481

Cylinder Head

...
...
5
HEAD, Cylinder BS-791720

...
7B
GASKET, Cylinder Head BS-791716

...
13
SCREW (Cylinder Head) BS-699482

...
33
VALVE, Exhaust BS-499642

...
34
VALVE, Intake BS-795443

...
35
SPRING, Valve (Intake) BS-691304

...
36
SPRING, Valve (Exhaust) BS-691304

...
40
RETAINER, Valve BS-692194

...
45
TAPPET, Valve BS-690977

...
51
GASKET, Intake BS-791718

...
122
SPACER, Carburetor BS-791717

...
155
PLATE, Cylinder Head (SAE) Used Before Code Date 09061800 BS-698214

...
155
PLATE, Cylinder Head (Metric) Used After Code Date 09061700 BS-797442

...
192
ADJUSTER. Rocker Arm (Metric) Used After Code Date 09061700 BS-797440

...
192
ADJUSTER-ROCKER ARM (SAE) Used Before Code Date 09061800 BS-694543

...
238
CAP, Valve BS-691300

...
337
PLUG, Spark (EMS) BS-691043

...
337
PLUG, SPARK (Resistor) BS-84007216

...
337
PLUG, SPARK (China Only) BS-84007216

...
383
WRENCH, Spark Plug BS-19576S

...
619
SCREW (Cylinder Head Plate) BS-699481

...
635A
BOOT-SPARK PLUG BS-798619

...
830
STUD, Rocker Arm (Rocker Arm) (Metric) Used After Code Date 09061700 BS-797441

...
830
STUD-ROCKER ARM (Rocker Arm) (SAE) Used Before Code Date 09061800 BS-694544

...
868
SEAL-VALVE BS-795440

...
914
SCREW (Rocker Cover) (Bottom) BS-699481

...
914A
SCREW (Rocker Cover) (Top) Used Before Code Date 09061800 BS-692557

...
914A
SCREW (Rocker Cover) (Top) Used After Code Date 09061700 BS-797444

...
914B
SCREW (Rocker Cover) (Center) Used Before Code Date 09061800 BS-691108

...
914B
SCREW (Rocker Cover) (Center) Used After Code Date 09061700 BS-797444S

...
993
GASKET-CYL HD PLATE BS-694088

...
1022
GASKET-ROCKER COVER BS-691890

...
1023
COVER-ROCKER BS-595245

...
1026
ROD, Push BS-790287

...
1029
ARM, Rocker (SAE) Used Before Code Date 09061800 BS-691230

...
1029
ARM, Rocker (Metric) Used After Code Date 09061700 BS-797443

...
1034
GUIDE, Push Rod BS-691343

...
1095A
GASKET SET, Valve BS-791798

Replacement Engine - US & Canada

...
...
xx
Replacement Engine BS-15C1943018

...
xx
Replacement Short Block BS-795438

...
xx
CRANKSHAFT Add Part BS-793195

...
xx
CRANKSHAFT Remove Part BS-792208
...
...
...
Processing
