1532-1 Briggs and Stratton Portable Generator 1,000 Watt

Model: 1532-1

Back To Assemblies

Save Part Not Listed?
product name

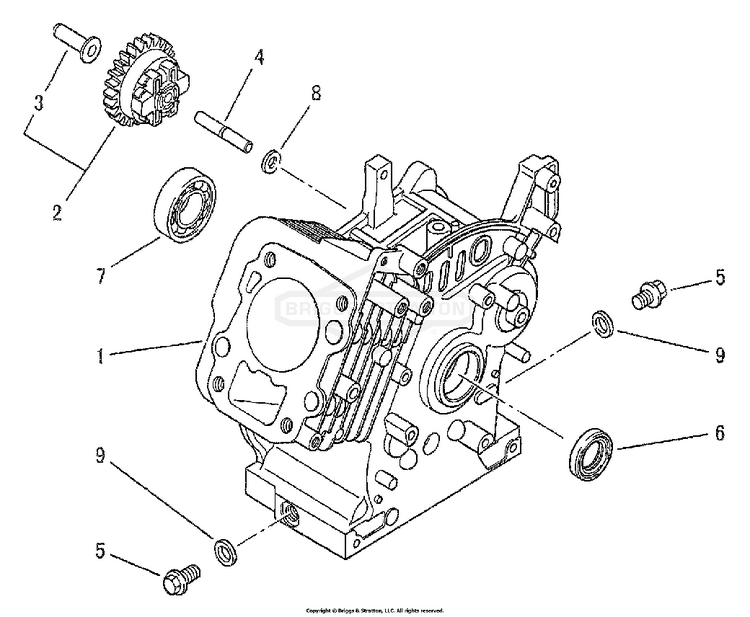

Cylinder Block

...
...
1
CYLINDER ASSEMBLY BS-715918
...
2
ASSY, GOV, GEAR BS-187386GS
...
3
SLIDER, GOV BS-187387GS
...
4
SHFT, GOV BS-187391GS
...
5
PLUG, DRAIN BS-187393GS
...
6
SEAL - OIL BS-711520
...
7
BRG, BALL BS-187395GS
...
8
WSHR, CYLBLOCK BS-187400GS
...
9
GSKT, CYLBLOCK BS-187402GS
