1532-1 Briggs and Stratton Portable Generator 1,000 Watt

Model: 1532-1

Back To Assemblies

Save Part Not Listed?

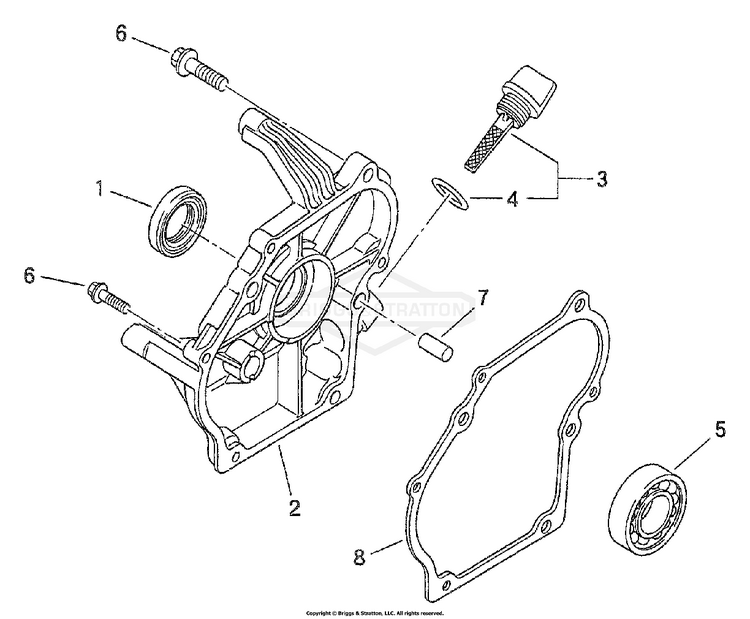

product name

Crankcase Cover

...
...
1
SEAL - OIL BS-711520
...
2
COVER - CRANKCASE BS-715920
...
3
DIPSTICK BS-715588
...
4
SEAL - O RING BS-711521
...
5
BEARING - BALL BS-711522
...
6
SCREW BS-711523
...
7
PIN, DWL BS-187428GS
...
8
GSKT, CRANKCASE CVR BS-187479GS
