1509-2 Briggs and Stratton Portable Generator G-Force 1600

Model: 1509-2

Save Part Not Listed?

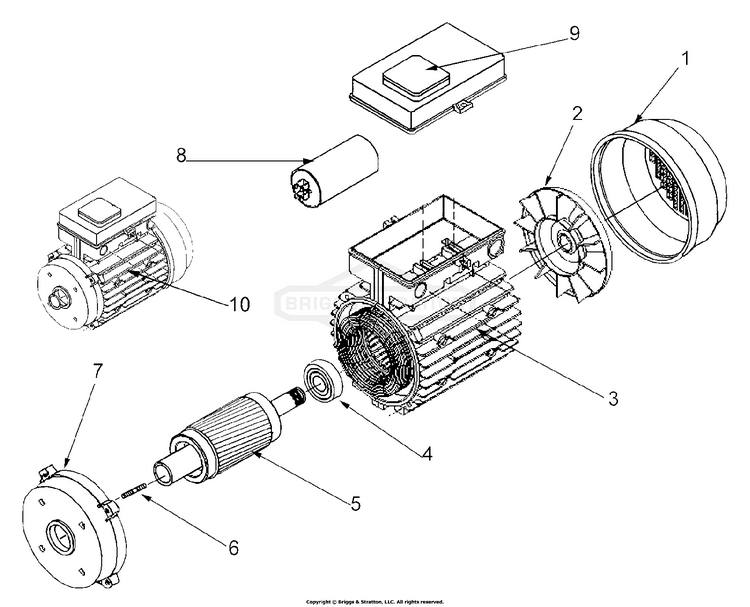

Alternator & Outlet Panel

FAN COVER SOGA 1.2KW BS-102593GS

FAN SOGA 1.2KW BS-102594GS

STATOR ASSEMBLY SOGA 1.2KW BS-102595GS

BEARING ROTOR TEKEL 1KW BS-102575GS

ROTOR ASSEMBLY SOGA 1.2KW BS-102596GS

STUD 3/8" UNF * 1.5" BS-102597GS

FLANGE PLATE SOGA 1.2KW BS-102598GS

CAPACITOR 40UF BS-102293GS

SOCKET OUTLET BS-102030GS

ALTERNATOR SOGA 1.2KW VERTICAL BS-102570GS

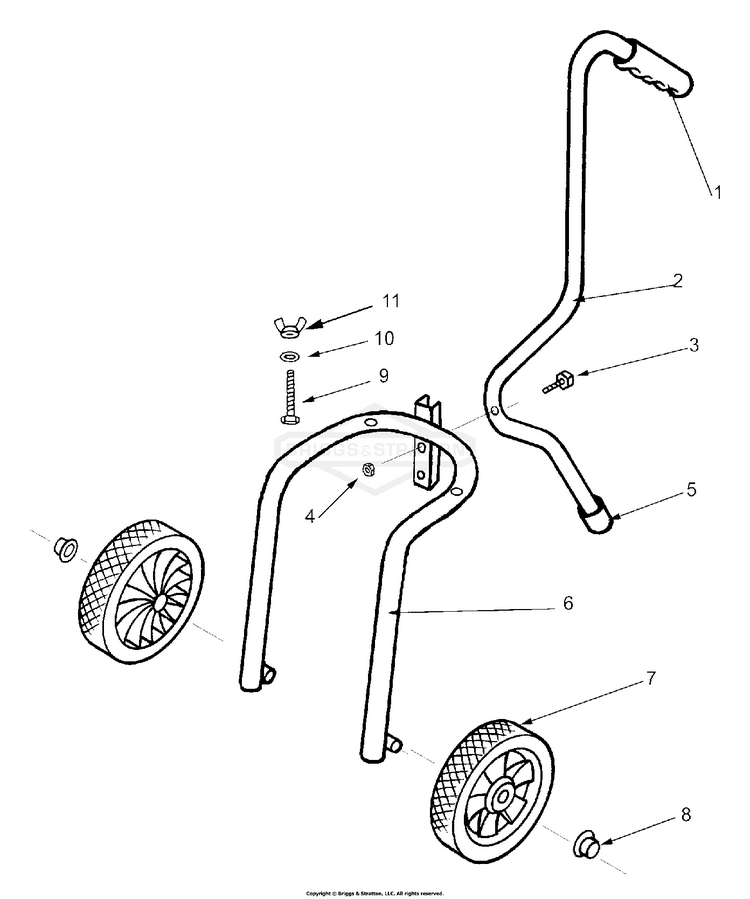

GRIP 1" HANDLE BLACK BS-102599GS

CRADLE HANDLE VT BS-102600GS

SCREW SET BS-10202BGS

NUT FLANGE M8-1.25 BS-~NSP

FERRULE RUBBER 1" BS-102601GS

CRADLE WHEELED VT2000 BS-102602GS

WHEEL 7" BS-102461GS

PUSHNUT BS-102462GS

SCREW SET HHDM6-1.0*12MM BS-~NSP

WASHER SHAKEPROOF 1/4" & M6 INT BS-~NSP

NUT WING M6-1.0 BS-102036GS

DECAL WARNING READ MANUAL (Not Illustrated) BS-102077GS

DECAL G-FORCE 1600 (Not Illustrated) BS-102603GS

DECAL CAUTION HOT (Not Illustrated) BS-102041GS

DECAL ELECTRICAL HAZARD (Not Illustrated) BS-102076GS

DECAL GND (Not Illustrated) BS-102048GS

MANUAL GENERIC-GFORCE (Not Illustrated) BS-102590GS
