1509-1 Briggs and Stratton Portable Generator G-Force 1300

Model: 1509-1

Back To Assemblies

Save Part Not Listed?
product name

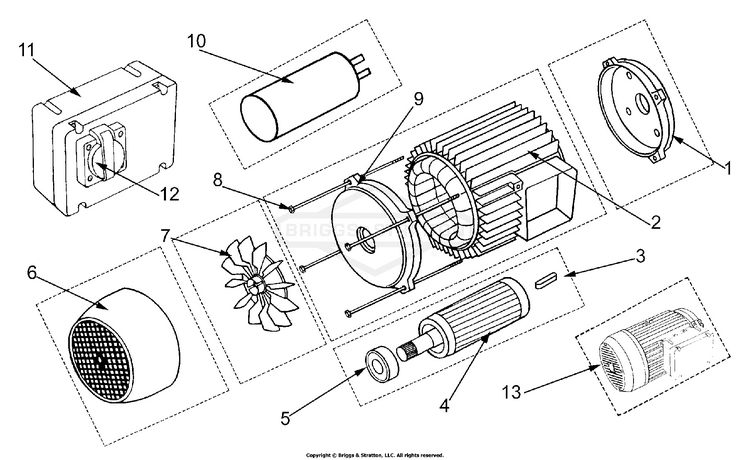

Alternator & Outlet Panel

...
...
1
FLANGE ALTERNATOR BS-102572GS
...
2
STATOR TEKEL 1KW BS-102573GS
...
3
WOODRUFF KEY NO 505 BS-102576GS
...
4
ROTOR TEKEL 1KW BS-102574GS
...
5
BEARING ROTOR TEKEL 1KW BS-102575GS
...
6
FAN GUARD TEKEL 1KW BS-102579GS
...
7
FAN TEKEL 1 KW BS-102577GS
...
8
BOLT STATOR M5*160MM BS-102591GS
...
9
BEARING CARRIER TEKEL 1KW BS-102578GS
...
10
CAPACITOR 40UF BS-102293GS
...
11
OUTLET BOX COMPLETE SOGA 1.2KW G/S BS-102581GS
...
12
SOCKET OUTLET BS-102030GS
...
13
ALTERNATOR TEKEL 1 KVA G/S (USE 102570GS) BS-102571GS
...
ALTERNATOR SOGA 1.2 KVA G/S BS-102570GS
