1509-0 Briggs and Stratton Portable Generator G-Force 1300

Model: 1509-0

Back To Assemblies

Save Part Not Listed?
product name

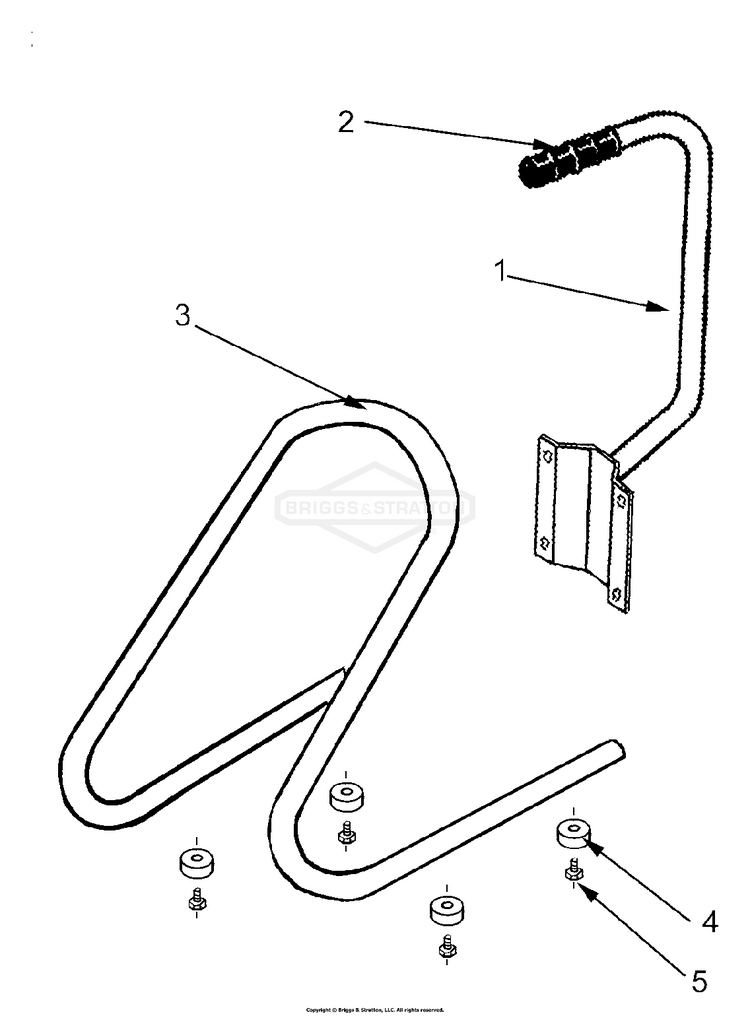

Frame And Fittings

...
...
1
HANDLE G-FORCE 1300 (SOGA ALTERNATOR) BS-102652GS
...
2
GRIP 7/8" HANDLE BS-102625GS
...
3
CRADLE G-FORCE 1300 (SOGA ALTERNATOR) BS-102653GS
...
4
VIBRATION MOUNT BS-102463GS
...
5
SCREW MACHINE HHD M8-1.25*16MM BS-10229GS
...
--
DECAL WARNING READ MANUAL (Not Illustrated) BS-102077GS
...
--
DECAL G-FORCE 1300 (Not Illustrated) BS-102589GS
...
--
DECAL CAUTION HOT (Not Illustrated) BS-102041GS
...
--
DECAL ELECTRICAL HAZARD (Not Illustrated) BS-102076GS
...
--
DECAL GND (Not Illustrated) BS-102048GS
...
--
MANUAL GENERIC-GFORCE (Not Illustrated) BS-102590GS
