150315-0111-E1 Briggs and Stratton Engine

Model: 150315-0111-E1

Back To Assemblies

Save Part Not Listed?
product name

Air Cleaner, Controls, Exhaust System, Governor Spring, Ignition

...
...
11B
TUBE, Breather (Ultra Low Mount Air Cleaner) BS-790632
...
161A
BASE, Air Cleaner (Metal) (Ultra Low Mount Air Cleaner) BS-790631
...
163
GASKET, Air Cleaner (Flat Panel Air Cleaner) BS-696024
...
188
SCREW (Control Bracket) BS-699479
...
190
SCREW (Fuel Tank) BS-597133
...
209
SPRING, Governor BS-693206
...
222F
BRACKET, Control BS-793100
...
227
LEVER, Governor Control BS-794367
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-699492
...
268
CASING, Control Wire (Cut To Required Length) BS-691025
...
269
WIRE, Control (Cut To Required Length) BS-26634
...
270
NUT (Control Wire Casing) BS-691027
...
271
LEVER, Control BS-691028
...
300
MUFFLER BS-693593
...
333
ARMATURE, Magneto BS-796964
...
334
SCREW (Magneto Armature) BS-699477
...
347
SWITCH, Rocker BS-795333
...
356B
WIRE-STOP BS-692602
...
356C
WIRE, Stop BS-695630
...
425A
SCREW (Air Cleaner Cover) BS-699492
...
445
FILTER, A/C Cartridge BS-491588S
...
505
NUT (Governor Control Lever) BS-691251
...
562
BOLT (Governor Control Lever) BS-691119
...
564
SCREW (Control Cover) BS-699491
...
564A
SCREW (Control Cover) BS-699206
...
604
COVER-CONTROL BS-697326
...
613
SCREW (Muffler) BS-791972
...
632
SPRING/LINK, Mechanical Governor BS-693408
...
832
GUARD, Muffler (Lo Tone) BS-593953
...
836
SCREW (Muffler Guard) BS-699203
...
836A
SCREW (Muffler Guard) BS-699632
...
851
TERMINAL, Spark Plug BS-493880S
...
883
GASKET-EXHAUST (Between Adapter And Cylinder) BS-691893
...
967
FILTER, Air Cleaner Foam (Flat Panel) BS-493537S
...
968B
COVER, Air Cleaner (Ultra Low Mount Air Cleaner) BS-791082
...
971
SCREW (Air Cleaner Base to Carburetor) (SAE) BS-690370
...
971
SCREW (Air Cleaner Base to Carburetor) (Metric) BS-798649

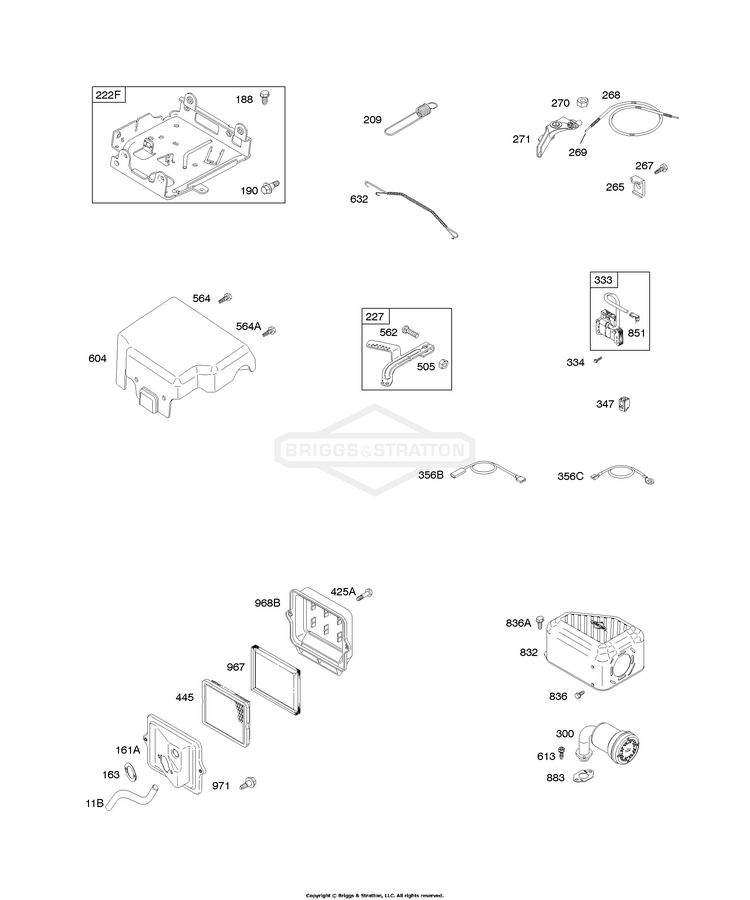

Schematic Image Zoomed
