1450-3 Briggs and Stratton Pressure Washer 2,400 PSI

Model: 1450-3

Save Part Not Listed?
product name

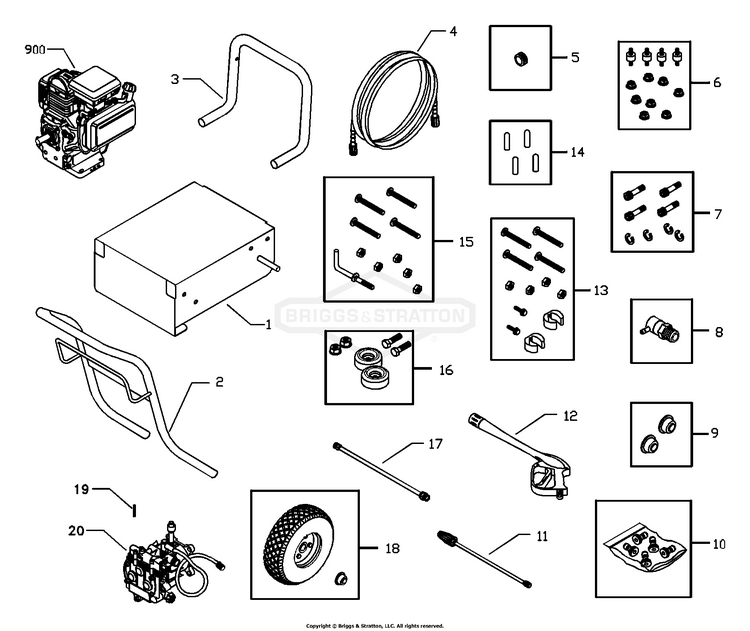

Main Unit

...
...
1
BASE BS-B190506BGS
...
2
HANDLE BS-CB3861BGS
...
3
BUMPER BS-CB3866GS
...
4
HOSE BS-190249GS
...
5
GROMMET BS-30809GS
...
6
KIT, Engine Mounting Hardware BS-192134GS
...
7
KIT, Pump Mounting Hardware BS-192131GS
...
8
VALVE, Thermal Relief BS-208673GS
...
9
KIT, Pushnut BS-194062GS
...
10
KIT, Nozzle BS-197291GS
...
11
WAND, with Turbo BS-185859GS
...
12
GUN BS-B3263GS
...
13
KIT, Handle Turbo Mount BS-185937GS
...
14
KIT, Vinyl Cap, Base BS-192126GS
...
15
KIT, Bumper Mounting Hardware BS-192910GS
...
16
KIT, Vibration Mount BS-192553GS
...
17
ASSY, Extension BS-190779GS
...
18
KIT, Wheel BS-192526GS
...
19
KEY BS-23139DGS
...
20
ASSY, Pump (See "Pump") BS-194106GS
...
900
ENGINE BS-~NSP
...
MANUAL, Owner's Not illustrated BS-193849GS
...
MANUAL, Engine Not illustrated BS-B3294GS
...
BOTTLE, Oil Not illustrated BS-100005
...
KIT, Maintenance Not illustrated BS-191922GS
...
KIT, Decals Not illustrated BS-194215GS

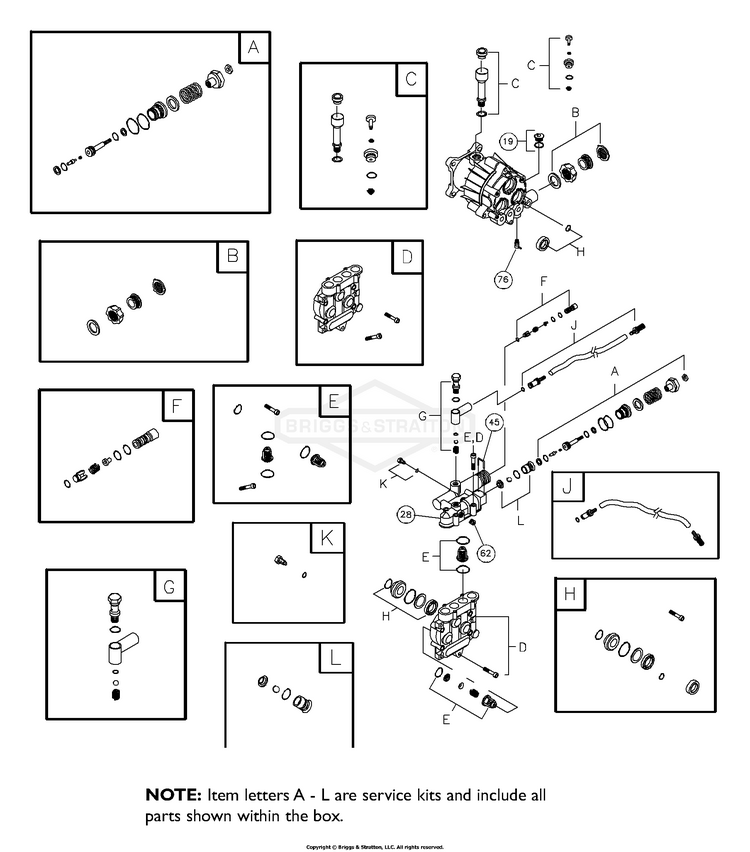

Pump

...
...
19
CAP, Oil BS-190571GS
...
28
MANIFOLD BS-190673GS
...
45
PIN BS-190578GS
...
62
CAP BS-190581GS
...
76
VALVE, Thermal Relief BS-208673GS
...
77
OIL BOTTLE (Not shown) BS-190585GS
...
A
KIT, UNLOADER Service kit includes all parts shown within the box. BS-190594GS
...
B
KIT, WATER INLET Service kit includes all parts shown within the box. BS-190670GS
...
C
KIT, BREATHER TUBE Service kit includes all parts shown within the box. BS-190669GS
...
D
KIT, HEAD BRASS Service kit includes all parts shown within the box. BS-193808GS
...
E
KIT, CHECK VALVES Service kit includes all parts shown within the box. BS-193806GS
...
F
KIT, INLET CHECK Service kit includes all parts shown within the box. BS-190592GS
...
G
KIT, CHEMICAL INJECTION Service kit includes all parts shown within the box. BS-190593GS
...
H
KIT, SEAL SET Service kit includes all parts shown within the box. BS-193807GS
...
J
KIT, CHEMICAL HOSE Service kit includes all parts shown within the box. BS-189971GS
...
K
KIT, PIPE FITTING Service kit includes all parts shown within the box. BS-193971GS
...
L
KIT, UNLOADER SEAT Service kit includes all parts shown within the box. BS-193972GS
