1417-0 Briggs and Stratton Pressure Washer 2,500 PSI

Model: 1417-0

Save
 Part Not Listed?Part Not Listed?
product name

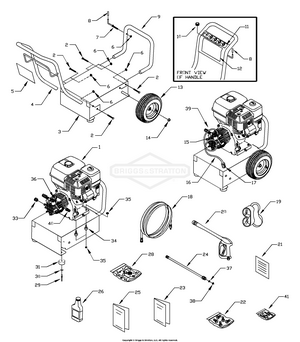

Main Unit

...
...
1
ENGINE BS-~NSP
...
2
BOLT, Carriage BS-B2043GS
...
3
BASE BS-B190516GS
...
4
HANDLE BS-CB3861CGS
...
5
DECAL, Operating Instructions BS-B4160GS
...
6
NUT, Hex Flange BS-99583GS
...
7
HOOK, Square Neck Gun BS-B2150GS
...
8
CAP, Black Vinyl BS-B2516GS
...
9
BUMPER BS-CB3866GS
...
10
GROMMET BS-30809GS
...
11
DECAL, 5 QD Nozzles BS-B4159GS
...
12
DECAL, Unit 1417 BS-B5188GS
...
13
ASSEMBLY, Wheel BS-88521GS
...
14
PUSHNUT BS-190146GS
...
15
CLAMP, Hose BS-48031GGS
...
16
HOSE, Chemical Inject BS-A1040AGS
...
17
FILTER-CHEM HOSE BS-709496
...
18
Hose BS-205734GS
...
19
GOGGLES, Safety BS-87815GS
...
20
GUN BS-704311
...
21
CARD, Owners Registration BS-88681GS
...
22
KIT, Nozzles QD BS-B4155GS
...
23
MANUAL, Owners 1417-0 BS-B5189GS
...
24
ASSY., Wand Ext. with QD BS-B3858GS
...
25
MANUAL, Honda BS-B5214GS
...
26
BOTTLE, Oil BS-100005
...
28
KIT, Maintenance, O-Ring BS-191922GS
...
29
BLIND RIVET BS-188194GS
...
30
FLAT WASHER BS-71693GS
...
31
VIBE MOUNT, with Washer BS-191413GS
...
33
CONNECTOR, Garden Hose BS-21424GS
...
34
MOUNT, Rubber Shock BS-21217GS
...
35
NUT, Flange Serrated BS-67989GS
...
36
TAG, Breather Cap BS-B1288GS
...
37
SCREEN, Gun Inlet BS-B4224GS
...
38
O-RING, Hi Presure Trans. BS-97837GS
...
39
PUMP BS-317054GS
...
40
QUICK CONNECTOR BS-185923GS
...
41
KIT, Handle Hardware BS-B4196GS

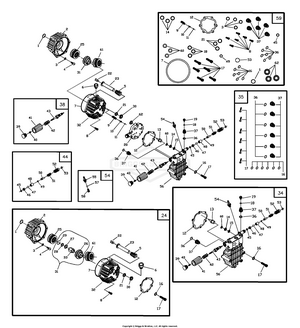

Pump

...
...
1
O-RING, Engine Adapter BS-B2218GS
...
2
ADAPTER, Housing, Cam BS-B2260GS
...
3
O-RING, Engine Adapter Bolt BS-B2217GS
...
4
SCREW, Button BS-B2261BGS
...
5
SPRING, Piston Return BS-96400GS
...
6
BREATHER BS-99735GS
...
7
O-RING, Crankcase BS-93790GS
...
8
CAPSCREW, Socket Head BS-40945GS
...
9
SPRING, Thermal By-Pass BS-93652GS
...
10
PISTON, Thermal By-Pass BS-95416GS
...
11
O-RING, Thermal By-Pass BS-93876GS
...
12
GASKET, Head BS-A2069GS
...
13
ACTUATOR, Thermal By-Pass BS-93644GS
...
14
SEAL, High Pressure BS-96053GS
...
15
RING, Bearing BS-96015GS
...
16
WASHER, Steel Special BS-B2665GS
...
17
BOLT, Head BS-A2013GS
...
18
O-RING, Cap BS-97840GS
...
19
CAP, Outlet Port BS-97841GS
...
20
SPACER PLATE, Inlet BS-A1320GS
...
21
SEAL, Oil Piston BS-93680GS
...
22
SHOE, Piston Pivot BS-94944GS
...
23
ASSEMBLY, Ceramic Piston & Cap BS-99427GS
...
24
KIT, Crankcase Service Kit includes all parts shown within the box. Certain items may only be available as a part of a kit. BS-185700GS
...
34
KIT, Complete Head Service Kit includes all parts shown within the box. Certain items may only be available as a part of a kit. BS-185752GS
...
35
KIT, Check Valve Service Kit includes all parts shown within the box. Certain items may only be available as a part of a kit. BS-185933GS
...
38
KIT, Unloader Spindle Service Kit includes all parts shown within the box. Certain items may only be available as a part of a kit. BS-B3479GS
...
44
KIT, High Pressure Outlet Service Kit includes all parts shown within the box. Certain items may only be available as a part of a kit. BS-B3510GS
...
54
KIT, Chemical Injector Service Kit includes all parts shown within the box. Certain items may only be available as a part of a kit. BS-185943GS
...
59
KIT, O-Ring Sea Is Service Kit includes all parts shown within the box. Certain items may only be available as a part of a kit. BS-185926GS
...
...
...
