1415-0 Briggs and Stratton Portable Generator 10,000 Watt AC

Model: 1415-0

Back To Assemblies

Save Part Not Listed?
product name

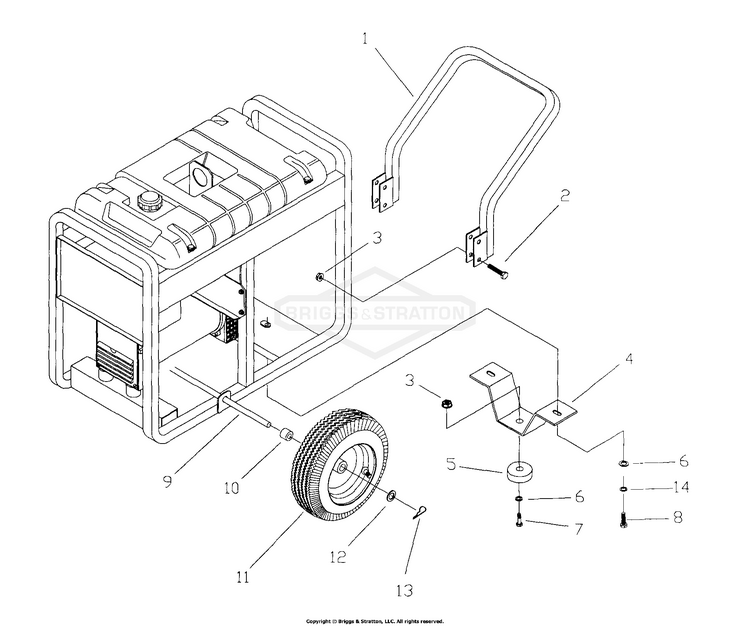

Wheel Kit

...
...
1
HANDLE BS-93393B
...
2
SCREW BS-39287GS
...
3
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
4
SCREW BS-691666
...
5
VIBE MOUNT, with Washer BS-191413GS
...
7
SCREW BS-42909GS
...
8
CAPSCREW M8-1.25X16 BS-703988
...
9
Axle BS-191267WGS
...
10
SPACER, Wheel BS-89635
...
11
WHEEL BS-89742
...
12
WASHER, 5/8" SAE BS-5025281SM
...
13
PIN, Quick Release BS-87005GS
...
14
WASHER, Lock BS-22129GS
