138432-0173-E1 Briggs and Stratton Engine

Model: 138432-0173-E1

Back To Assemblies

Save Part Not Listed?
product name

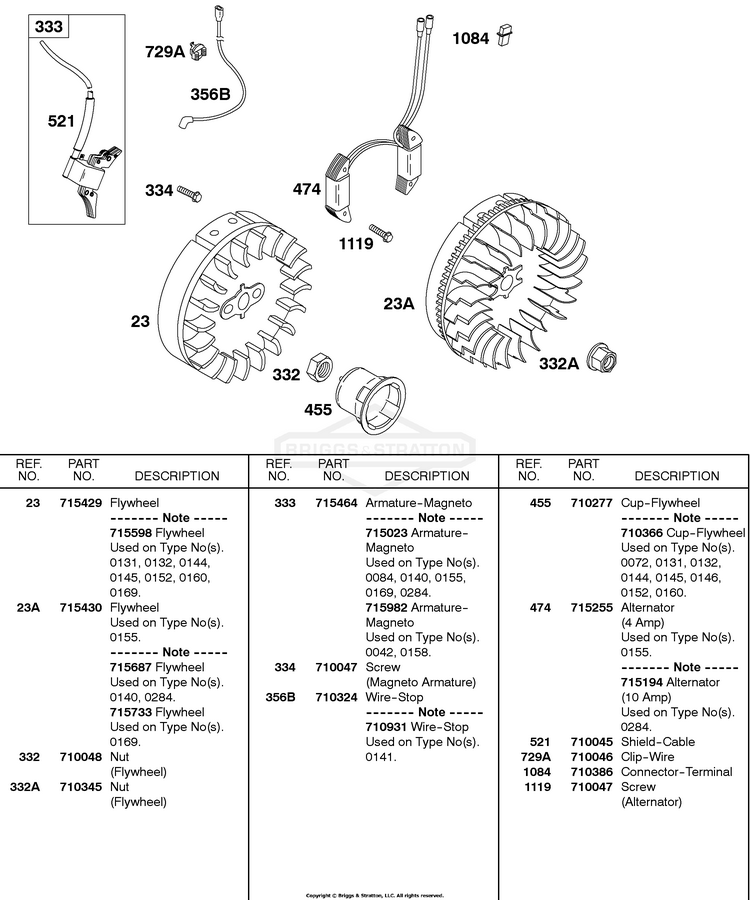

Alternator, Flywheel, Ignition

...
...
23
FLYWHEEL BS-715429
...
332
NUT (Flywheel) BS-710048
...
332A
NUT (Flywheel) BS-712174
...
333
ARMATURE, Magneto BS-715982
...
334
SCREW (Magneto Armature) BS-710047
...
356B
WIRE, Stop BS-710324
...
455
CUP, Flywheel BS-710277
...
521
SHIELD, Cable BS-710045
...
729A
CLIP, Wire BS-710046
...
1084
CONNECTOR, Terminal BS-710386
...
1119
SCREW (Alternator) BS-710047
Schematic Image Zoomed
