138432-0173-E1 Briggs and Stratton Engine

Model: 138432-0173-E1

Back To Assemblies

Save Part Not Listed?
product name

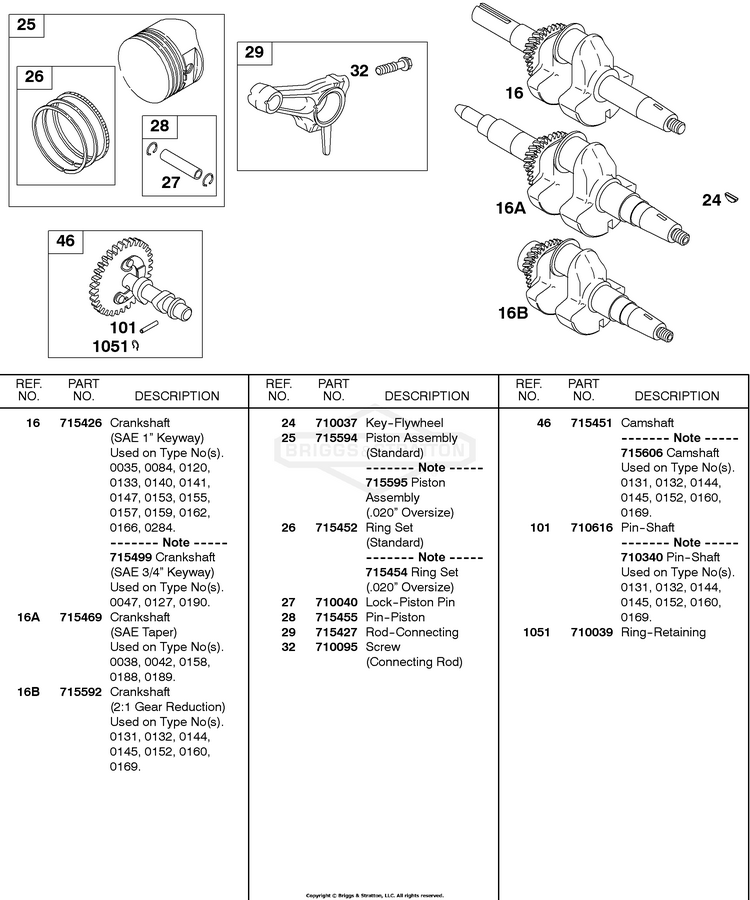

Camshaft, Crankshaft, Piston/Rings/Connecting Rod

...
...
24
KEY, Flywheel BS-710037
...
25
PISTON ASSEMBLY (Standard) BS-715594
...
25
PISTON ASSEMBLY-020 (.020 Oversize) BS-712077
...
26
SET, Ring (Standard) BS-715452
...
26
SET, Ring (.020 Oversize) BS-715454
...
27
LOCK, Piston Pin BS-710040
...
28
PIN, Piston BS-715455
...
29
ROD, Connecting BS-715427
...
32
SCREW (Connecting Rod) BS-710095
...
46
CAMSHAFT BS-715451
...
101
PIN, Shaft BS-710616
...
1051
RING, Retaining BS-710039
