product name

138432-0035-A1 Briggs and Stratton Engine

Model: 138432-0035-A1

Back To Assemblies

Save Part Not Listed?
product name

Panel Kits, Wires

...
...
475
RECTIFIER BS-715200
...
500
WASHER (Key Switch) BS-691086
...
652C
SCREW (Support Bracket) BS-710074
...
663A
SCREW (Control Panel) BS-710095
...
663B
SCREW (Control Panel) BS-710074
...
664
NUT (Key Switch) BS-691087
...
685
SCREW (Rectifier) BS-710089
...
789
HARNESS, Wiring BS-710645
...
890A
BRACKET, Support BS-715319
...
890A
BRACKET, Support BS-710644
...
892
SWITCH, Key (Includes Keys) BS-692318
...
990
SET, Key BS-691959
...
1054
TIE, Cable BS-710349
...
1184
LOCKNUT (Support Bracket) BS-710068

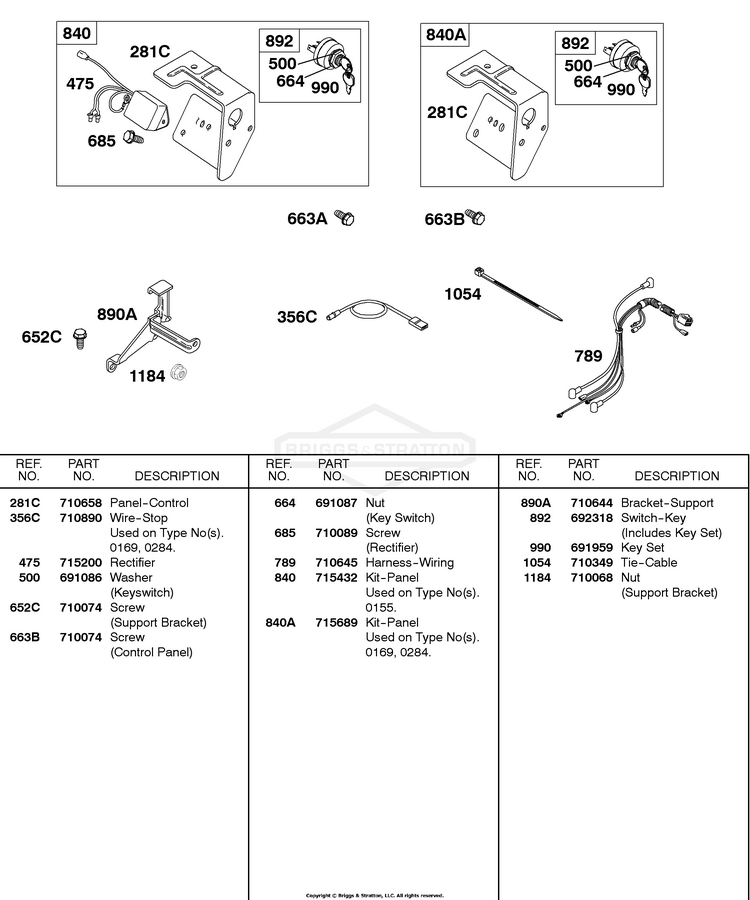

Schematic Image Zoomed
