1339-0 Briggs and Stratton Portable Generator SE10000, 10,000 Watt

Model: 1339-0

Back To Assemblies

Save Part Not Listed?
product name

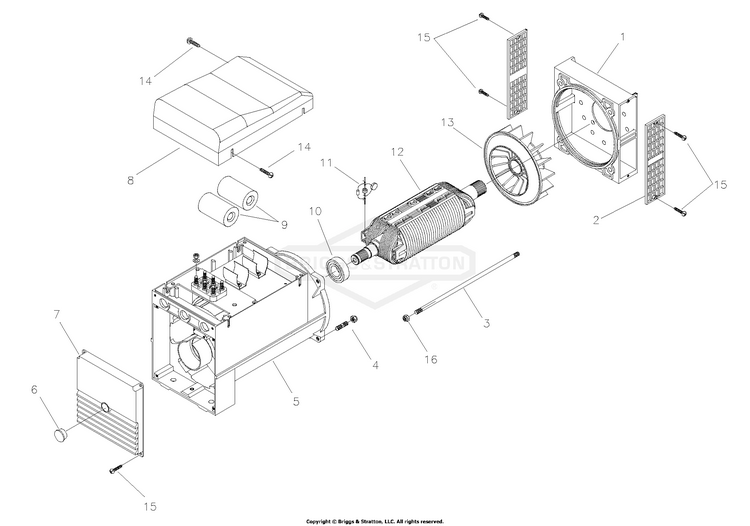

Alternator

...
...
1
SHIELD, Front BS-B4906GS
...
2
GRID, Front BS-B4907GS
...
3
BOLT, Shaft Stay BS-B4908GS
...
4
STAY BOLT, M8 x 30 BS-B4909GS
...
5
ASSEMBLY, Housing BS-B4910GS
...
6
CAP BS-B4911GS
...
7
COVER, Blind End BS-B4912GS
...
8
COVER,Top Black BS-B4913GS
...
9
CAPACITOR BS-311560GS
...
10
BEARING, 62052RS C3 BS-B4915GS
...
11
KIT-CAPACITOR DIODE & VAR BS-B4916GS
...
12
ROTOR (Includes Item 13) BS-B4917GS
...
13
FAN BS-B4918GS
...
14
SCREW, M6 - 1.0 x 10mm BS-B4919GS
...
15
SCREW, M5 - 0.8 x 10mm BS-B4920GS
...
16
LOCK NUT, M8 - 1.25 BS-49820
