1329-0 Briggs and Stratton Portable Generator SE5000, 5,000 Watt

Model: 1329-0

Back To Assemblies

Save Part Not Listed?
product name

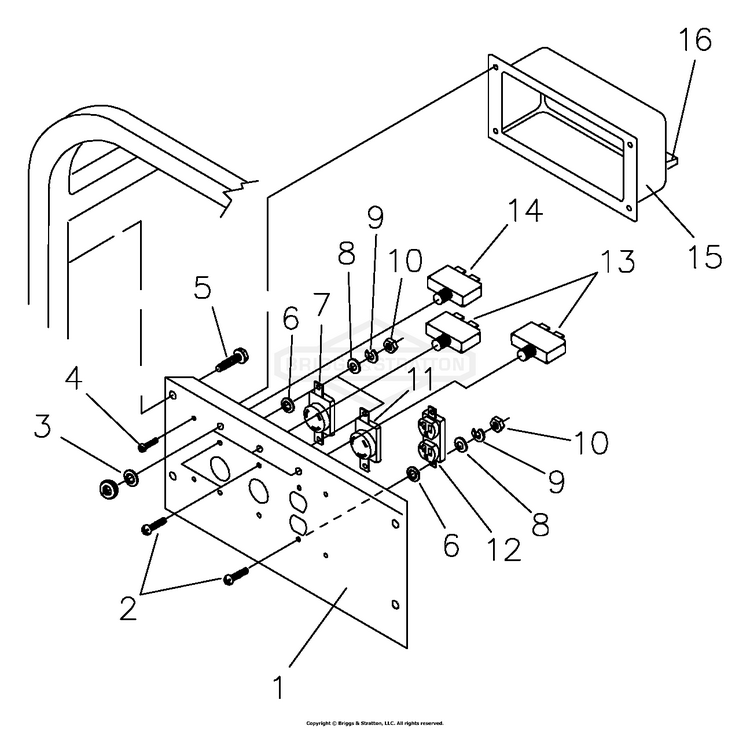

Control Panel

...
...
1
PANEL, Control BS-B81897
...
2
SCREW, M4 - 0.7 x 10mm BS-75475
...
3
WASHER, 7/16" Int Lock BS-82881GS
...
4
SCREW, Self Tapping, STC 3 x 18 BS-82308GS
...
5
SCREW BS-313085GS
...
6
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
7
OUTLET-120V TL30A BS-705932
...
8
WASHER BS-38150GS
...
9
WASHER, No. 8 Lock BS-22264
...
10
NUT, M4-0.7 Hex BS-51715GS
...
11
OUTLET, 120/240V Locking, 20A BS-68867GS
...
12
OUTLET, 20A,120V BS-68759GS
...
13
BREAKER-CIRCUIT 20A BS-209872GS
...
14
BREAKER-CIRCUIT 30A BS-706178
...
15
PANEL, Control, Back, Plastic BS-81919GS
...
16
HOUSING, Receptacle BS-22694GS
