1306-0 Briggs and Stratton Portable Generator PP5000T, 5,000 Watt

Model: 1306-0

Back To Assemblies

Save Part Not Listed?
product name

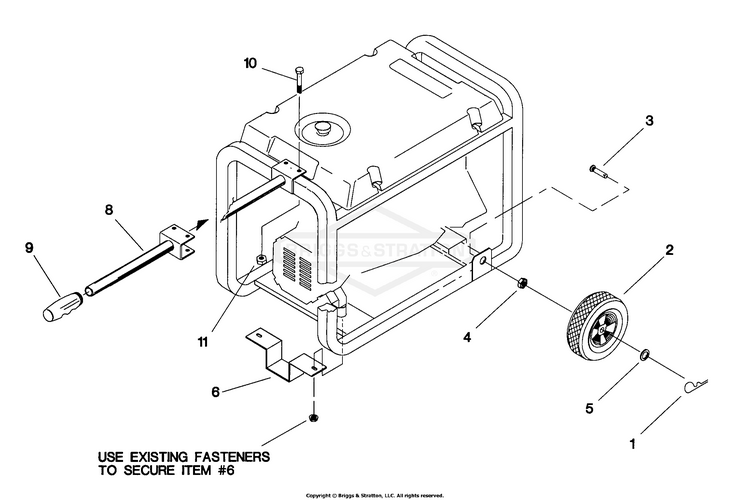

Wheel Kit

...
...
1
PIN, 3/32 X 1.6 BS-703300
...
2
WHEEL BS-197061GS
...
3
STUD,Axle BS-93728GS
...
4
JAM NUT, Lock 5/8" - 18 BS-94222QGS
...
5
WASHER, Flat BS-49808GS
...
6
LEG, Mounting BS-94034
...
8
HANDLE, Lifting BS-B84910
...
9
GRIP, Handle BS-75928GS
...
10
SCREW BS-39287GS
...
11
NUT, Locking Hex M8 - 1.25 BS-52858GS
