13051x81A Murray - Edger (2000)

Model: 13051x81A

Back To Assemblies

Save Part Not Listed?
product name

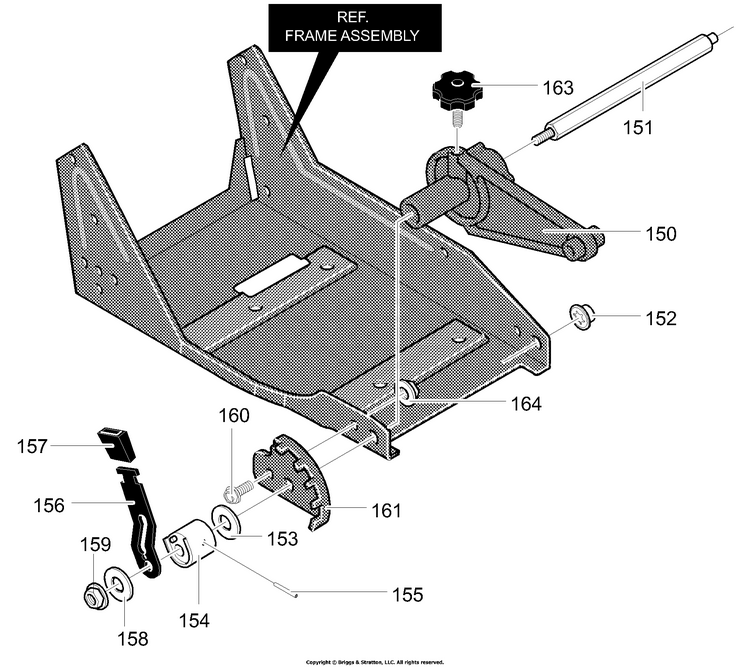

Height Adjust Lever Assembly

...
...
150
Front Wheel Arm BS-339299-823
...
151
Front Mount Curb Rod BS-331422MA
...
152
Pushnut, Washer BS-338614MA
...
153
Plastic Washer BS-325892MA
...
154
Spacer, Height Adjust BS-331421MA
...
155
Pin, Spring BS-332002MA
...
156
Lever, Height Adjust BS-331419MA
...
157
Knob, Rectangle BS-20252MA
...
158
Flatwasher BS-22265MA
...
159
Nut BS-45905MA
...
160
Screw, 5/16-18 x 0.63 BS-51333
...
161
Plate, Height Adjust BS-331394-830
...
163
Knob, Molded BS-339388MA
...
164
Nut, 5/16-18 BS-710205
