13051x81A Murray - Edger (2000)

Model: 13051x81A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

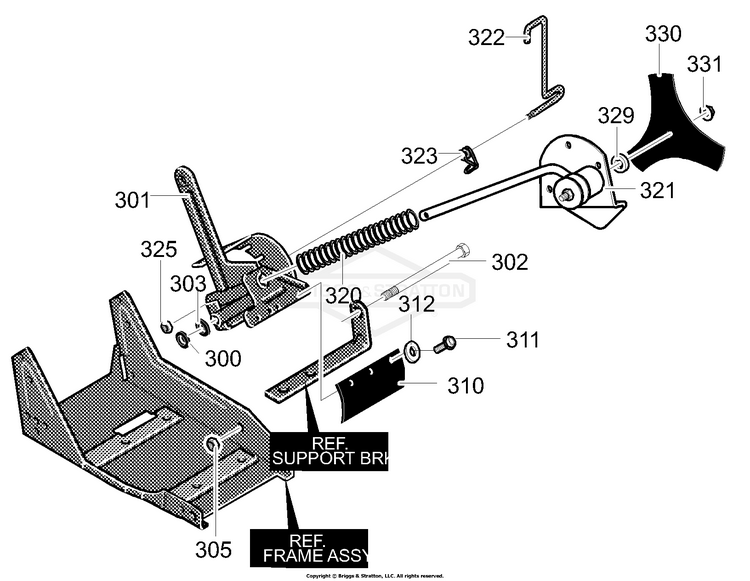

Blade Mount Assembly

...
...
300
Flatwasher BS-120396
...
301
Quill Support BS-338656-830
...
302
Bolt, 3/8-16 HHSH BS-308254
...
303
Flatwasher BS-710083
...
305
NUT, 3/8-16 BS-703333
...
310
Rubber Deflector BS-308243MA
...
311
Screw, 10-16x1.50 BS-411666
...
312
Flatwasher BS-1501
...
320
Spring BS-51603MA
...
321
Quill Assembly BS-740039MA
...
322
Lever, Index BS-308466MA
...
323
Spring, Torsion BS-308155MA
...
325
Nut, 5/16-18 BS-1498
...
329
Flatwasher BS-22265MA
...
330
Blade, Edger BS-740296MA
...
331
Nut, 1/2-20 Wdfl BS-46023MA
