13051x81A Murray - Edger (2000)

Model: 13051x81A

Back To Assemblies

Save Part Not Listed?
product name

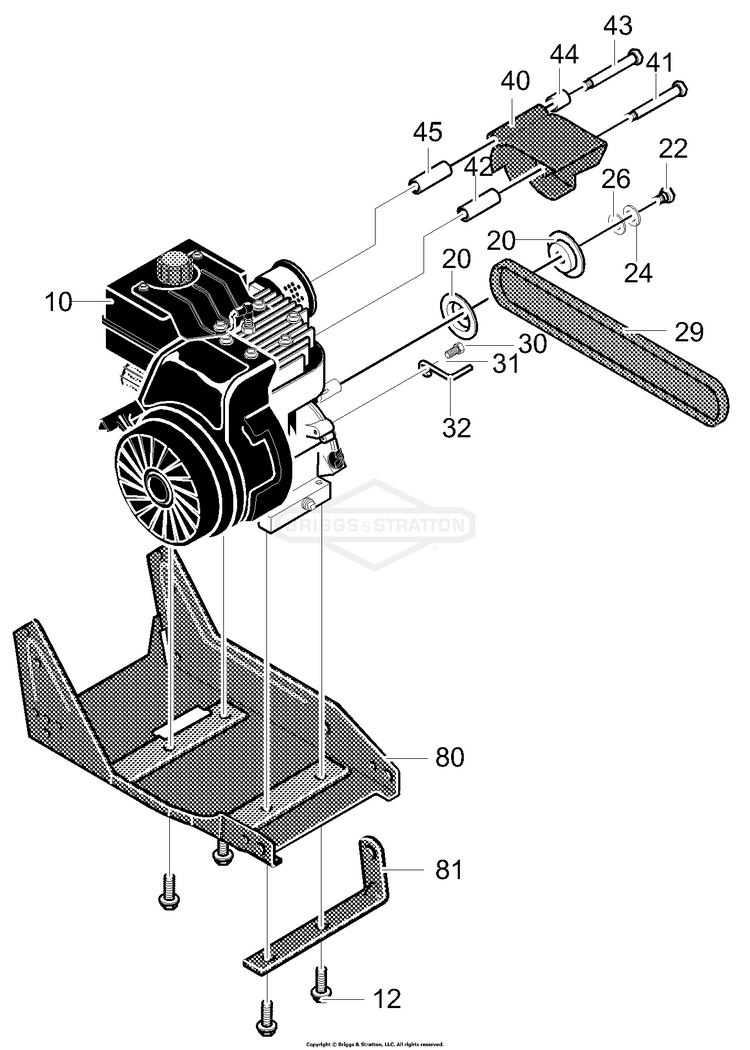

Engine Mount

...
...
12
Screw, 3/8-16 x 1.00 BS-47792MA
...
20
Pulley, Half BS-314781MA
...
22
Screw, 5/16-24 x 1.00 BS-181608
...
24
Washer, Hvsptlk BS-120638
...
26
Flatwasher BS-45602MA
...
29
Belt, V4L 32.60LG BS-32668MA
...
30
Screw 5/16-24x1.00 BS-578733MA
...
31
Flat washer BS-45602MA
...
32
Guide, Belt BS-51600MA
...
40
Cover, Engine Pulley BS-331281-823
...
41
Screw, 5/16-24 x 3.00 BS-181624MA
...
42
Spacer, Sleeve BS-315095MA
...
43
Screw, 5/16-24 x 3.75 BS-173030
...
44
Spacer BS-308237MA
...
45
Spacer, Sleeve BS-315095MA
...
80
Frame, Assy. Edger BS-323534-830
...
81
Strap BS-308154-830
...
--
Instruction Manual BS-F-001103M
