13051x81A Murray - Edger (2000)

Model: 13051x81A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

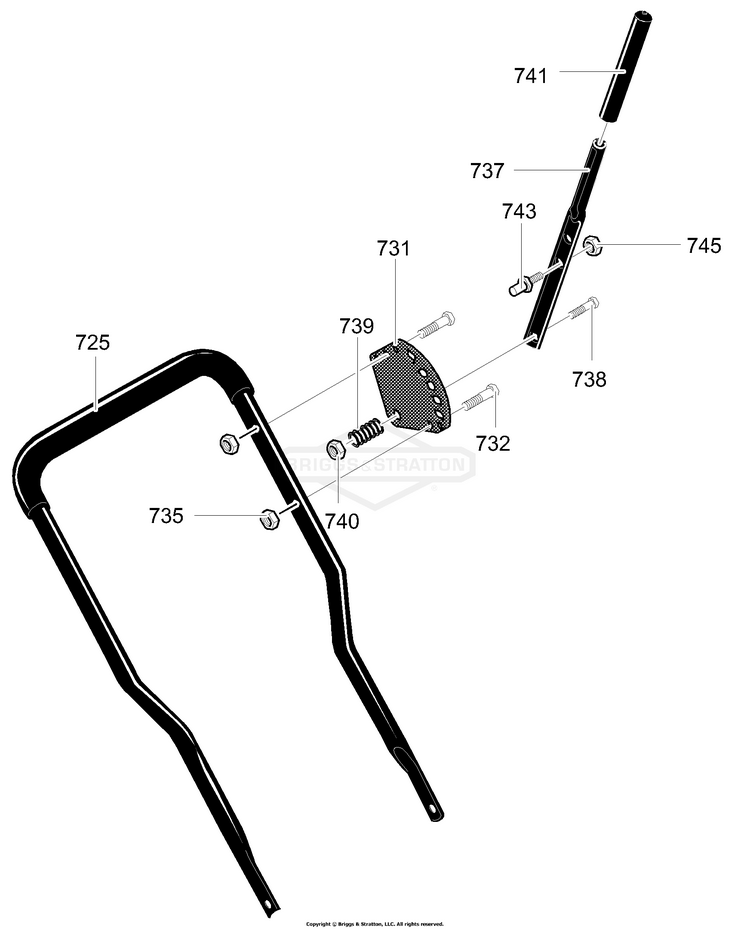

Depth Adjust Handle Assembly

...
...
725
Upper Handle & Foam BS-740040MA
...
731
Selector Plate BS-310052-830
...
732
BOLT, 1/4-20 BS-5025010X12SM
...
735
NUT, 1/4-20 BS-703251
...
737
Depth Adjust Handle BS-310050-830
...
738
Screw, 5/16-18 x 1.25 BS-180081MA
...
739
Spring, Compression BS-25644MA
...
740
Nut, 5/16-18 BS-1498
...
741
Grip, Hand BS-307017MA
...
743
Stud BS-310053
...
745
NUT, 3/8-16 BS-703333
