12X812-0121-B1 Briggs and Stratton Engine

Model: 12X812-0121-B1

Save Part Not Listed?
product name

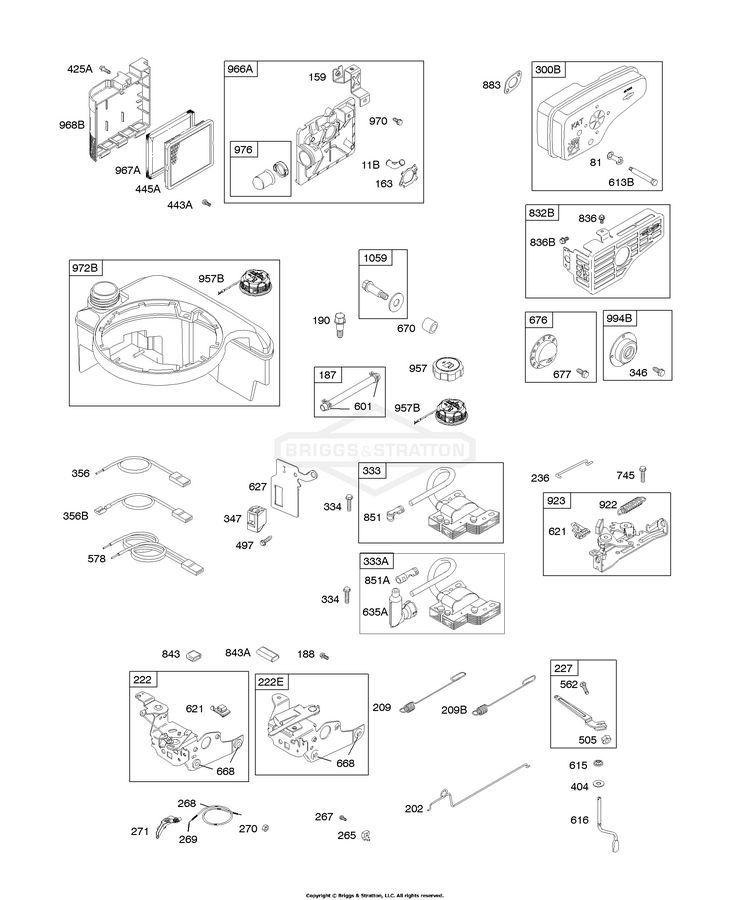

Air Cleaner, Controls, Electrical, Exhaust System, Flywheel Brake, Fuel Supply, Governor Spring, Ignition

...
...
11B
TUBE, Breather BS-691923
...
81
LOCK, Muffler Screw BS-691740
...
159
BASE-AIR CLEANER PRIM BS-795259
...
163
GASKET-AIR CLEANER (Air Cleaner) BS-795629
...
187
LINE, Fuel (Cut To Required Length) BS-791766
...
188
SCREW (Control Bracket) BS-690877
...
190
SCREW (Fuel Tank) BS-690940
...
202
LINK, Mechanical Governor BS-691829
...
209
SPRING, Governor BS-690241
...
222
BRACKET, Control (Remote/Manual Friction)(Primer) BS-790143
...
222E
BRACKET, Control (Fixed Speed And 5 Position Manual Choke) BS-692982
...
227
LEVER, Gov Control BS-690783
...
236
LINK, Lockout BS-691826
...
265
CLAMP, Casing BS-690798
...
267
SCREW (Casing Clamp) BS-691044
...
268
CASING, Control Wire (Cut To Required Length) BS-691025
...
269
WIRE, Control (Cut To Required Length) BS-26634
...
270
NUT (Control Wire Casing) BS-691027
...
271
LEVER, Control BS-691028
...
300B
MUFFLER (Super Lo Tone Catalyst) BS-694048
...
333
ARMATURE-MAGNETO BS-590454
...
333A
ARMATURE-MAGNETO BS-590454
...
333A
ARMATURE-MAGNETO (Screw On Spark Plug Boot) BS-590454
...
334
SCREW (Magneto Armature) BS-691061
...
346
SCREW (Spark Arrestor) BS-690661
...
347
SWITCH, Rocker BS-691396
...
356
WIRE, Stop BS-692390
...
356B
WIRE, Stop BS-693010
...
404
WASHER (Governor Crank) BS-690272
...
425A
SCREW (Air Cleaner Cover) BS-690670
...
443A
SCREW (Air Cleaner Primer Base) BS-692523
...
445A
FILTER, A/C Cartridge BS-491588S
...
497
SCREW (Stopswitch Bracket) BS-690664
...
505
NUT (Governor Control Lever) BS-691251
...
562
BOLT (Governor Lever) BS-92613
...
578
WIRE ASSEMBLY BS-398153
...
601
CLAMP, Hose BS-791850
...
613B
SCREW (Muffler) BS-691114
...
615
RETAINER, Governor Shaft BS-690340
...
616
CRANK, Governor BS-698801
...
621
SWITCH, Stop BS-692310
...
627
BRACKET-STOPSWITCH BS-792565
...
635A
SHIELD, SPARK PLUG (Snap In Style) BS-84013618
...
635A
SHIELD, SPARK PLUG (Screw On Style) BS-84013618
...
668
SPACER (Includes 2) BS-493823
...
670
SPACER, Fuel Tank BS-692294
...
676
DEFLECTOR, Muffler (Single Louver) BS-396548
...
677
SCREW (Muffler Deflector) BS-690661
...
745
SCREW (Brake) BS-691648
...
832B
GUARD, Muffler BS-497683
...
836
SCREW (Muffler Guard) BS-690664
...
836B
SCREW (Muffler Guard) BS-691147
...
843
SLEEVE, Lever (Speed Control) BS-691884
...
843A
SLEEVE, Lever (Choke) BS-691895
...
851
TERMINAL, Spark Plug BS-493880S
...
851A
TERMINAL, Spark Plug BS-692424
...
883
GASKET, Exhaust BS-691881
...
922
SPRING-BRAKE BS-691831
...
923
BRAKE BS-796387
...
957
CAP-FUEL TANK (Plastic) BS-796577
...
957B
CAP-FUEL TANK (Plastic) BS-796577
...
966A
BASE-AIR CLEANER PRIM (Primer) BS-795259
...
967A
FILTER, Air Cleaner Foam BS-493537S
...
968B
COVER, Air Cleaner BS-692298
...
970
SCREW (Air Cleaner Primer Bracket) BS-691669
...
972B
TANK, Fuel (Plastic) BS-699374
...
976
PRIMER, Carburetor BS-694395
...
994B
ARRESTOR, Spark BS-792245
...
1059
KIT, Screw/Washer BS-692311

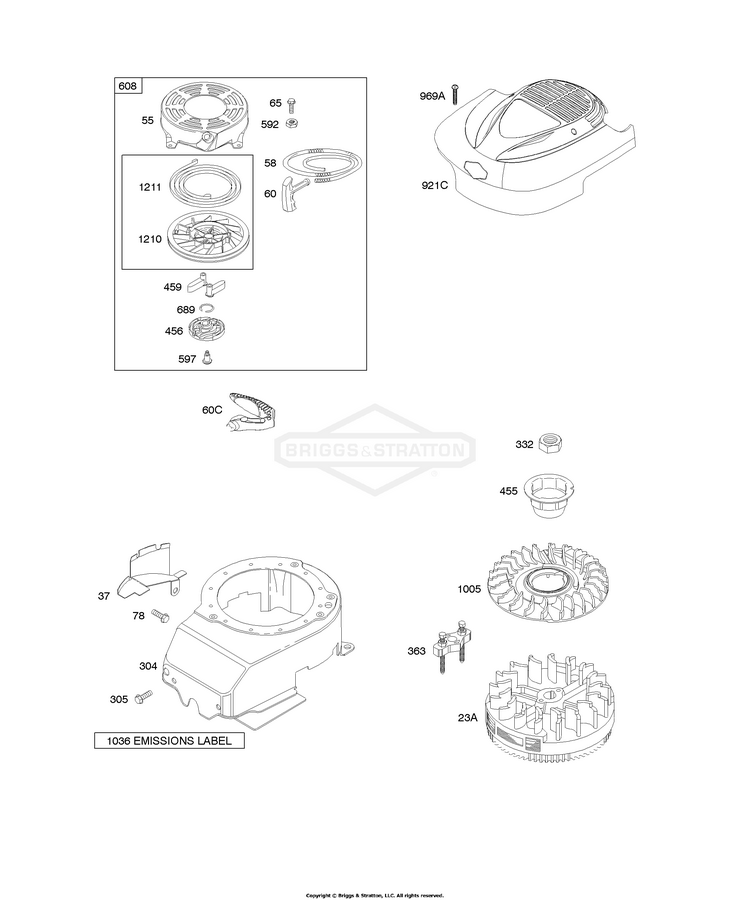

Blower Housing/Shrouds, Flywheel, Rewind Starter

...
...
23A
FLYWHEEL (Electric Start) BS-591282
...
37
GUARD-FLYWHEEL BS-793756
...
55
HOUSING, Rewind Starter BS-691421
...
58
ROPE, Starter (Cut To Required Length) BS-697316
...
60
GRIP, Starter Rope BS-281434S
...
60C
GRIP, Starter Rope BS-799716
...
65
SCREW (Rewind Starter) BS-690837
...
78
SCREW (Flywheel Guard) BS-691108
...
304
HOUSING, Blower BS-694879
...
305
SCREW (Blower Housing) BS-691108
...
332
NUT (Flywheel) BS-690662
...
363
PULLER, Flywheel BS-19069
...
455
CUP, Flywheel BS-791960
...
456
PLATE-PAWL FRICTION BS-692299
...
459
PAWL-RATCHET BS-281505S
...
592
NUT (Rewind Starter) BS-690800
...
597
SCREW (Pawl Friction Plate) BS-691696
...
608
STARTER, Rewind BS-497680
...
689
SPRING-FRICTION BS-691855
...
921C
HOUSING, Blower (Static Guard)(Satin Black) BS-694880
...
969A
SCREW (Blower Housing) BS-691138
...
1005
FAN, Flywheel BS-691346
...
1210
PULLEY/SPRING ASSY (Pulley) BS-498144
...
1211
PULLEY/SPRING ASSY (Spring) BS-498144

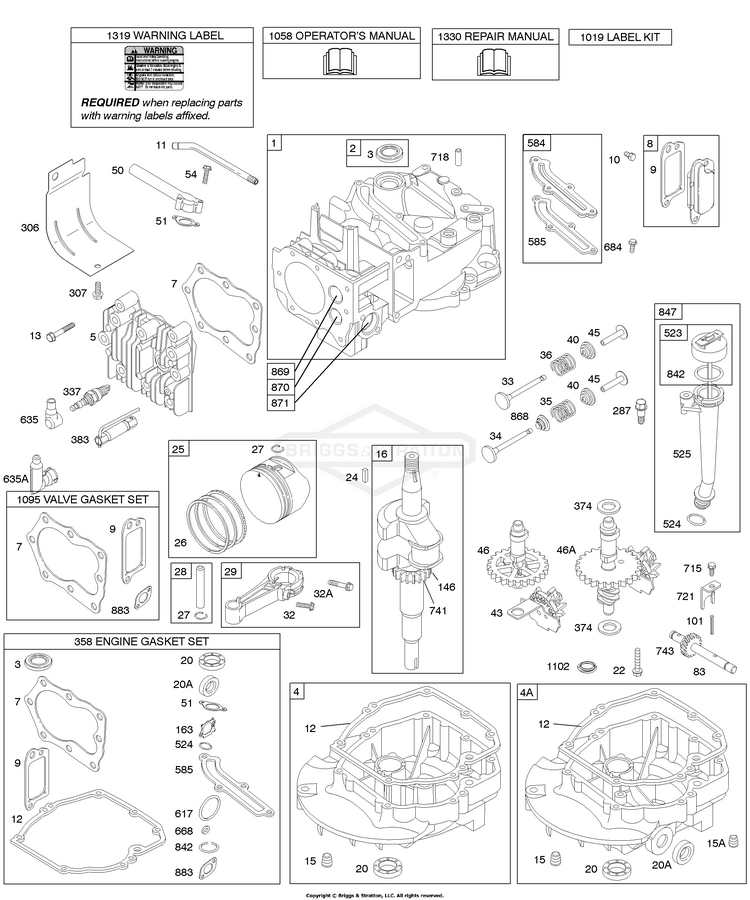

Cams, Crankshaft, Cylinder, Engine Sump, Kit/Gaskets, Lubrication, Piston Group, Valves

...
...
1
CYLINDER ASSEMBLY Used After Code Date 11063000 BS-592645
...
1
CYLINDER ASSEMBLY Used Before Code Date 11070100 BS-592645
...
2
KIT, Bushing/Seal (Magneto Side) BS-796961
...
3
SEAL, Oil (Magneto Side) BS-299819S
...
4
SUMP, Engine BS-498983
...
5
HEAD, Cylinder Used After Code Date 11063000 BS-590411
...
5
HEAD-CYLINDER Used Before Code Date 11070100 BS-594989
...
7
GASKET, Cylinder Head Used Before Code Date 11070100 BS-692249
...
7
GASKET, Cylinder Head Used After Code Date 11063000 BS-799875
...
8
BREATHER ASSEMBLY Used Before Code Date 11070100 BS-590395
...
8
BREATHER ASSEMBLY Used After Code Date 11063000 BS-590395
...
9
GASKET-BREATHER Used Before Code Date 11070100 BS-699833
...
9
GASKET-BREATHER Used After Code Date 11063000 BS-699833
...
10
SCREW (Breather Assembly) BS-691125
...
11
TUBE-BREATHER BS-691781
...
12
GASKET, Crankcase BS-692232
...
13
SCREW (Cylinder Head) Used Before Code Date 11070100 BS-690912
...
13
SCREW (Cylinder Head) Used After Code Date 11063000 BS-590422
...
15
PLUG, Oil Drain (Square Socket) BS-691680
...
15A
PLUG, Oil Drain (Hex Socket) BS-691093
...
16
CRANKSHAFT BS-691482
...
20
SEAL, Oil (PTO Side) BS-399781S
...
20A
SEAL, Oil (PTO Side) (Auxiliary PTO) BS-691952
...
22
SCREW (Crankcase Cover/Sump) BS-691092
...
24
KEY, Flywheel BS-222698S
...
25
PISTON ASSEMBLY-020 (.020 Oversize) Used After Code Date 09041600 Used Before Code Date 11070100 BS-590407
...
25
PISTON ASSEMBLY (.020 Oversize) (.020 Oversize) Used Before Code Date 04102200 BS-799064
...
25
PISTON ASSEMBLY (Standard) Used After Code Date 11063000 BS-590404
...
25
PISTON ASSEMBLY-020 (.020 Oversize) Used After Code Date 11063000 BS-590407
...
25
PISTON ASSEMBLY (Standard) Used Before Code Date 07090400 BS-799063
...
25
PISTON ASSEMBLY (.020 Oversize) Used After Code Date 04102100 Used Before Code Date 07090400 BS-799064
...
25
PISTON ASSEMBLY (Standard) Used After Code Date 07090300 Used Before Code Date 09041700 BS-799063
...
25
PISTON ASSEMBLY (.020 Oversize) Used After Code Date 07090300 Used Before Code Date 09041700 BS-799064
...
25
PISTON ASSEMBLY (Standard) Used After Code Date 09041600 Used Before Code Date 11070100 BS-590404
...
26
PISTON ASSEMBLY-020 (.020 Oversize) Used After Code Date 09041600 Used Before Code Date 11070100 BS-590407
...
26
SET, Ring (Standard) Used Before Code Date 04031500 BS-499425
...
26
SET, Ring (.020 Oversize) Used Before Code Date 04102200 BS-499427
...
26
SET, Ring (Standard) Used After Code Date 11063000 BS-590402
...
26
SET, Ring (.020 Oversize) Used After Code Date 11063000 BS-590403
...
26
SET, Ring (Standard) Used After Code Date 04031400 Used Before Code Date 07090400 BS-791098
...
26
SET, Ring (.020 Oversize) Used After Code Date 04102100 Used Before Code Date 07090400 BS-791324
...
26
RING SET (Standard) Used After Code Date 07090300 Used Before Code Date 09041700 BS-795431
...
26
SET, Ring (.020 Oversize) Used After Code Date 07090300 Used Before Code Date 09041700 BS-795432
...
26
PISTON ASSEMBLY (Standard) Used After Code Date 09041600 Used Before Code Date 11070100 BS-590404
...
27
LOCK, Piston Pin Used After Code Date 09041600 BS-691588
...
27
LOCK-PISTON PIN Used Before Code Date 09041700 BS-691866
...
28
PIN. Piston (Standard) Used After Code Date 09041600 BS-298909
...
28
PIN-PISTON/STD (Standard) Used Before Code Date 09041700 BS-499423
...
29
PISTON ASSEMBLY (Standard) Used Before Code Date 09041700 BS-590406
...
29
ROD, Connecting (Standard) Used After Code Date 09041600 BS-797306
...
32
SCREW (Connecting Rod) BS-691664
...
32A
SCREW (Connecting Rod) Used After Code Date 00042200 BS-695759
...
33
VALVE-EXHAUST Used After Code Date 11063000 BS-590394
...
33
VALVE-EXHAUST Used Before Code Date 11070100 BS-590394
...
34
VALVE-INTAKE Used Before Code Date 11070100 BS-590393
...
34
VALVE-INTAKE Used After Code Date 11063000 BS-590393
...
35
SPRING, Valve (Intake) BS-691270
...
36
SPRING, Valve (Exhaust) BS-691270
...
40
RETAINER, Valve BS-692194
...
43
SLINGER, Governor/Oil BS-691997
...
45
TAPPET, Valve BS-690548
...
46
CAMSHAFT BS-691449
...
46A
CAMSHAFT (Counterclockwise) BS-691459
...
50
MANIFOLD, Intake BS-794305
...
51
GASKET, Intake BS-272199S
...
54
SCREW (Intake Manifold) BS-691650
...
83
SHAFT, Auxiliary Drive BS-691778
...
101
PIN, Shaft BS-691623
...
146
KEY, Woodruff BS-690979
...
163
GASKET-AIR CLEANER (Air Cleaner) BS-795629
...
287
SCREW (Dipstick Tube) BS-690940
...
306
SHIELD, Cylinder BS-690450
...
307
SCREW (Cylinder Shield) BS-690345
...
337
PLUG, Spark (EMS) Used Before Code Date 11070100 BS-697451
...
337
PLUG, Spark (Resistor) Used Before Code Date 11070100 BS-796112S
...
337
PLUG, Spark Used After Code Date 11063000 BS-591868
...
358
GASKET SET, Engine Used After Code Date 11063000 BS-590508
...
358
GASKET SET, Engine Used Before Code Date 11070100 BS-590508
...
374
WASHER (Camshaft) BS-691074
...
383
WRENCH, Spark Plug BS-89838S
...
523
DIPSTICK BS-499621
...
524
SEAL-DIPSTICK TUBE (Dipstick Tube) BS-692296
...
525
TUBE, Dipstick BS-495265
...
584
COVER-BREA PASSAGE BS-697734
...
585
GASKET-BREA PASSAGE BS-691879
...
617
SEAL, O-Ring (Intake Manifold) BS-270344S
...
635
BOOT, Spark PLug BS-66538S
...
635A
SHIELD, SPARK PLUG (Screw On Style) BS-84013618
...
635A
SHIELD, SPARK PLUG (Snap In Style) BS-84013618
...
668
SPACER (Includes 2) BS-493823
...
684
SCREW (Breather Passage Cover) BS-690345
...
715
SCREW (Stop Shaft) BS-691147
...
718
PIN, Locating BS-690959
...
721
STOP, Shaft BS-690449
...
741
GEAR, Timing (Use Without Woodruff Key) Used After Code Date 07093000 Used Before Code Date 08021800 BS-794388
...
741
GEAR, Timing (Plastic) Used After Code Date 08021700 BS-797521
...
741
GEAR, Timing (Metal) Used After Code Date 08021700 BS-797521
...
741
GEAR-TIMING (Uses Woodruff Key) BS-691830
...
741
GEAR, Timing (Use Without Woodruff Key) Used Before Code Date 07100100 BS-790345
...
743
GEAR, Drive (Counterclockwise) BS-691772
...
842
SEAL, O-Ring (Dipstick Tube) BS-691031
...
847
DIPSTICK/TUBE ASSY BS-692047
...
868
SEAL, Valve Used After Code Date 11063000 BS-590410
...
868
SEAL, Valve Used Before Code Date 11070100 BS-697338
...
869
SEAT, Valve (Intake) BS-691155
...
870
SEAT, Valve (Exhaust) BS-690380
...
871
BUSHING, Valve Guide (Intake) Used Before Code Date 11070100 BS-63709
...
871
BUSHING-VALVE GUIDE (Exhaust) Used Before Code Date 11070100 BS-262001
...
871
BUSHING, Valve Guide Used After Code Date 11063000 BS-590409
...
883
GASKET, Exhaust BS-691881
...
1019
KIT, Label BS-494256
...
1058
MANUAL, Operator's Used Before Code Date 11070100 BS-380567TRI
...
1058
MANUAL, Operator's Used After Code Date 11063000 BS-380567TRI
...
1095
GASKET SET, Valve Used Before Code Date 11070100 BS-498528
...
1095
GASKET SET, Valve Used After Code Date 11063000 BS-590507
...
1102
PILOT, Guide BS-691255
...
1319
LABEL, Warning BS-794467
...
1330
REP MAN-1 CYL L-HD BS-270962

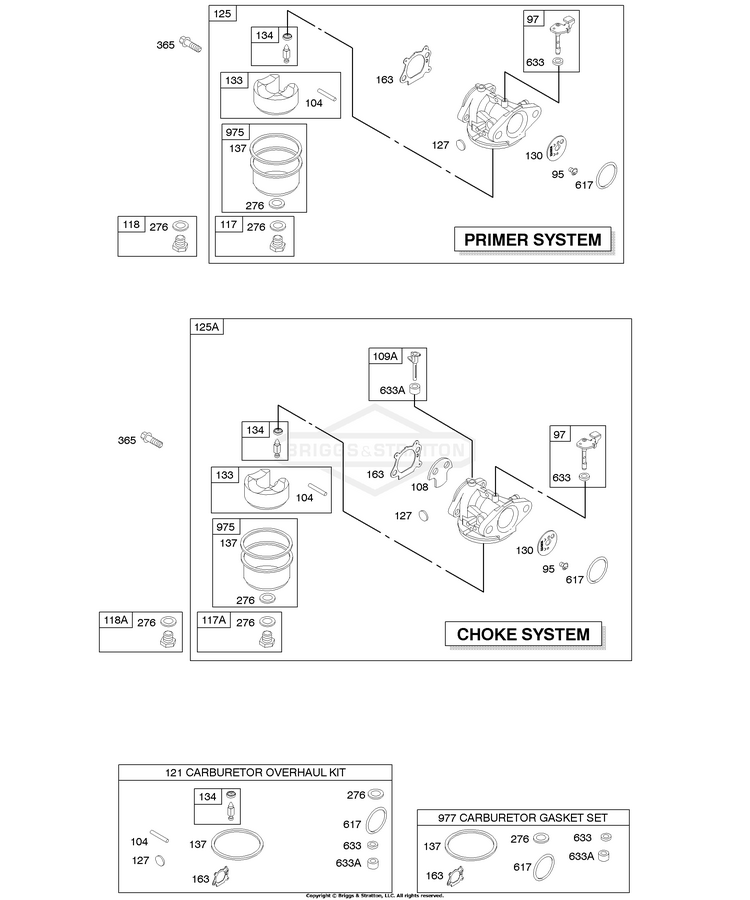

Carburetor

...
...
95
SCREW (Throttle Valve) BS-691636
...
97
SHAFT-THROTTLE BS-493267
...
104
PIN, Float Hinge BS-797622
...
108
VALVE-CHOKE BS-691182
...
109A
SHAFT, Choke BS-498593
...
117
JET, Main (Standard) BS-494870
...
117A
JET, Main (Standard) BS-498978
...
118
JET, Main (High Altitude) BS-498977
...
118A
JET, Main (High Altitude) BS-497315
...
121
KIT, Carburetor Overhaul BS-498260
...
125
CARBURETOR BS-799868
...
125A
CARBURETOR BS-499059
...
127
PLUG, Welch (Bowl Vent) BS-694468
...
130
VALVE, Throttle BS-691203
...
133
FLOAT-CARBURETOR BS-398187
...
134
KIT-NEEDLE/SEAT BS-398188
...
137
GASKET, Float Bowl BS-796610
...
137
GASKET-FLOAT BOWL (1/16) BS-693981
...
163
GASKET-AIR CLEANER (Air Cleaner) BS-795629
...
276
WASHER-SEALING BS-271716
...
365
SCREW (Carburetor) BS-691688
...
617
SEAL, O-Ring (Intake Manifold) BS-270344S
...
633
SEAL, Choke/Throttle Shaft (Throttle Shaft) BS-691321
...
633A
SEAL, Choke/Throttle Shaft (Choke Shaft) BS-693867
...
975
BOWL, Float BS-796611
...
977
KIT, Carburetor Overhaul BS-498260

Replacement Engine - US & Canada

...

No Parts Available for this Schematic

Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
