12V337-0010-F1 Briggs and Stratton Engine

Model: 12V337-0010-F1

Back To Assemblies

Save Part Not Listed?
product name

Cylinder Group

...
...
1
CYLINDER ASSEMBLY BS-596995
...
3
SEAL, Oil (Magneto Side) BS-84002132
...
15
PLUG, Oil Drain BS-590678
...
17
BEARING, Ball (Cylinder) BS-596990
...
219
GEAR, Governor BS-597038
...
276
WASHER, Sealing BS-797632
...
306
SHIELD, Cylinder (Bottom) BS-597076
...
306A
SHIELD, Cylinder (Top) BS-597077
...
307
SCREW (Cylinder Shield) BS-590850
...
307A
SCREW (Cylinder Shield) BS-590683
...
307B
SCREW (Cylinder Shield) BS-590850
...
358
GASKET SET, Engine (Service Kits may include extra parts not specific to this engine.) BS-597139
...
404
WASHER (Governor Crank) BS-597030
...
615
RETAINER, Governor Shaft BS-597031
...
616
CRANK, Governor BS-597029
...
718
PIN, Locating BS-590713
...
868
SEAL, Valve BS-597001

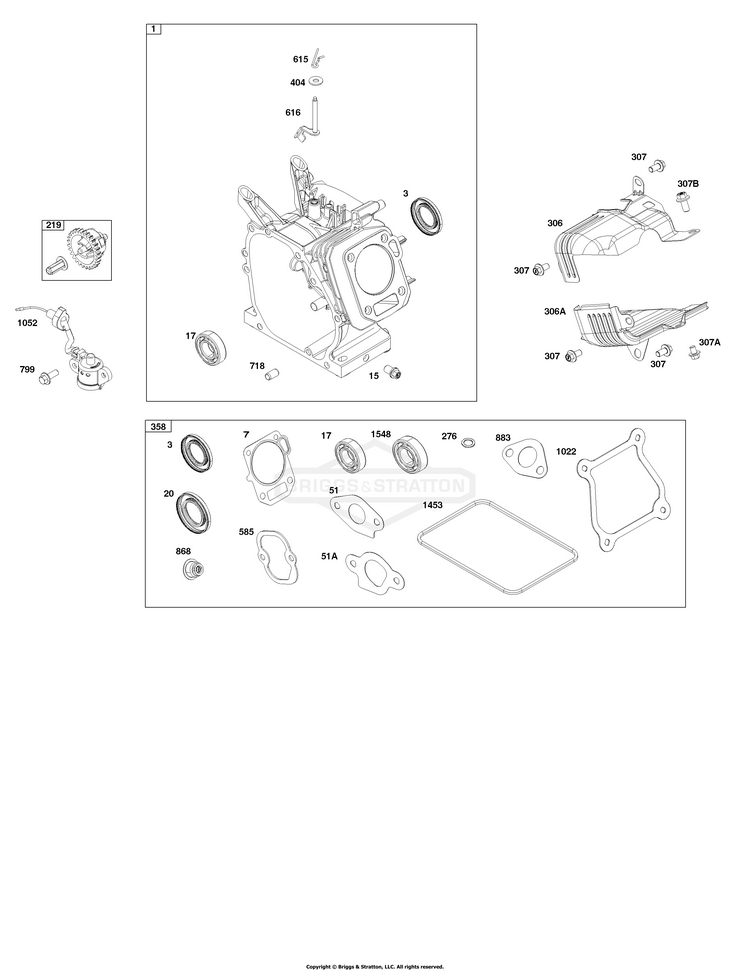

Schematic Image Zoomed
