product name

12T807-0869-99 Briggs and Stratton Engine

Model: 12T807-0869-99

Back To Assemblies

Save Part Not Listed?
product name

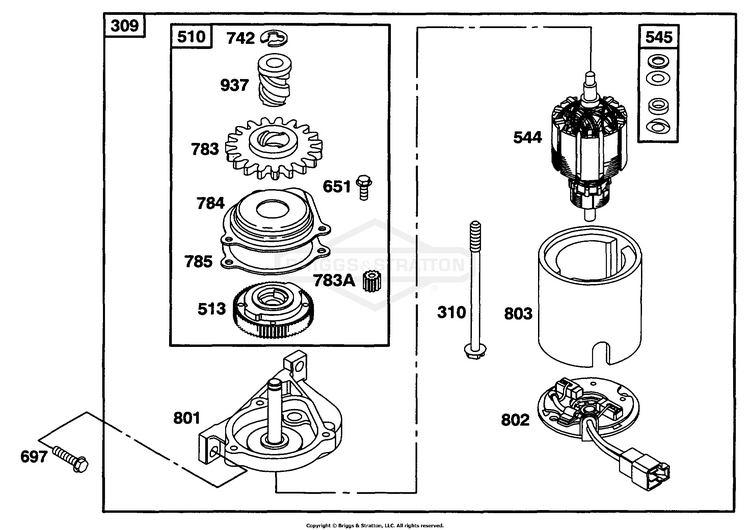

Electric Starter

...
...
309
MOTOR-STARTER BS-799045
...
310
SCREW (Starter Motor) BS-692327
...
510
DRIVE, Starter BS-494147
...
513
CLUTCH-DRIVE BS-795100
...
544
ARMATURE, Starter BS-690786
...
545
WASHER (Starter Motor) BS-492919
...
651
SCREW (Breather Assembly) BS-690345
...
697
SCREW BS-691127
...
742
RETAINER, E Ring BS-93941
...
783A
GEAR-PINION BS-795096
...
783
GEAR-PINION BS-795099
...
784
COVER, Starter Gear BS-692341
...
785
GASKET-STARTER COVER BS-692352
...
801
CAP, Drive BS-690782
...
802
CAP, End BS-690787
...
803
HOUSING, Starter BS-690785
...
937
SPLINE-STARTER BS-795098
Schematic Image Zoomed
