product name

12T807-0869-99 Briggs and Stratton Engine

Model: 12T807-0869-99

Back To Assemblies

Save Part Not Listed?
product name

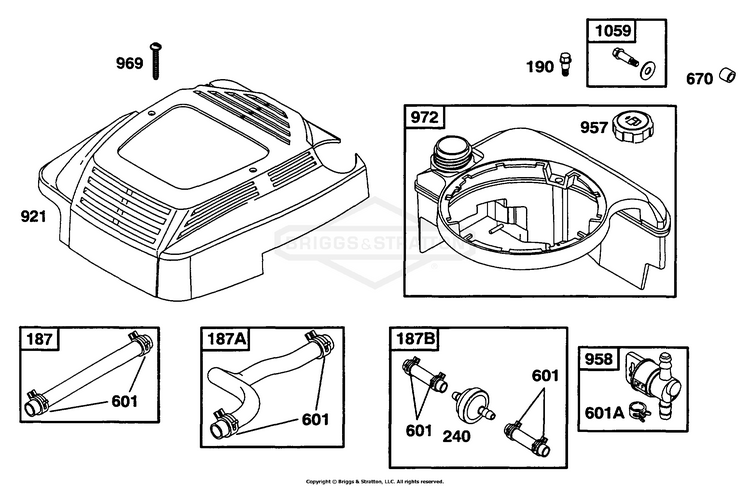

Fuel Tank Assy

...
...
187A
LINE-FUEL (Molded) BS-791873
...
187B
LINE-FUEL BS-791891
...
187
LINE, Fuel (Cut To Required Length) BS-791766
...
190
SCREW BS-690940
...
240
FILTER, Fuel BS-298090S
...
601A
CLAMP, Hose BS-691038
...
601
CLAMP, Hose (Red) BS-791850
...
670
SPACER, Fuel Tank BS-692294
...
921
COVER-BLOWER HSG BS-497233
...
957
CAP-FUEL TANK (Plastic) BS-796577
...
958
VALVE, Fuel Shut Off (Upper) BS-698183
...
969
SCREW (Blower Housing) BS-690700
...
972
TANK, Fuel (1.6 Quart) (Black) BS-699374
...
1059
KIT, Screw/Washer BS-692311
