12T807-0869-99 Briggs and Stratton Engine

Model: 12T807-0869-99

Back To Assemblies

Save Part Not Listed?
product name

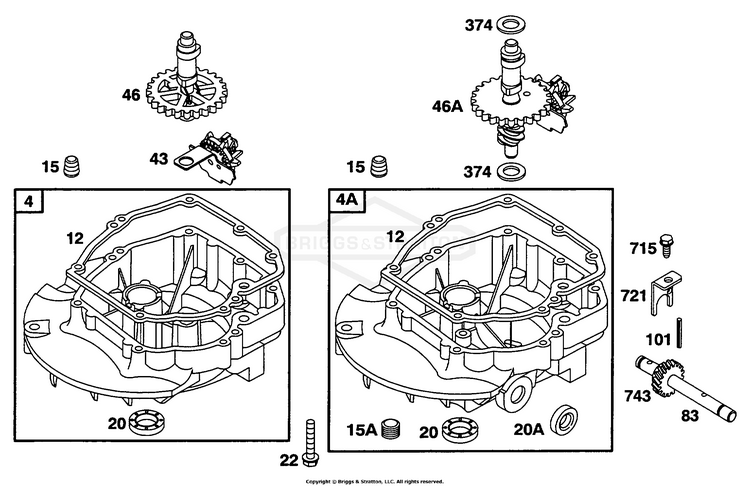

Sump Bases, Cams

...
...
4A
SUMP, Engine (Right Angle Drive) BS-493365
...
4
SUMP, Engine BS-84007233
...
12
GASKET, Crankcase BS-692232
...
15A
PLUG, Oil Drain BS-691093
...
15
PLUG, Oil Drain BS-691680
...
20A
SEAL, Oil (1/2 Auxiliary Drive Shaft) BS-691952
...
20
SEAL, Oil (PTO Side) BS-399781S
...
22
SCREW BS-691092
...
43
SLINGER, Governor/Oil BS-691997
...
46A
CAMSHAFT (Counterclockwise) BS-493738
...
46A
CAMSHAFT (Counterclockwise) BS-691459
...
46
CAMSHAFT BS-691449
...
46
CAMSHAFT BS-691449
...
83
SHAFT, Auxiliary Drive BS-691778
...
101
PIN, Starter Grip BS-262626
...
101
PIN, Shaft BS-691623
...
374
WASHER (Camshaft) BS-691074
...
715
SCREW BS-691693
...
721
STOP, Shaft BS-690449
...
743
GEAR, Drive (Counterclockwise) BS-691772
