12G612-0110-E1 Briggs and Stratton Engine

Model: 12G612-0110-E1

Save Part Not Listed?
product name

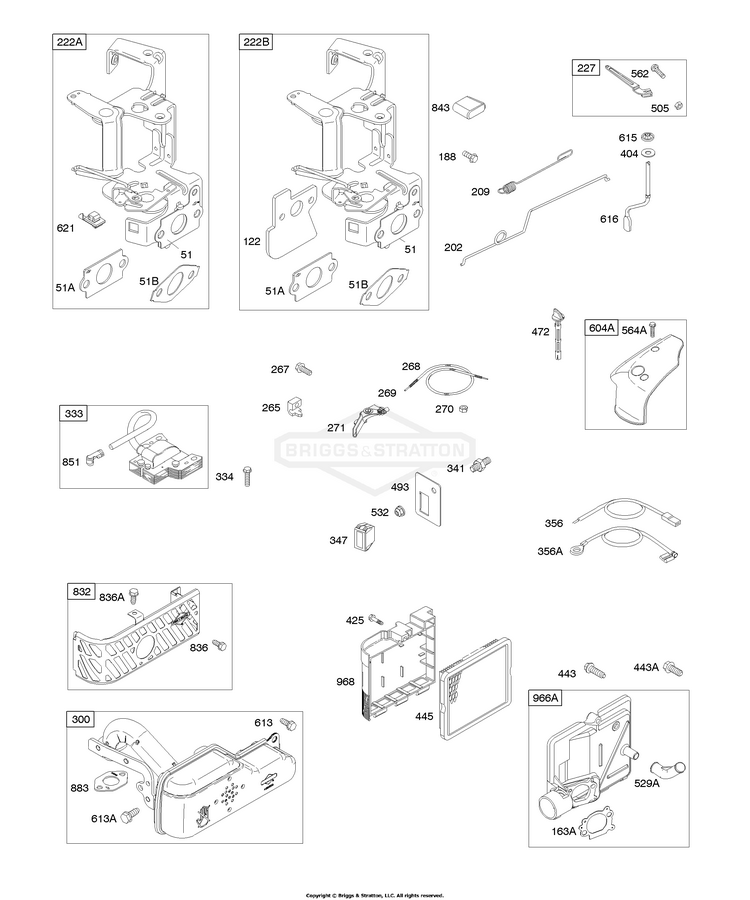

Air Cleaner, Controls, Exhaust System, Governor Spring, Ignition

...
...
51
GASKET, Intake BS-692668
...
51A
GASKET, Intake BS-697735
...
51B
GASKET, Intake (2 Required) BS-692555
...
122
SPACER, Carburetor BS-692799
...
163A
GASKET, Air Cleaner (Air Cleaner) BS-692667
...
188
SCREW (Control Bracket) BS-691147
...
202
LINK, Mechanical Governor BS-691303
...
209
SPRING, Governor BS-691290
...
222A
BRACKET, Control Used Before Code Date 05110200 BS-693378
...
222A
BRACKET, Control Used After Code Date 05110100 BS-792402
...
222B
BRACKET, Control Used Before Code Date 05110200 BS-693897
...
222B
BRACKET, Control Used After Code Date 05110100 BS-792396
...
227
LEVER, Governor Control BS-691467
...
265
CLAMP, Casing BS-690798
...
267
SCREW (Casing Clamp) BS-691044
...
268
CASING, Control Wire (Cut To Required Length) BS-691025
...
269
WIRE, Control (Cut To Required Length) BS-26634
...
270
NUT (Control Wire Casing) BS-691027
...
271
LEVER, Control BS-691028
...
300
MUFFLER BS-697590
...
333
ARMATURE-MAGNETO BS-590454
...
334
SCREW (Magneto Armature) BS-691061
...
341
STUD (Mounting Bracket) BS-690368
...
347
SWITCH, Rocker BS-691396
...
356
WIRE, Stop BS-692390
...
356A
WIRE, Stop BS-693010
...
404
WASHER (Governor Crank) BS-690272
...
425
SCREW (Air Cleaner Cover) BS-690670
...
443
SCREW (Air Cleaner Primer Base) BS-691637
...
443A
SCREW (Air Cleaner Primer Base) BS-692523
...
445
FILTER, A/C Cartridge BS-491588S
...
472
KNOB, Choke Shaft BS-693809
...
493
BRACKET, Mounting BS-692877
...
505
NUT (Governor Control Lever) BS-691251
...
529A
TUBE, Breather BS-691923
...
532
NUT (Mounting Bracket) BS-692851
...
562
BOLT (Governor Control Lever) BS-691119
...
564A
SCREW (Control Cover) BS-693808
...
604A
COVER, Control BS-693807
...
613
SCREW (Muffler) BS-691108
...
613A
SCREW (Muffler) BS-691140
...
615
RETAINER, Governor Shaft BS-690340
...
616
CRANK, Governor BS-698801
...
621
SWITCH, Stop BS-692310
...
832
GUARD-MUFFLER BS-691466
...
836
SCREW (Muffler Guard) BS-691147
...
836A
SCREW (Muffler Guard) BS-691108
...
843
SLEEVE, Lever BS-691884
...
851
TERMINAL, Spark Plug BS-493880S
...
883
GASKET-EXHAUST BS-691893
...
966A
BASE, Air Cleaner (Primer) (Choke) BS-693863
...
968
COVER, Air Cleaner BS-692298

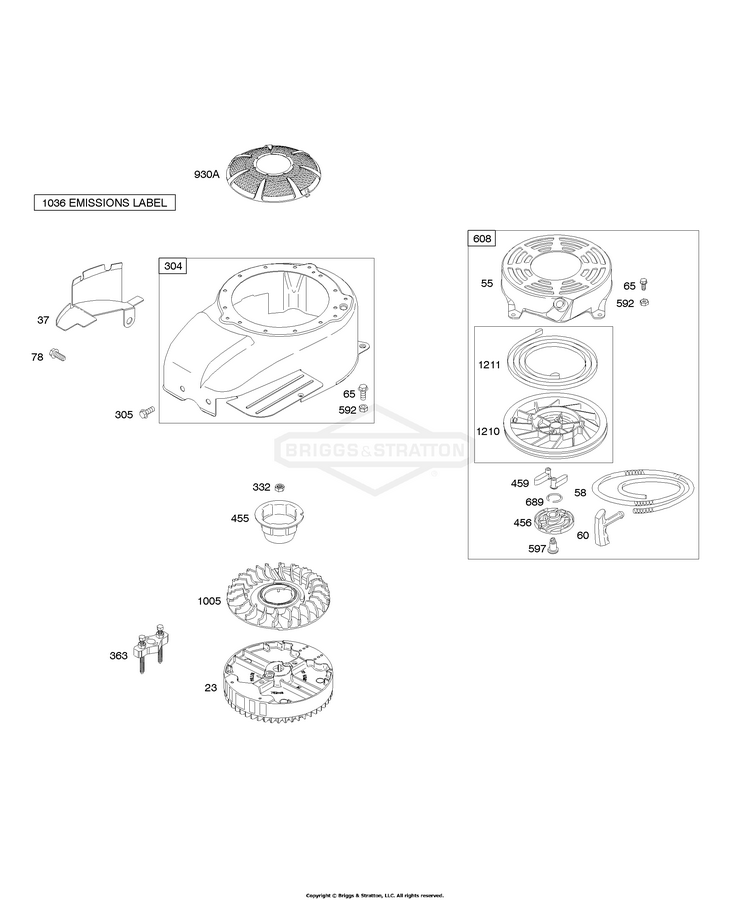

Blower Housing/Shrouds, Flywheel, Rewind Starter

...
...
23
FLYWHEEL BS-699488
...
37
GUARD-FLYWHEEL BS-793756
...
55
HOUSING, Rewind Starter BS-691421
...
58
ROPE, Starter (Cut To Required Length) BS-697316
...
60
GRIP, Starter Rope BS-281434S
...
65
SCREW (Rewind Starter) BS-690837
...
78
SCREW (Flywheel Guard) BS-691108
...
304
HOUSING, Blower BS-499676
...
305
SCREW (Blower Housing) BS-691108
...
332
NUT (Flywheel) BS-690662
...
363
PULLER, Flywheel BS-19069
...
455
CUP, Flywheel BS-791960
...
456
PLATE-PAWL FRICTION BS-692299
...
459
PAWL-RATCHET BS-281505S
...
592
NUT (Rewind Starter) BS-690800
...
597
SCREW (Pawl Friction Plate) BS-691696
...
608
STARTER, Rewind BS-497680
...
689
SPRING-FRICTION BS-691855
...
930A
GUARD, Rewind BS-692675
...
1005
FAN, Flywheel BS-691346
...
1210
PULLEY/SPRING ASSY (Pulley) BS-498144
...
1211
PULLEY/SPRING ASSY (Spring) BS-498144

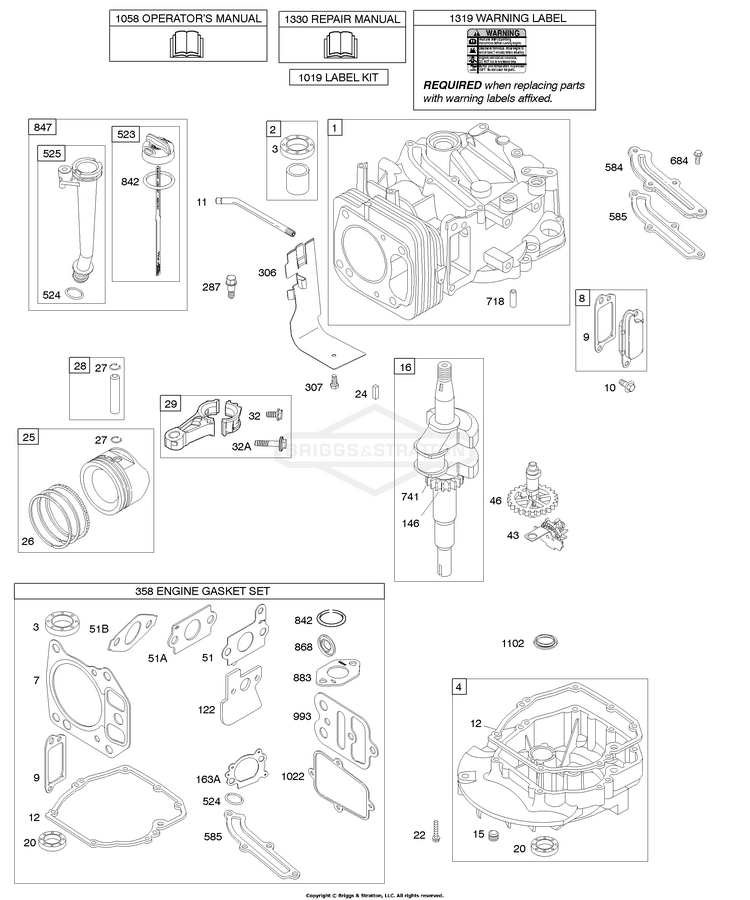

Camshaft, Crankshaft, Cylinder, Engine Sump, Lubrication, Piston Group

...
...
1
CYLINDER ASSEMBLY BS-697893
...
2
KIT, Bushing/Seal (Magneto Side) BS-796961
...
3
SEAL, Oil (Magneto Side) BS-299819S
...
4
SUMP, Engine BS-498983
...
7
GASKET-CYLINDER HEAD BS-697230
...
8
BREATHER ASSEMBLY BS-590395
...
9
GASKET-BREATHER BS-699833
...
10
SCREW (Breather Assembly) BS-691125
...
11
TUBE-BREATHER BS-691781
...
12
GASKET, Crankcase BS-692232
...
15
PLUG, Oil Drain (Square Socket) BS-691680
...
16
CRANKSHAFT BS-691457
...
20
SEAL, Oil (PTO Side) BS-399781S
...
22
SCREW (Crankcase Cover/Sump) BS-691092
...
24
KEY, Flywheel BS-222698S
...
25
PISTON ASSEMBLY (.020 Oversize) Used Before Code Date 07090400 BS-799064
...
25
PISTON ASSEMBLY (Standard) Used Before Code Date 07090400 BS-799063
...
25
PISTON ASSEMBLY (Standard) Used After Code Date 07090300 BS-799063
...
25
PISTON ASSEMBLY (.020 Oversize) Used After Code Date 07090300 BS-799064
...
26
RING SET (Standard) Used After Code Date 07090300 BS-795431
...
26
SET, Ring (.020 Oversize) Used After Code Date 07090300 BS-795432
...
26
SET, Ring (Standard) Used Before Code Date 04040500 BS-499631
...
26
SET, Ring (.020 Oversize) Used Before Code Date 04102200 BS-692786
...
26
SET, Ring (.020 Oversize) Used After Code Date 04102100 Used Before Code Date 07090400 BS-791324
...
26
SET, Ring (Standard) Used After Code Date 04040400 Used Before Code Date 07090400 BS-791969
...
27
LOCK-PISTON PIN BS-691866
...
28
PIN-PISTON/STD (Standard) BS-499423
...
29
PISTON ASSEMBLY (Standard) BS-590406
...
32
SCREW (Connecting Rod) BS-691664
...
32A
SCREW (Connecting Rod) BS-695759
...
43
SLINGER, Governor/Oil BS-691997
...
46
CAMSHAFT BS-694039
...
51
GASKET, Intake BS-692668
...
51A
GASKET, Intake BS-697735
...
51B
GASKET, Intake (2 Required) BS-692555
...
122
SPACER, Carburetor BS-692799
...
146
KEY, Woodruff BS-690979
...
163A
GASKET, Air Cleaner (Air Cleaner) BS-692667
...
287
SCREW (Dipstick Tube) BS-690940
...
306
SHIELD-CYLINDER BS-691232
...
307
SCREW (Cylinder Shield) BS-690345
...
358
GASKET SET-ENGINE BS-795442
...
523
DIPSTICK BS-499621
...
524
SEAL-DIPSTICK TUBE (Dipstick Tube) BS-692296
...
525
TUBE, Dipstick BS-495265
...
584
COVER-BREA PASSAGE BS-697734
...
585
GASKET-BREA PASSAGE BS-691879
...
684
SCREW (Breather Passage Cover) BS-690345
...
718
PIN, Locating BS-690959
...
741
GEAR-TIMING (Uses Woodruff Key) BS-691830
...
741
GEAR, Timing (Use Without Woodruff Key) Used Before Code Date 07100100 BS-790345
...
741
GEAR, Timing (Use Without Woodruff Key) Used After Code Date 07093000 BS-794388
...
842
SEAL, O-Ring (Dipstick Tube) BS-691031
...
847
DIPSTICK/TUBE ASSY BS-692047
...
868
SEAL-VALVE BS-795440
...
883
GASKET-EXHAUST BS-691893
...
993
GASKET, Cylinder Head Plate BS-694088
...
1019
KIT, Label BS-695247
...
1022
GASKET-ROCKER COVER BS-691890
...
1058
MANUAL, Operator's BS-277102
...
1102
PILOT, Guide BS-691255
...
1319
LABEL, Warning BS-794467
...
1330
MANUAL, Repair BS-272147

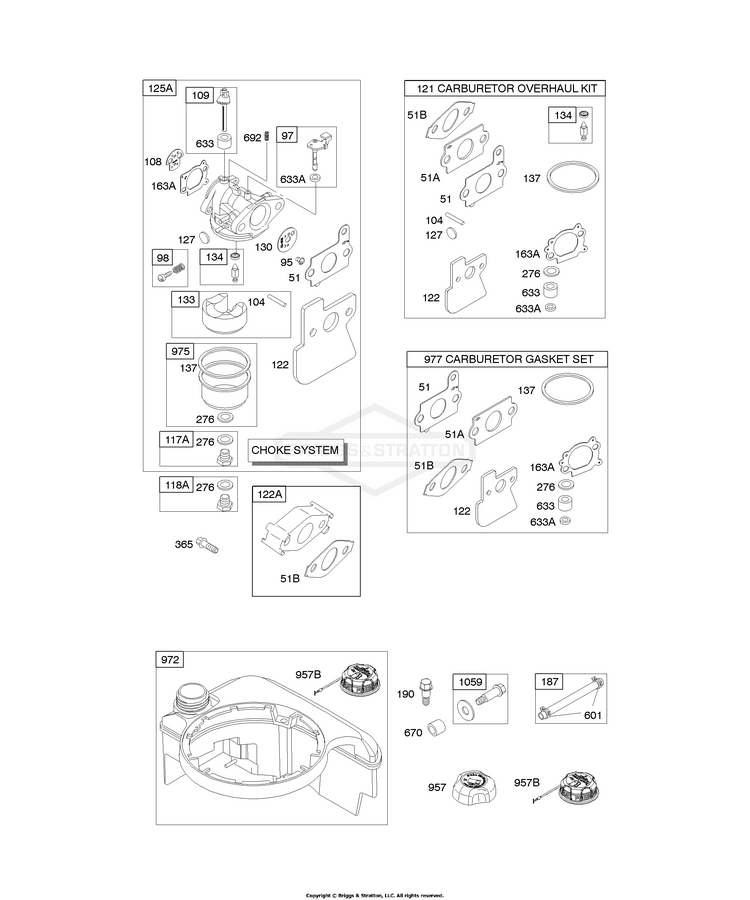

Carburetor, Fuel Supply

...
...
51
GASKET, Intake BS-692668
...
51A
GASKET, Intake BS-697735
...
51B
GASKET, Intake (2 Required) BS-692555
...
95
SCREW (Throttle Valve) BS-691636
...
97
SHAFT, Throttle BS-499682
...
98
KIT-IDLE SPEED (Idle Speed) (Lmt 26, 27, 28, 31) BS-398185
...
104
PIN, Float Hinge BS-797622
...
108
VALVE-CHOKE BS-692567
...
109
SHAFT, Choke BS-693866
...
117A
JET, Main (Standard) BS-498976
...
118A
JET, Main (High Altitude) BS-694975
...
121
KIT, Carburetor Overhaul BS-792383
...
122
SPACER, Carburetor BS-692799
...
122A
SPACER, Carburetor BS-792382
...
125A
CARBURETOR BS-698953
...
127
PLUG, Welch (Bowl Vent) BS-694468
...
130
VALVE-THROTTLE BS-691181
...
133
FLOAT-CARBURETOR BS-398187
...
134
KIT-NEEDLE/SEAT BS-398188
...
137
GASKET-FLOAT BOWL BS-693981
...
163A
GASKET, Air Cleaner (Air Cleaner) BS-692667
...
187
LINE, Fuel (Cut To Required Length) BS-791766
...
190
SCREW (Fuel Tank) BS-690940
...
276
WASHER-SEALING BS-271716
...
365
SCREW (Carburetor) Used After Code Date 05110100 BS-691129
...
365
SCREW (Carburetor) Used Before Code Date 05110200 BS-691148
...
601
CLAMP, Hose BS-791850
...
633
SEAL, Choke/Throttle Shaft BS-693867
...
633A
SEAL, Choke/Throttle Shaft (Throttle Shaft) BS-691321
...
670
SPACER, Fuel Tank BS-692294
...
692
SPRING, Detent BS-590931
...
957
CAP, Fuel Tank (Plastic) BS-692046
...
957B
CAP-FUEL TANK (Plastic) BS-796577
...
972
TANK, Fuel (Plastic) BS-699374
...
975
BOWL, Float BS-796611
...
977
KIT, Carburetor Overhaul BS-792383
...
1059
KIT, Screw/Washer BS-692311

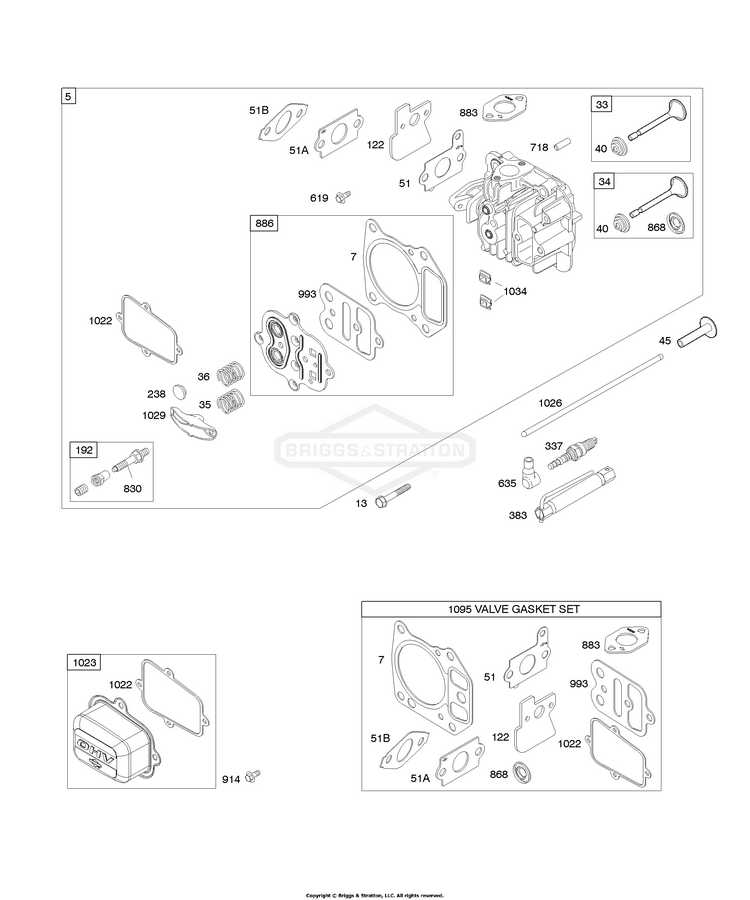

Cylinder Head

...
...
5
HEAD-CYLINDER Used After Code Date 05110100 BS-799072
...
5
HEAD-CYLINDER Used Before Code Date 05110200 BS-799072
...
7
GASKET-CYLINDER HEAD BS-697230
...
13
SCREW (Cylinder Head) BS-592244
...
33
VALVE, Exhaust BS-499642
...
34
VALVE, Intake BS-795443
...
35
SPRING, Valve (Intake) BS-691304
...
36
SPRING, Valve (Exhaust) BS-691304
...
40
RETAINER, Valve BS-692194
...
45
TAPPET, Valve BS-690977
...
51
GASKET, Intake BS-692668
...
51A
GASKET, Intake BS-697735
...
51B
GASKET, Intake (2 Required) BS-692555
...
122
SPACER, Carburetor BS-692799
...
192
ADJUSTER-ROCKER ARM BS-694543
...
238
CAP, Valve BS-691300
...
337
PLUG, Spark BS-692051
...
383
WRENCH, Spark Plug BS-19576S
...
619
SCREW (Cylinder Head Plate) BS-691108
...
635
BOOT, Spark PLug BS-66538S
...
718
PIN, Locating BS-690959
...
830
STUD-ROCKER ARM (Rocker Arm) BS-694544
...
868
SEAL-VALVE BS-795440
...
883
GASKET-EXHAUST BS-691893
...
886
KIT, Cylinder Head/Plate Gasket BS-696268
...
914
SCREW (Rocker Cover) BS-691108
...
993
GASKET, Cylinder Head Plate BS-694088
...
1022
GASKET-ROCKER COVER BS-691890
...
1023
COVER, Rocker BS-499624
...
1026
ROD-PUSH BS-795444
...
1029
ARM, Rocker BS-691230
...
1034
GUIDE, Push Rod BS-691343
...
1095
GASKET SET-VALVE BS-795441

Replacement Engine - US & Canada

...

No Parts Available for this Schematic
