12E802-1108-01 Briggs and Stratton Engine

Model: 12E802-1108-01

Back To Assemblies

Save Part Not Listed?
product name

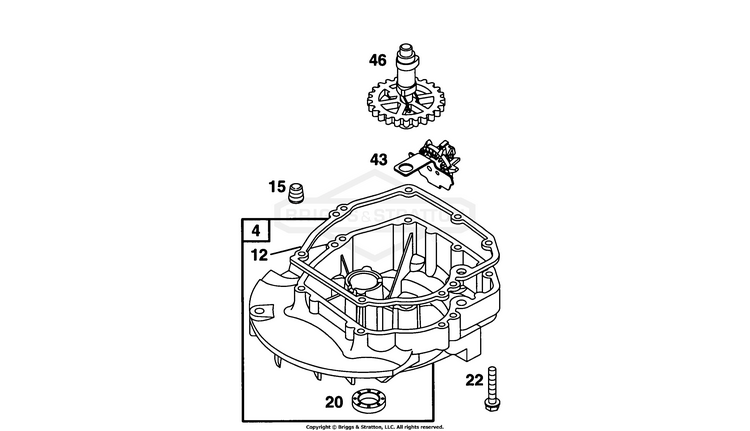

Sump Base, Cam

...
...
4
SUMP, Engine BS-84007233
...
12
GASKET, Crankcase Included in Gasket Set-Ref. No. 358 BS-692232
...
15
PLUG, Oil Drain (Flush) BS-691680
...
20
SEAL, Oil Included in Gasket Set-Ref. No. 358 BS-399781S
...
22
SCREW BS-691092
...
22
SCREW (Crankcase Cover) (Hole Nearest Breather) BS-691092
...
43
SLINGER, Governor/Oil BS-691997
...
46
CAMSHAFT Used Before Code Date 96060300 BS-691449
...
46
CAMSHAFT BS-691449
