12E782-0688-01 Briggs and Stratton Engine

Model: 12E782-0688-01

Back To Assemblies

Save Part Not Listed?
product name

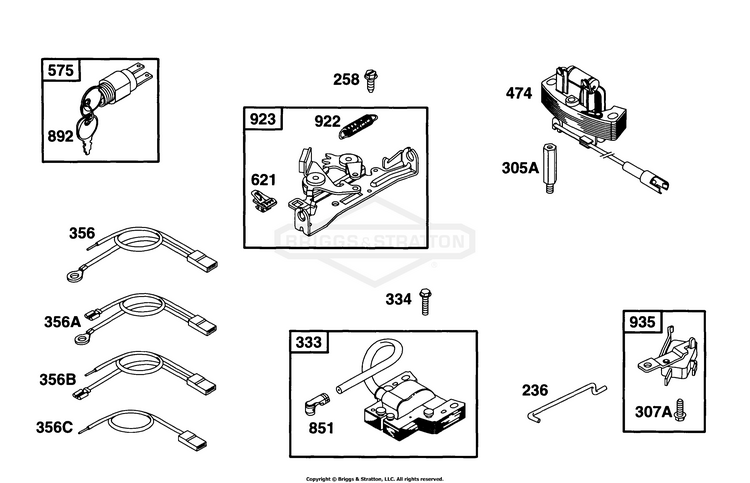

Controls, Brake, Elect

...
...
258
SCREW (Tapping) BS-691648
...
305A
STUD BS-691094
...
307A
SCREW (Rotating Screen) BS-690345
...
333
ARMATURE-MAGNETO BS-590454
...
334
SCREW (Magneto) BS-691061
...
356C
WIRE, Stop BS-692390
...
356B
WIRE, Stop BS-690808
...
356A
WIRE, Stop BS-690650
...
356
WIRE, Stop (Cut To Required Length) BS-398808
...
474
ALTERNATOR BS-691991
...
621
SWITCH, Stop BS-692310
...
851
TERMINAL, Spark Plug BS-493880S
...
892
SWITCH, Key BS-690646
...
922
SPRING-BRAKE BS-691831
...
923
BRAKE BS-796387
...
935
SWITCH, Interlock (12 Volt) BS-499421
...
935
SWITCH, Interlock BS-499421
