1293-2 Briggs and Stratton Pressure Washer 2,700 PSI

Model: 1293-2

Back To Assemblies

Save Part Not Listed?
product name

Pump

...
...
1
CRNKCS BS-10092293PGS
...
2
PLUG BS-10192293PGS
...
3
O-RING BS-10292293PGS
...
4
PROTECTOR BS-10392293PGS
...
5
SEAL, OIL BS-104B3169GS
...
6
PLUG BS-10492293PGS
...
8
WASHER BS-10692293PGS
...
9
SCREW BS-10792293PGS
...
10
O-RING BS-108B3169GS
...
11
SEAT, VLV BS-109B3169GS
...
12
PLATE, VLV BS-110B3169GS
...
13
SPRING BS-111B3169GS
...
14
O-RING BS-112B3169GS
...
15
O-RING BS-10892293PGS
...
16
CAP, VLV BS-114B3169GS
...
17
ASSY, VLV BS-115B3169GS
...
18
RING, HEAD BS-116B3169GS
...
19
PACKING BS-117B3169GS
...
20
RETAINER, PACKING BS-118B3169GS
...
21
O-RING BS-119B3169GS
...
22
O-RING BS-120B3169GS
...
23
GAUGE, SIGHT BS-11092293PGS
...
24
BRNG, NDL BS-11192293PGS
...
25
Oil Dip Stick BS-94504
...
26
NUT, SRV BS-11292293PGS
...
27
WSHR BS-11392293PGS
...
28
PSTN BS-15092293PGS
...
29
O-RING BS-11492293PGS
...
30
RING, BACKUP BS-11592293PGS
...
31
WSHR, FLINGER BS-11692293PGS
...
32
PIN, ROD, CNNCTNG BS-11792293PGS
...
33
CVR, CRNKCS BS-11892293PGS
...
34
SCREW BS-12692293PGS
...
35
O-RING BS-12092293PGS
...
36
ROD, CNNCTNG BS-134B3169GS
...
37
GUIDE, PSTN BS-12292293PGS
...
49
SCREW BS-136B3169GS
...
50
WSHR BS-137B3169GS
...
51
FLANGE BS-138B3169GS
...
52
SCREW BS-12692293PGS
...
53
WASHER BS-10692293PGS
...
54
SPACER BS-12892293PGS
...
55
O-RING BS-12992293PGS
...
56
SEAL, OIL BS-13092293PGS
...
57
RING, SNAP BS-13192293PGS
...
58
BRNG BS-13292293PGS
...
59
CRNKSHFT BS-146B3169GS
...
60
KNOB BS-13492293PGS
...
61
SCREW BS-148B3169GS
...
62
NUT BS-149B3169GS
...
63
O-RING BS-13792293PGS
...
64
REGULATOR, PRSSR BS-13892293PGS
...
65
SEAL BS-152B3169GS
...
66
SPRING BS-14092293PGS
...
67
BSHNG BS-154B3169GS
...
68
O-RING BS-10892293PGS
...
69
STOP BS-156B3169GS
...
70
SPRING BS-157B3169GS
...
71
O-RING BS-158B3169GS
...
72
BALL BS-159B3169GS
...
73
RING, BACKUP BS-160B3169GS
...
74
O-RING BS-161B3169GS
...
75
PSTN BS-162B3169GS
...
76
RING, BACKUP BS-163B3169GS
...
77
GUIDE, VLV BS-164B3169GS
...
78
O-RING BS-165B3169GS
...
79
RING, BACKUP BS-166B3169GS
...
80
VLV BS-167B3169GS
...
81
SCREW BS-168B3169GS
...
82
SEAT, VLV BS-169B3169GS
...
83
O-RING BS-170B3169GS
...
84
NIPPLE BS-100B3169AGS
...
86
MANIFOLD, U BS-172B3169GS
...
87
CAP BS-173B3169GS
...
88
PLUG BS-10492293PGS
...
89
O-RING BS-161B3169GS
...
90
NZZL BS-14292293PGS
...
91
O-RING BS-177B3169GS
...
92
SPRING BS-178B3169GS
...
93
BALL BS-179B3169GS
...
94
O-RING BS-11492293PGS
...
95
HOSE BARB BS-197B3169GS
...
96
NUT, SRV BS-11292293PGS
...
97
HSNG, INJECTOR BS-199B3169GS
...
KIT, VLV (Includes items 10-14, (17)) BS-50092294PGS
...
KIT, SEAL, OIL (Includes item 5) BS-50092293PGS
...
KIT, O-RING (Includes items 20-22) BS-192B3169GS
...
KIT, CNTRL SET (Includes items 83, 89, 91-96) BS-50692294PGS
...
KIT, PACKING (Includes items 18-22) BS-50392293PGS
...
O-Ring (Includes items 18, 19, 21, 22) BS-195B3169
...
KIT, MNTNNC, UNLDR, TT, SRV (Includes items 67-82) BS-50592293PGS

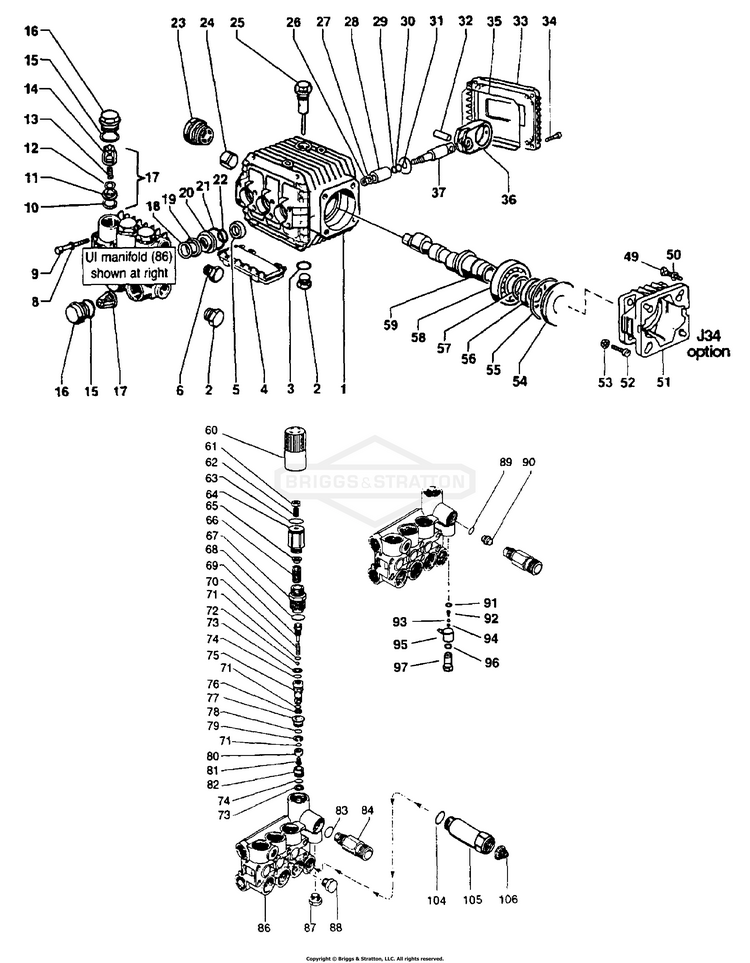

Schematic Image Zoomed
